EMKO EM-VAL-I33

Catalog number: EM-VAL-I33

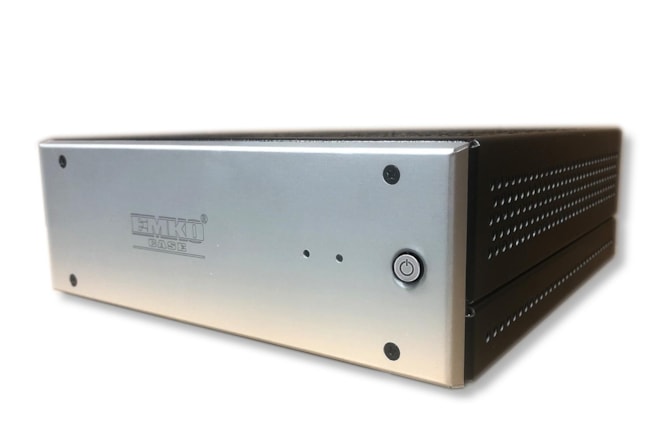

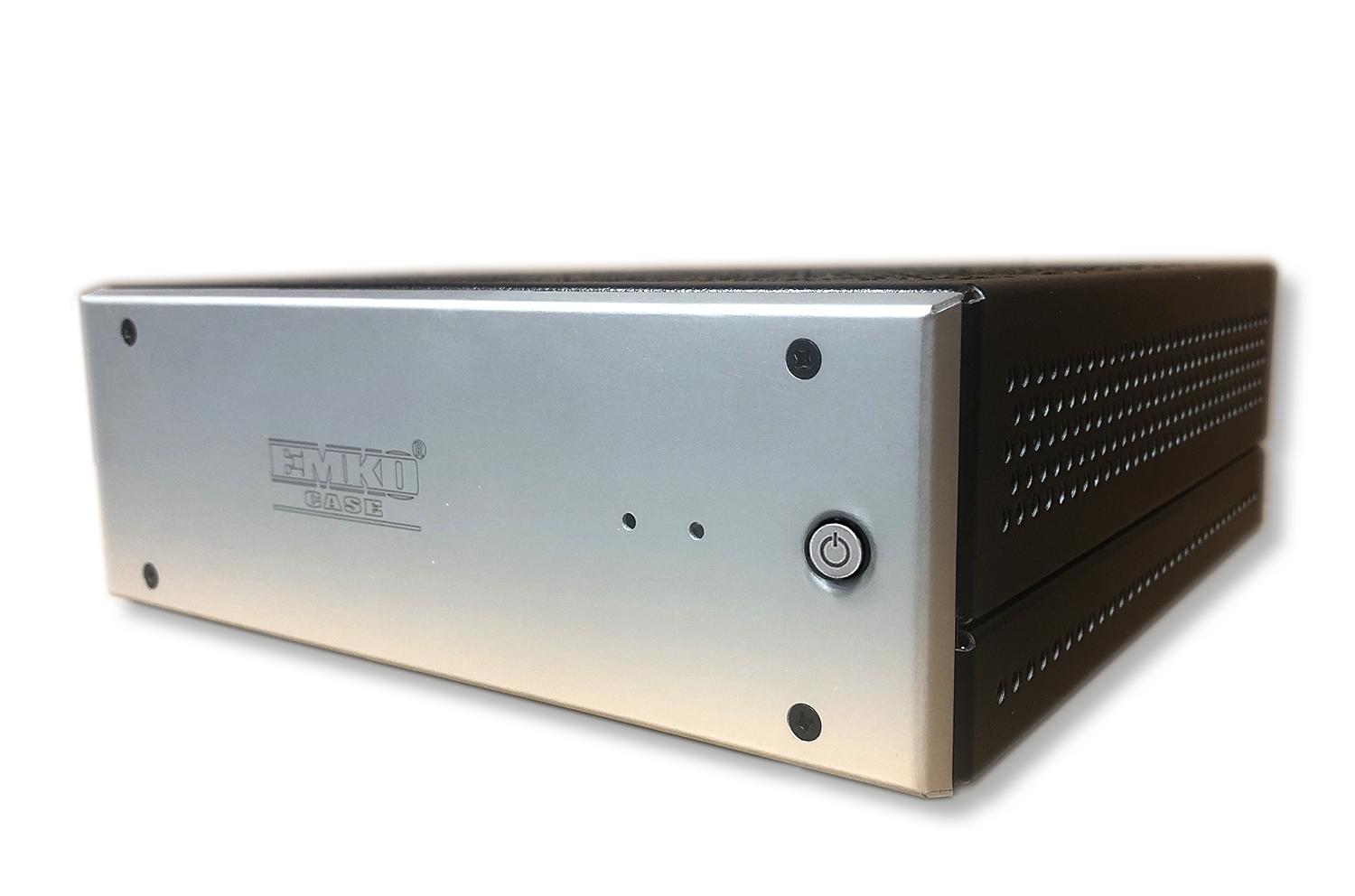

EM-VAL-I33 is a small industrial PC. It is a customized PC, made in Czech Republic.

Intel Q370, mini-ITX
Intel 8/9th gen. CPU
2xDP,DVI,2xCOM
Active 0~60°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort, DVI-D
SATA 1x, 2x, 3x, 4x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, Mini PCIe
Power Input DC 12V
Operating temperature 0~60°C
Size (L x W x H) 192 x 203 x 68mm
Market Industrial
Form Factor Mini-ITX
Power Input Dual DC 12V / ATX
Processor Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series

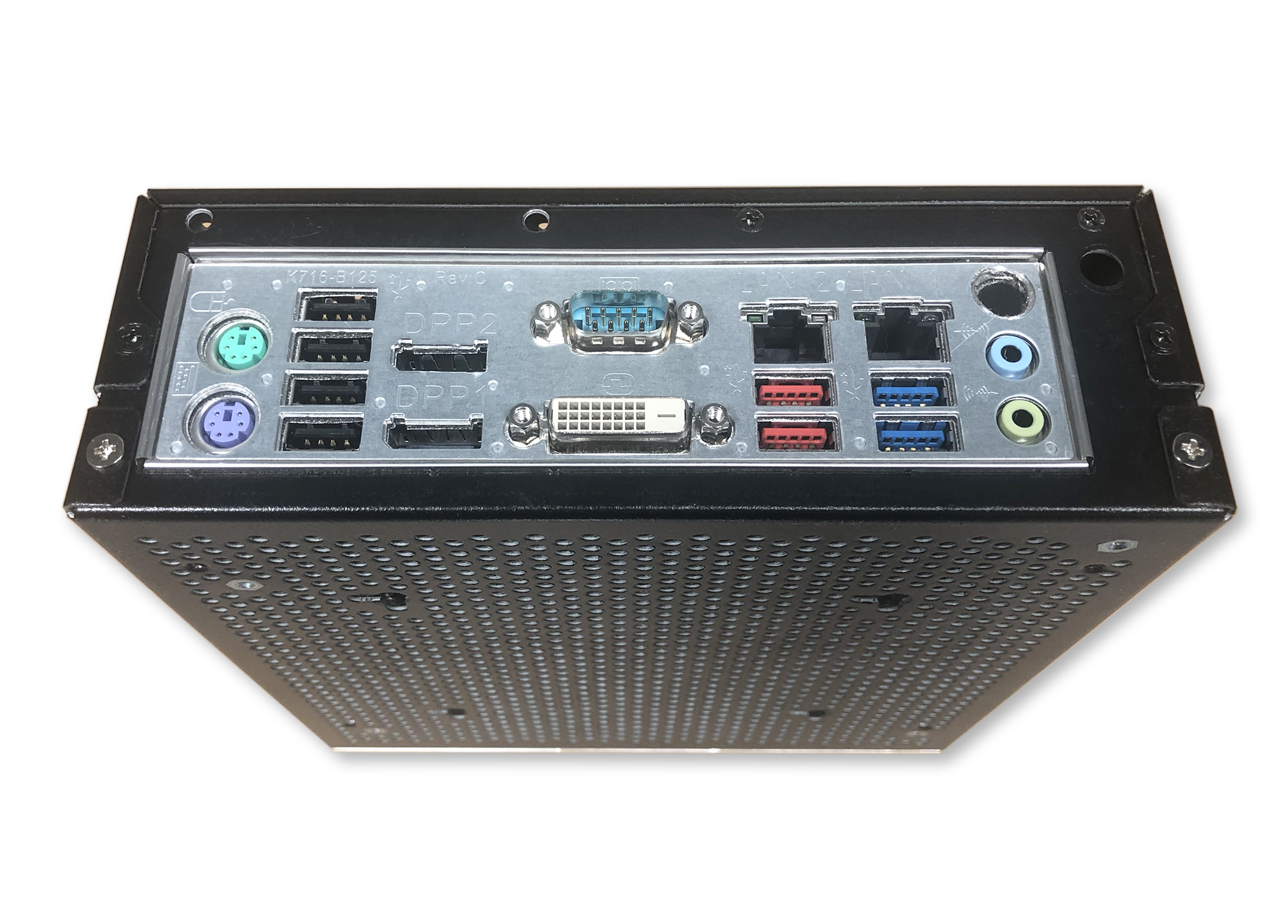

LAN/USB/COM 2x RJ45, 4x USB 3.1 Gen1 (2x optional), 2x USB 3.1 Gen2, 6x USB 2.0 (2x opt.), 2x COM (1x opt.), 2x PS/2
Interface 4x SATA III 6Gb/s, 1x M.2 2280/2260/2242 (PCIe NVME)
Size 192 × 203 × 68mm
Operating temperature Active 0 ~ 60°C
Memory type DDR4-2666
DDR 2x SO-DIMM

Mainboard:

  • Fujitsu D3633-S, mini-ITX, 24/7 Industrial series

Procesor:

  • Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors
  • Intel® Pentium® / Intel® Celeron® processor series
  • Socket LGA1151
  • up to TDP 65W

Memory:

  • DDR4 2666MHz

  • 2x SO-DIMM socket, max. 64GB

Product features:

  • Supports 3 display configuration by 2x DisplayPort v1.2, 1x DVI-D
  • 1x COM1 (RS 232) included, COM2 (RS 232/422/485) optional
  • Supporting Intel AMT 12.0 / vPro
  • 4x SATA III including RAID 0/1/5/10
  • Galvanized metal sheet chassis, ALU front panel (bended or milled) with custom logo (silk print or laser), color black / white / silver, size 192 × 203 × 68mm
  • Operating temperature range endurance: 0~60°C with active fan
  • Vesa / Wall mounting options
