EMKO FTS-S500

Catalog number: Smartcase_S500

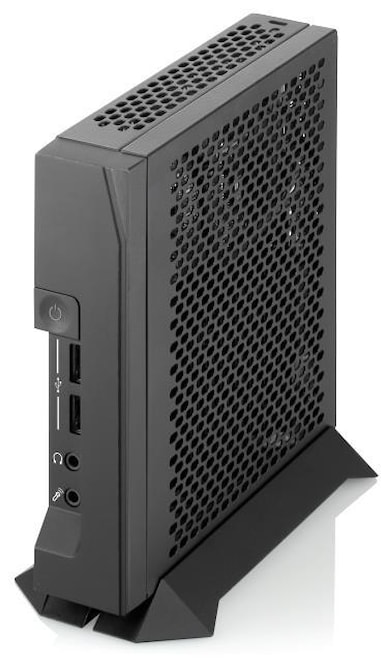

FTS-S500 is a small industrial PC with D3544-Sx motherboard from Kontron.

Intel Gemini Lake SoC
2xDP,2xLAN,USB-C,COM
Fanless/Active,0.87l
Wide Temp -30~50°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 8-24V
Operating temperature 0~40℃, 0~50℃
Size (L x W x H) 36 x 147 x 165 mm
Market Digital Signage
Form Factor Mini-STX
Power Input DC 8-24V
Processor Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)

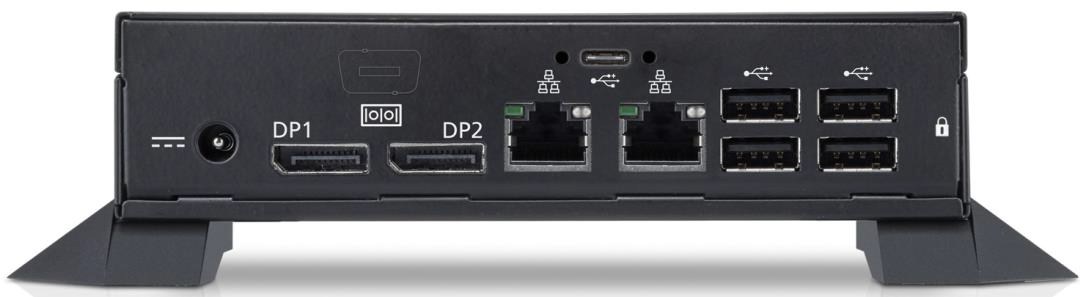

LAN/USB/COM 2x RJ45, 2x USB 3.1 Gen1, 4x USB 2.0, 1x USB 3.1 Type-C option, 1x COM option
Interface 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230 for WiFi/BT module
Size 147 × 165 × 36mm
Operating temperature Active -30 ~ 50°C / passive -30 ~ 40°C
Memory type DDR4-2400
DDR SO-DIMM

Mainboard:

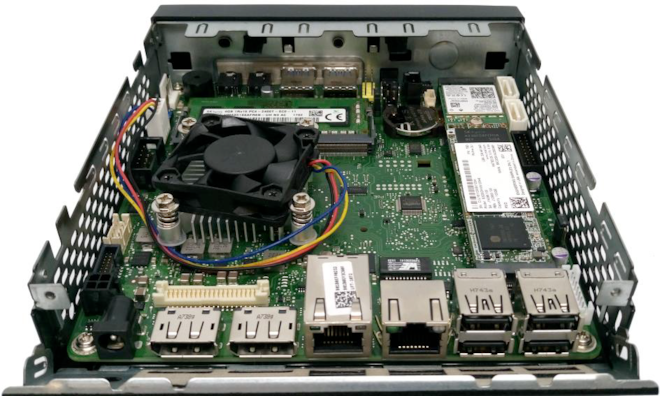

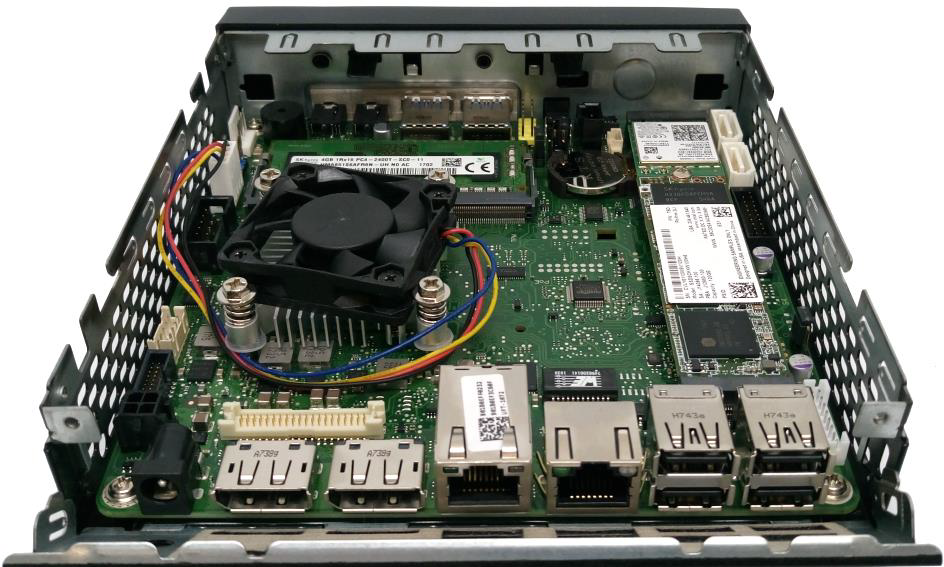

  • Kontron D3544-Sx, mini-STX, 24/7 industrial series (Designed by Fujitsu)

Processor:

  • Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
  • integrated Intel® UHD Graphics 600 / 605
  • TDP 10W

Memory:

  • DDR4 2400MHz

  • 1x SO-DIMM socket

Product features:

  • Supports 2 display configuration by 2x DisplayPort
  • 1x COM1 (RS 232/422/485) optional
  • Internal Wi-Fi M.2 module incl. 2x antenna (optional)

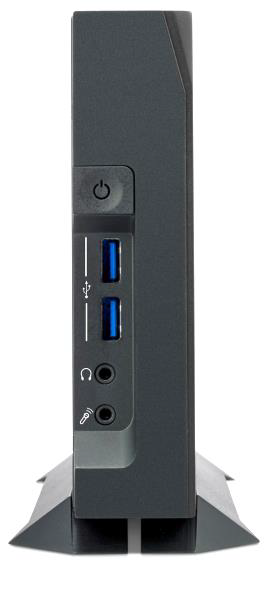

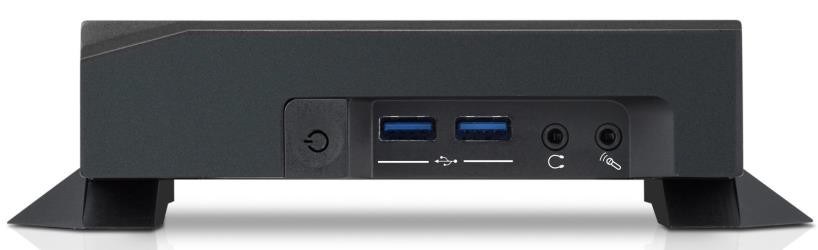

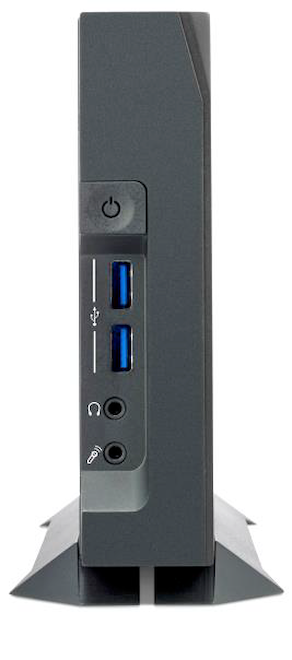

  • Galvanized metal sheet chassis, plastic front panel, colour black, size 147 × 165 × 36mm
  • Operating temperature range endurance: -30 ~ +50°C with active fan / -30 ~ +40°C with passive heatsink
  • Vesa / Wall mounting options
