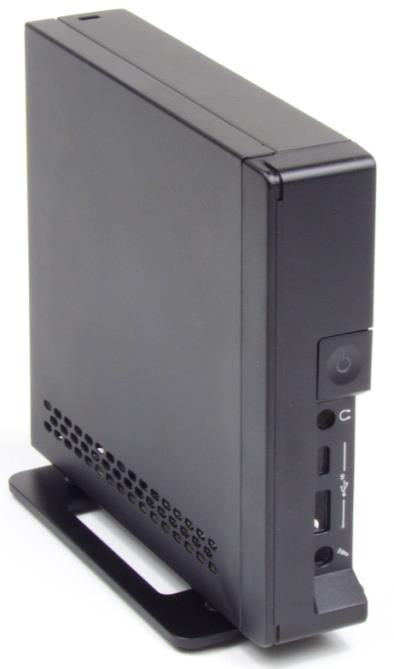

EMKO FTS-S520

Catalog number: Smartcase_S520

FTS-S520 is a small industrial PC with D3654-B motherboard from Kontron. This PC is used in digital signage.

Intel H310
Intel 8/9th gen. CPU
DP, HDMI, LAN, WiFi
Active, 0.87 litres

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output HDMI, DisplayPort
SATA 1x
Software support Linux, Windows
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 19V
Operating temperature 0~40℃
Size (L x W x H) 147 x 165 x 36mm
Market Digital Signage
Form Factor Mini-STX
Power Input DC 19V
Processor Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series

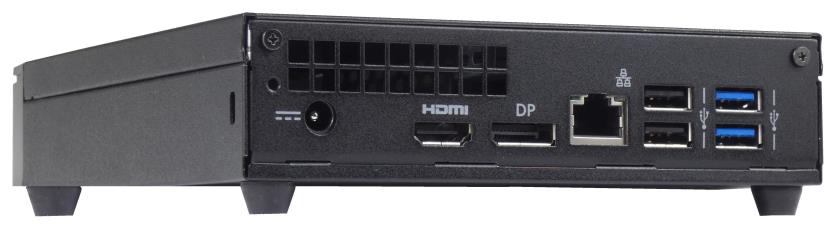

LAN/USB/COM 1x RJ45, 3x USB 3.1 Gen1, 2x USB 2.0, 1x USB 3.1 Type-C
Interface 1x SATA III 6Gb/s, 1x M.2 2280 (PCIe NVME), 1x M.2 2230 for WiFi/BT module
Size 147 × 165 × 36mm
Operating temperature Active 0 ~ 40°C
Memory type DDR4-2666
DDR 2x SO-DIMM

Mainboard:

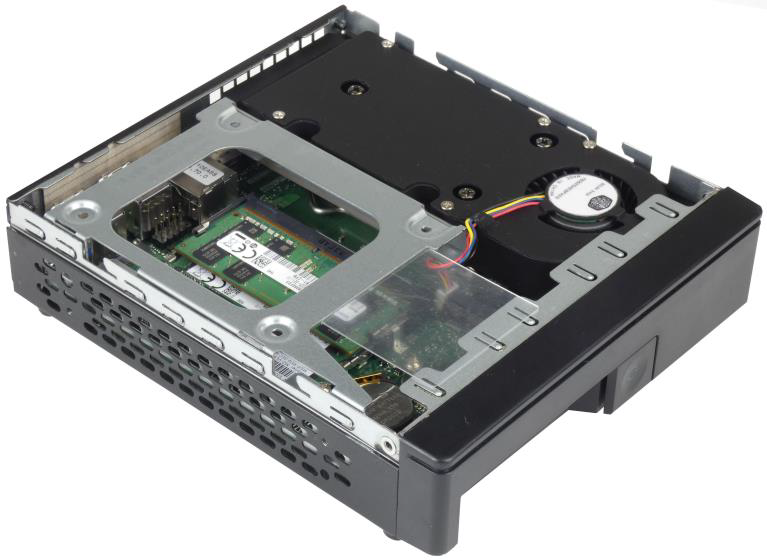

  • Kontron D3654-B, mini-STX, 24/7 Extended lifecycle series (Designed by Fujitsu)

Processor:

  • Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors, Intel® Pentium / Celeron Processors
  • Socket LGA1151
  • TDP 35W

Memory:

  • DDR4 2666MHz

  • 2x SO-DIMM socket max. 32GB

Product features:

  • Supports 2 display configuration by 1x DisplayPort / 1x HDMI
  • Internal Wi-Fi M.2 module incl. 2x antenna (optional)

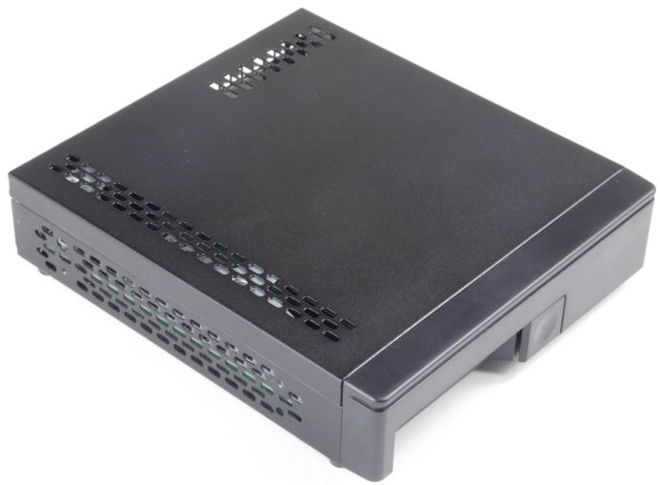

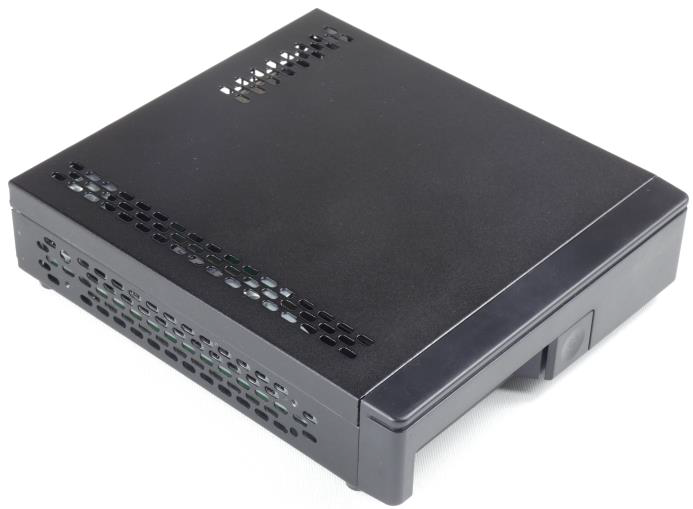

  • Galvanized metal sheet chassis, plastic front panel, colour black, size 147 × 165 × 36mm
  • Operating temperature range endurance: 0~40°C with active fan
  • Vesa / Wall mounting options
