    EMKO S502

    Catalog number: Smartcase_S502

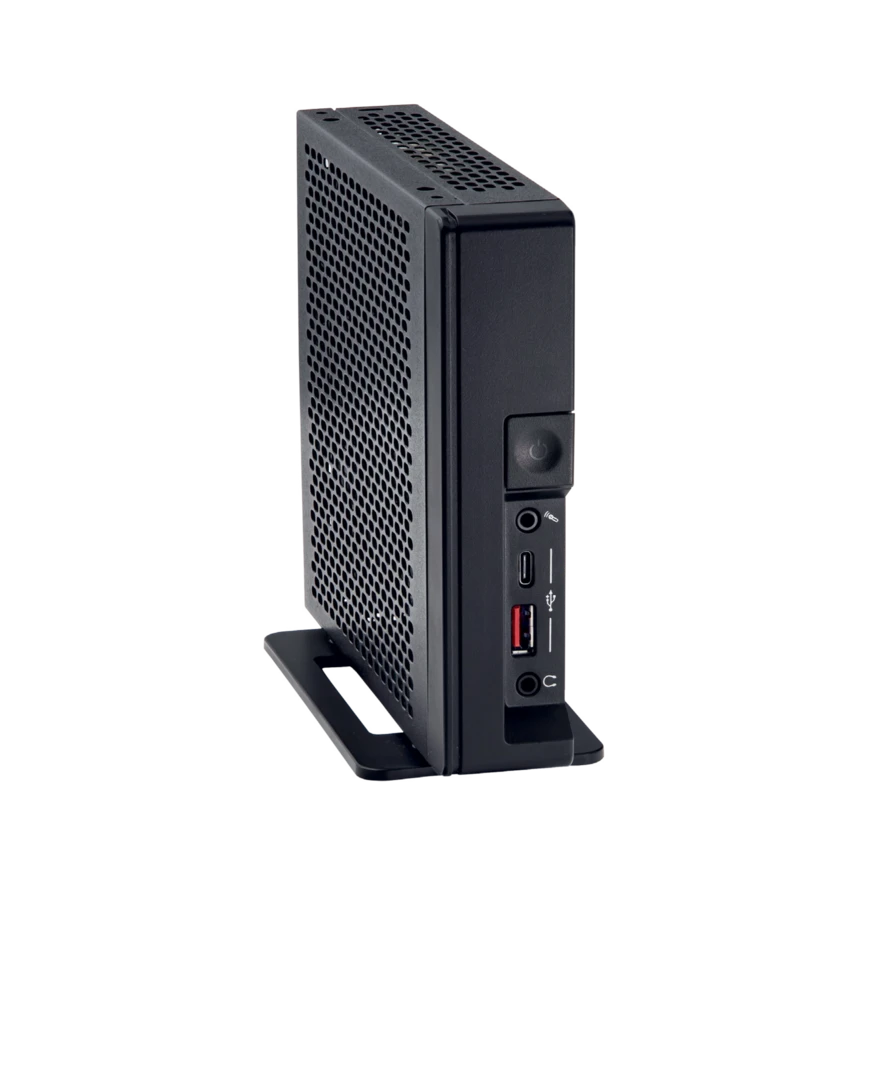

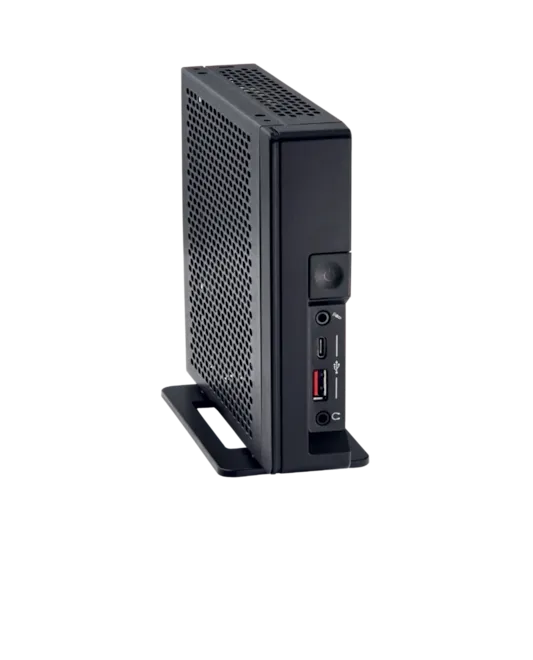

    The Smartcase S502 is a compact industrial PC based on the Kontron K4021-U motherboard.

    Intel Meteor Lake SoC (Core Ultra 7 / Core Ultra 5)
    2x DisplayPort, 2x LAN, 2x USB-C (incl. Thunderbolt 4), 4x USB
    Active cooling – optional active cooler K402x incl. backplate for SMARTCASE™ S502
    Operating temperature -10 ~ +45 °C (with active cooling, max. 15W TDP)

    on request
    Inquiry

    Product parameters

    Manufacturer KONTRON
    Video output DisplayPort
    SATA 1x
    Software support Linux, Windows
    Audio Microfon input, Audio output
    Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
    Power Input DC 12V, DC 19-28V, DC-in via USB-C 20V
    Operating temperature -10~40°C, -10~35°C
    Size (L x W x H) 36 x 147 x 165 mm
    Market Digital Signage
    Form Factor Mini-STX
    Power Input DC-in 12V / 19-28V or USB-C 20V PD Sink
    Processor Intel Alder Lake - N50 / N97 / N100 / N200 / N305 with i3
    LAN/USB/COM 2x RJ45, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen1 Type-C, 1x COM option
    Interface 1x SATA III 6Gb/s, 1x M.2 PCIe Key-M 2242 / 2260 / 2280, 1x M.2 Key-M 2230 for WiFi/BT module
    Size 147 × 165 × 36mm
    Operating temperature Active -10 ~ 40°C / passive -10 ~ 35°C
    Memory type DDR5-4800 MHz
    DDR 32GB, SO-DIMM

    Mainboard:

    • Kontron K4021-U, mini-STX, 24/7 industrial series

    Processor:

    • Intel® Core™ Ultra 7 155U
    • Intel® Core™ Ultra 5 125U

    Memory:

    • DDR5 5600 MHz

    • 2x SO-DIMM slot, max. 96 GB, non-ECC

    Features:

    • Support for up to four independent displays (2x DisplayPort, 1x USB-C DP, 1x Thunderbolt 4 DP)
    • Integrated NPU for AI acceleration (up to 20× performance-per-watt improvement)
    • Internal Wi-Fi M.2 module incl. 2x antenna (optional)
    • Galvanized steel chassis, plastic front panel, black, dimensions 36 × 147 × 165 mm, weight approx. 0.4 kg
    • Operating temperature range: -10 ~ +45 °C (active cooling, max. 15W TDP) / -10 ~ +35 °C (max. 28W TDP)
    • Mounting options – VESA / Wall, horizontal and vertical orientation
