HPC070SC-FP2807A

Catalog number: HPC070SC-FP2807A

HPC070SC-FP2807A

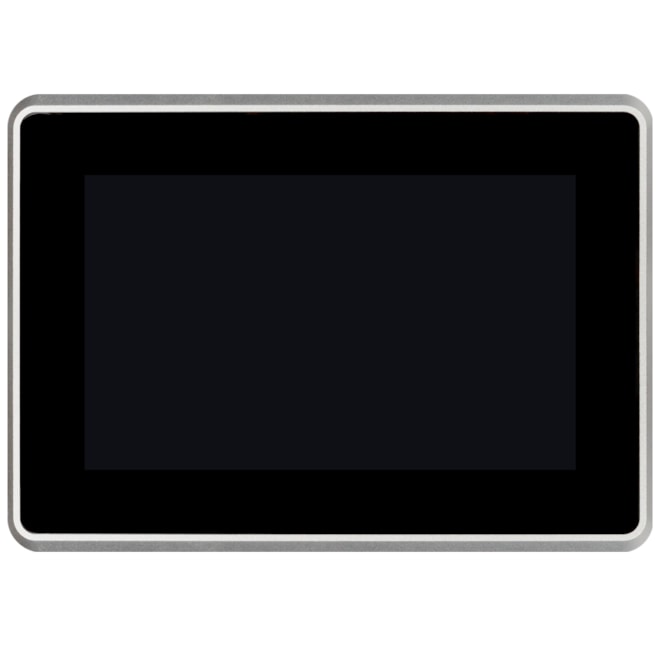

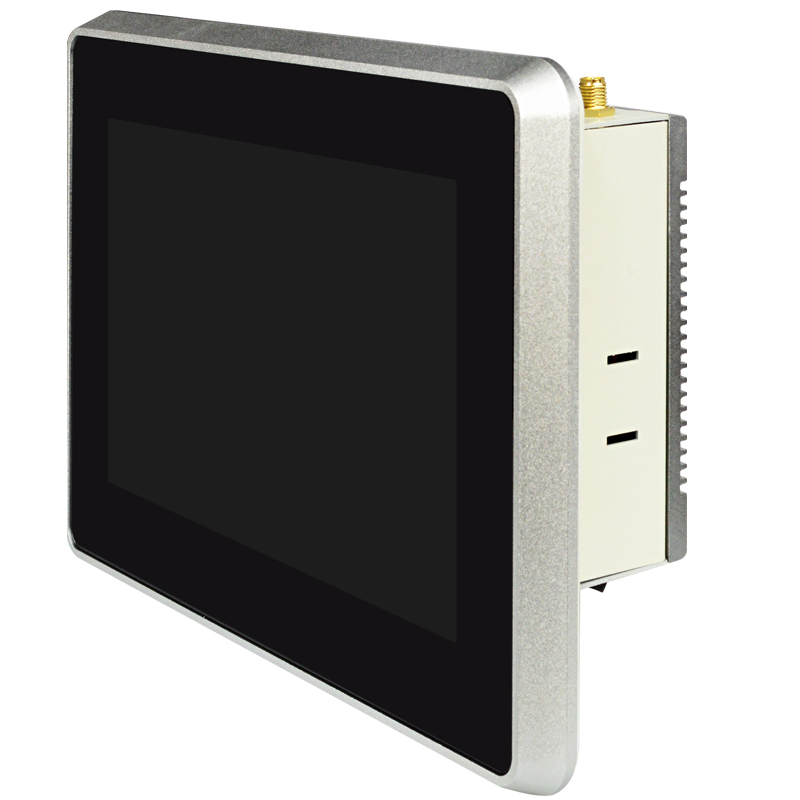

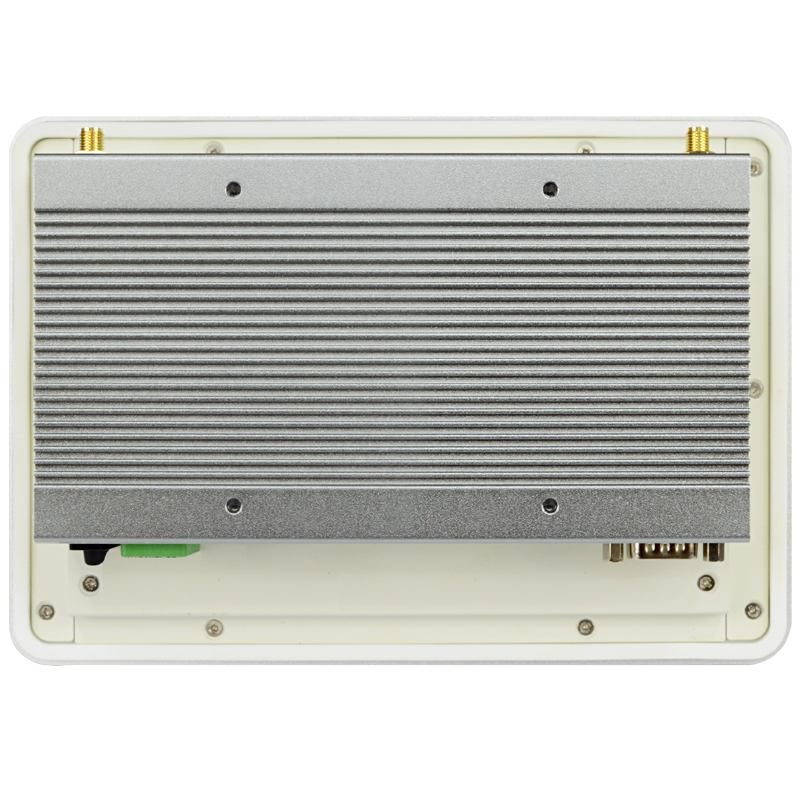

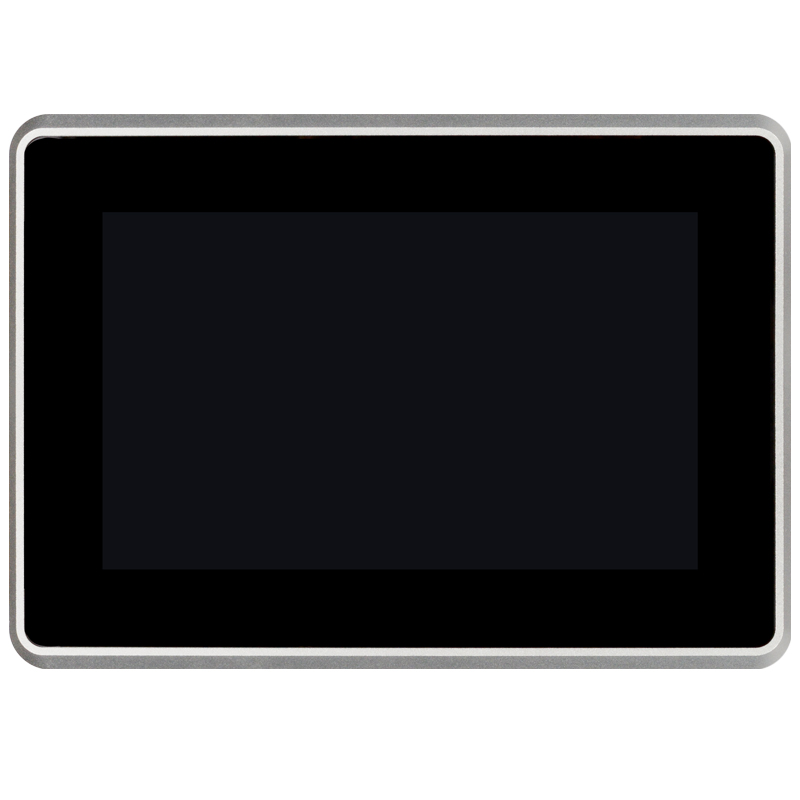

7″ TFT FanLess Touch Panel Computer
Intel® BayTrail-M N2807
1.58GHz Dual Cores Processor
Wide temp -10~60°C
Fanless

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI
Software support Windows
Memory type mSATA
Operating temperature -10~60°C
Size (L x W x H) 205 x 51,7 x 144mm
Market Industrial
Power Input AC version: 100~240V AC-DC 60W power adapter / DC version: 12VDC with over current protection fuse
Processor Intel® BayTrail-M N2807 1.58GHz Dual Cores Processor
PCIe/mPCIe/PCI 1x PCI-E mini card for WIFI or 3G/4G
LAN/USB/COM 1x USB3.0, 1x USB2.0, 1x RS2332/422/485, 1x LAN (Gigabit Lan)
Video input 1x HDMI
Size 205.0x144.0x51.7mm
Operating temperature -10 ~ +60°C
Memory type 2G 1333MHz DDR3L SAMSUNG DRAM

LCD panel:

  • 7" With LED Backlight, 1024x600@60Hz
  • Brightness: 320 cd/m2
  • Contrast Ratio 500:1
  • Viewing Angle: 150°/145°
  • TOUCH SCREEN - Active range 152.40x91.44mm

Processor:

  • Intel® Bay Trail-M N2807 1.58GHz/DC

Memory:

  • 2G 1333MHz DDR3L SAMSUNG DRAM

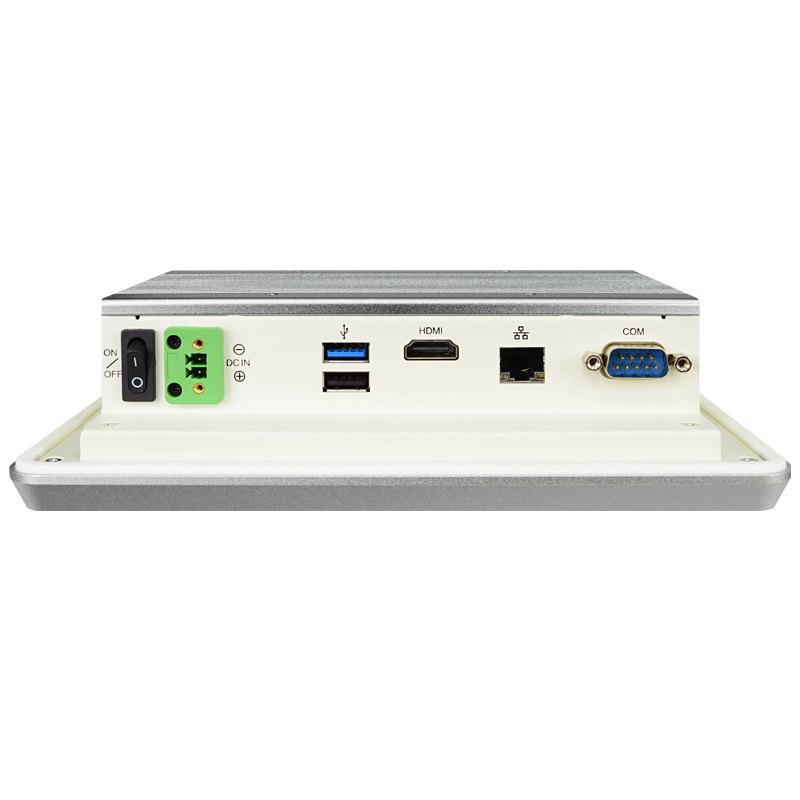

Product features:

  • 10-points Multi Capacitive Touch
  • 1x USB3.0, 1x USB2.0
  • 1x RS232/422/485
  • 1x HDMI
  • 1x LAN (Gigabit Lan)
  • 1x Euro terminal block by 12V DC input
  • 1x PCI-E mini card for WIFI or 3G/4G
  • Size: 205.0x144.0x51.7mm
  • AC version: 100~240V AC-DC 60W power adapter or DC version: 12VDC with over current protection fuse
  • Power consumption: 13W
