HPC150C-DCP1135G7

Catalog number: HPC150C-DCP1135G7

HPC150C-DCP1135G7

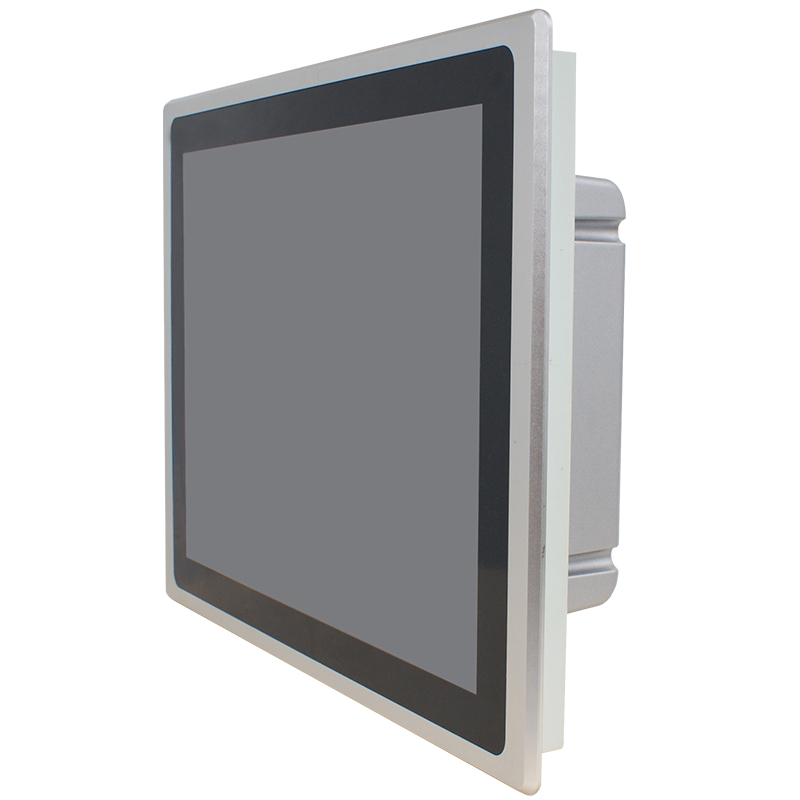

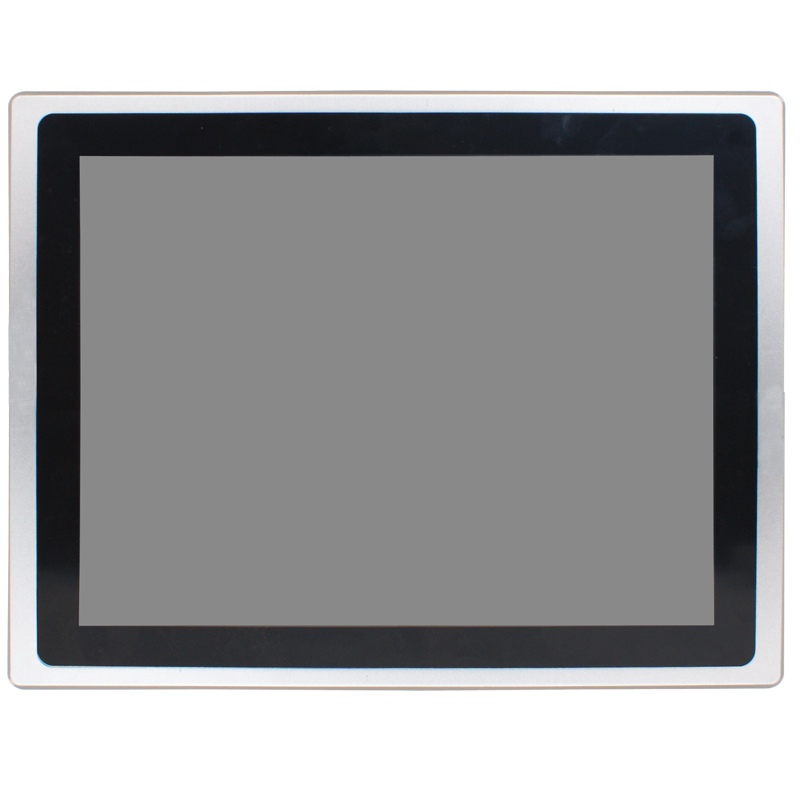

15.0" TFT Fanless Touch Panel Computer
Intel® Tiger Lake i5-1135G7 2.4GHz Quad Cores Processor
Wide temp -10~50°C

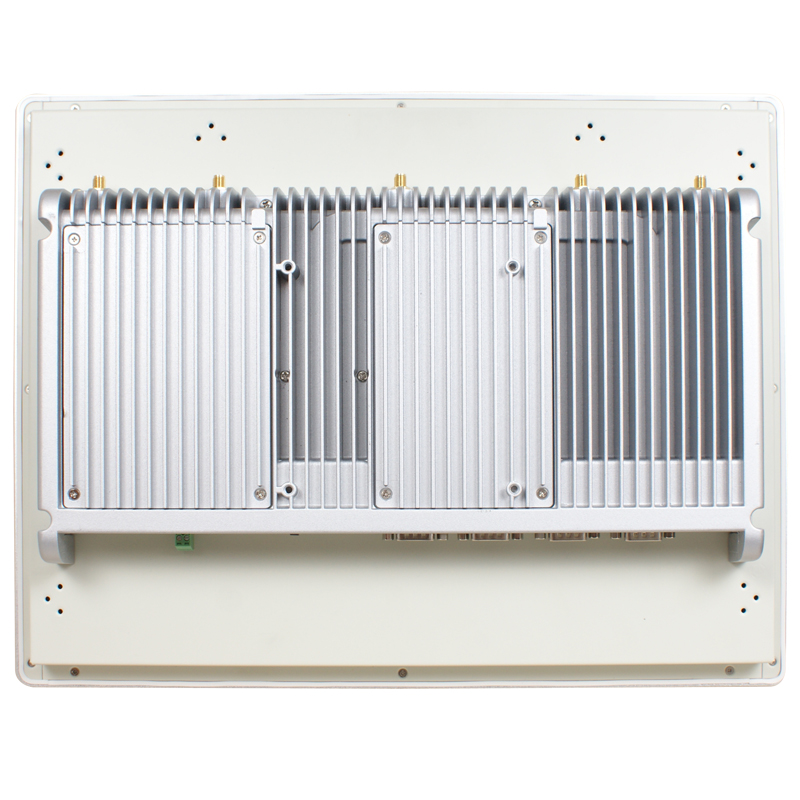

Fanless

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI
SATA 1x
Software support Linux, Windows
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 12V
Operating temperature -10~60°C
Size (L x W x H) 382,3 x 63,1 x 288,6mm
Market Industrial
Power Input AC version: 100~240V AC-DC 60W power adapter / DC version: 9~24VDC with over current protection fuse
Processor Intel® Tiger Lake i5-1135G7 2.4GHz Quad Cores Processor
PCIe/mPCIe/PCI 1x M.2 M key (2242/2280, PCI-Ex4) 1x M.2 E key (2230) for WIFI, 1x M.2 B key for 4G/5G Module

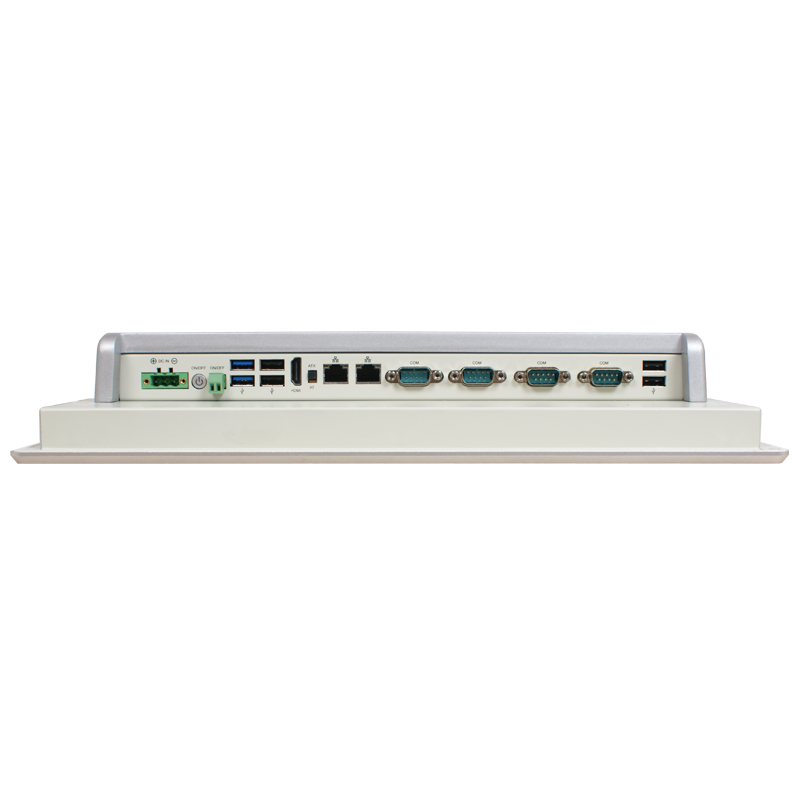

LAN/USB/COM 2x USB3.2(gen1), 4x USB2.0, 2x RS232/422/485, 2x RS232, 2x RJ45
Size 382.3x288.6x63.1mm
Operating temperature -10 ~ +60°C
Memory type 2* DDR4 SO-DIMM (Max 64GB)
DDR SO-DIMM

LCD panel:

  • 15.0” TFT LCD with LED backlight, 1024x768@60Hz
  • Contrast: 1000:1
  • Viewing angle: 178°/178°
  • TOUCHING SCREEN - Active range 336.3x260.6mm

Processor:

  • Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor

Memory:

  • 2* DDR4 SO-DIMM (Max 64GB)

Product features:

  • 1x 2.5" SATA HDD
  • 1x M.2 M key (2242/2280, PCI-Ex4)
  • 1x M.2 E key (2230) for WIFI, 1x M.2 B key for 4G/5G Module
  • 2x USB3.2(gen1), 4x USB2.0
  • 2x RS232/422/485, 2x RS232
  • 1x HDMI
  • 1x AT/ATX Mode button
  • 2x RJ45
  • 1x 12~36V DC-in Locking Jack
  • Size: 382.3x288.6x63.1mm
  • AC version: 100~240V AC-DC 60W power adapter or DC version: 12VDC with over current protection fuse
