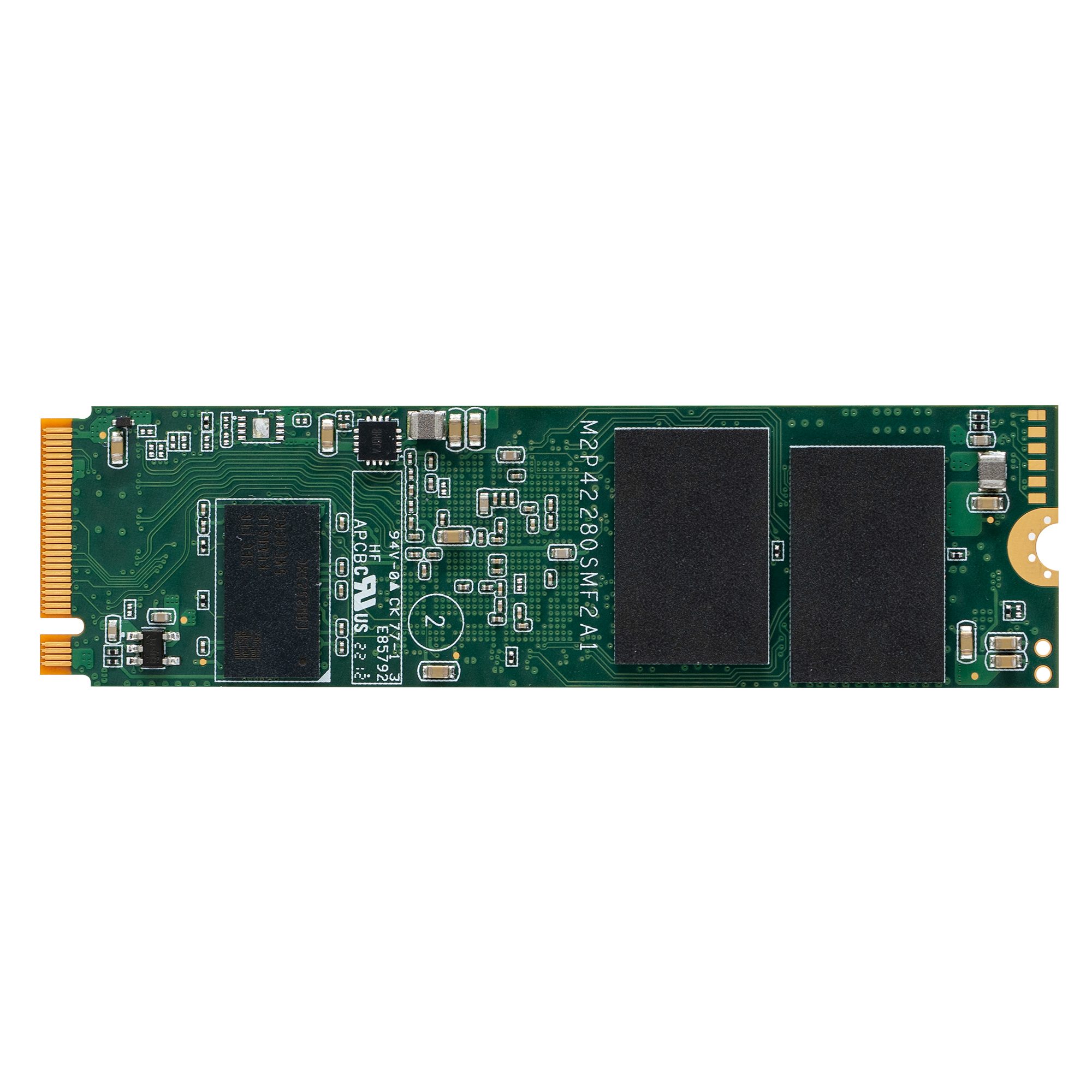

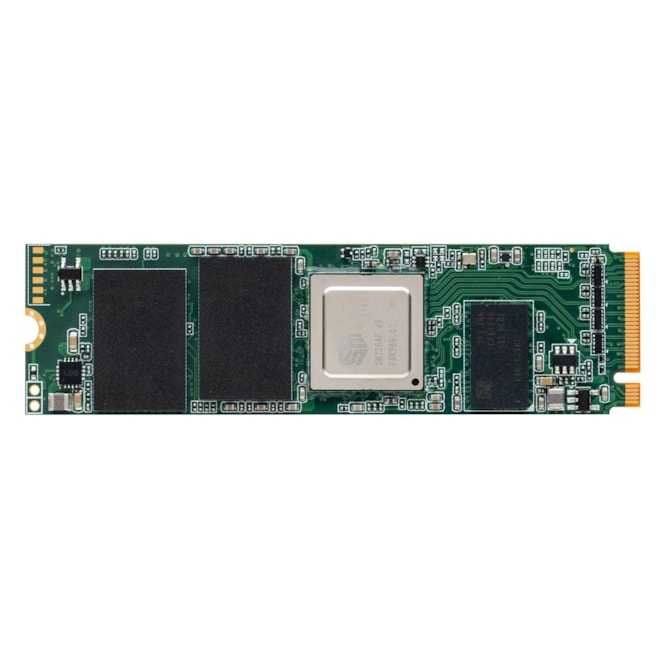

M.2 2280 SSD 3D eTLC

Catalog number: IM2P41B8_eTLC_BC5

Industrial SSD storage with form factor M.2 2280 and 3D eTLC NAND flash technology (PCIe Gen 4x4, NVMe 1.4 compliant. Ideal for server, AIoT, 5G or other similar industrial applications.

  • M.2 2280, 480GB-1,92TB
  • PCIe Gen4x4, NVMe 1.4
  • 7000/6200MB/s (R/W)
  • Rozsah 0C až +70C
Datasheet
on request
Inquiry

Product parameters

Manufacturer ADATA
Memory type 3D eTLC
ROM 480 GB, 960 GB, 1,92 TB
Operating temperature 0~70℃
Size (L x W x H) 80 x 22 mm
Form Factor M.2 2280
Interface PCIe Gen4x4
Size 80 x 22 x 2,25mm
Read/Write 7000 / 6200MB/s
Capacity 480GB - 1,92TB
Operating temperature 0°C ~ +70°C
Memory type 3D eTLC
Operating humidity 5% ~ 95% RH
 Capacity  PN
480 GB  IM2P41B8-480GCTB5
960 GB  IM2P41B8-960GCTB5
1,92 TB  IM2P41B8-1T92CTB5



Features: LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, DRAM Buffer, TRIM command, Thermal Throttling, S.M.A.R.T. Monitor, AES 256-bit Data Encryption, TCG OPAL 2.0, End-to-End Data Path Protection, ESD Support (IEC/EN 61000-4-2 level 4)
