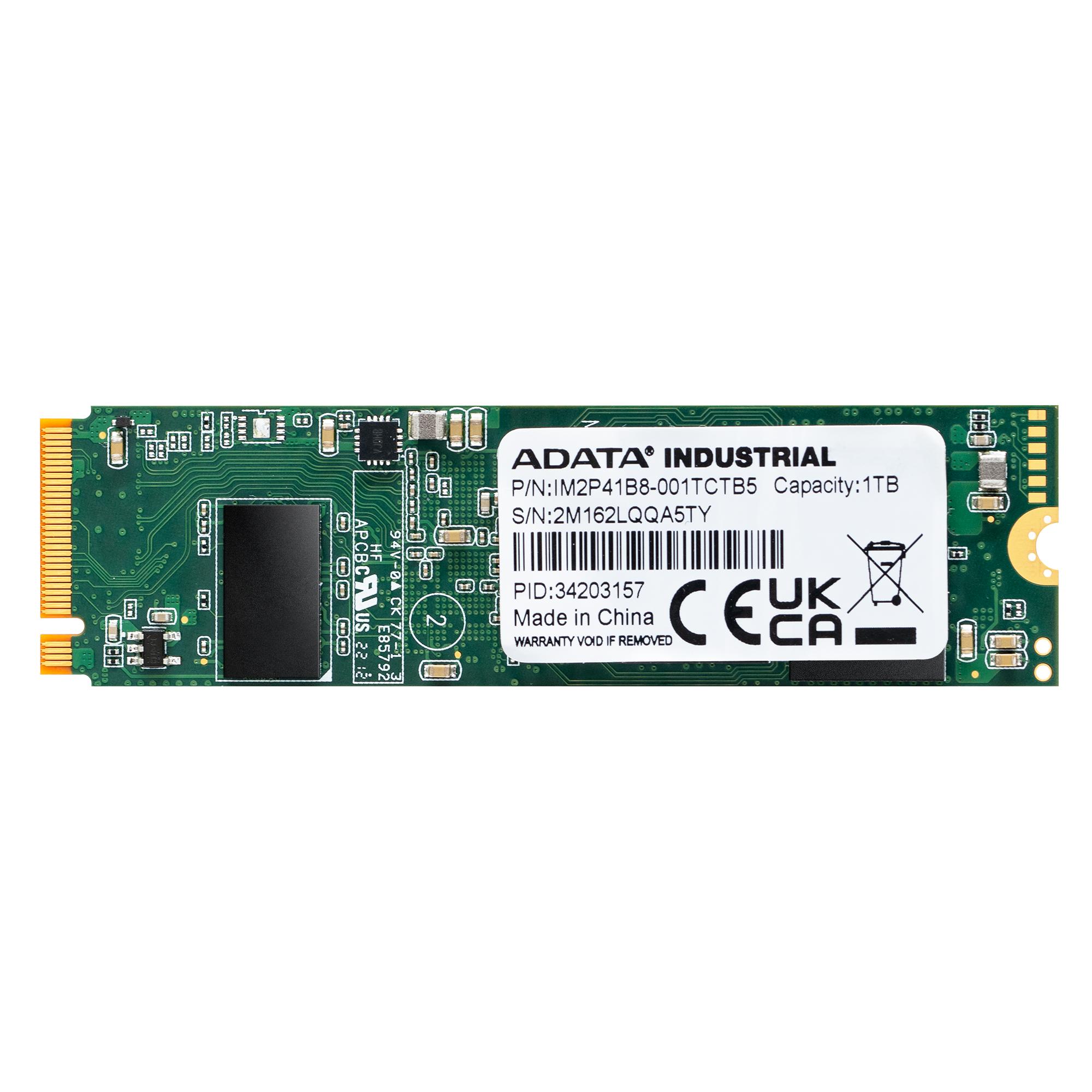

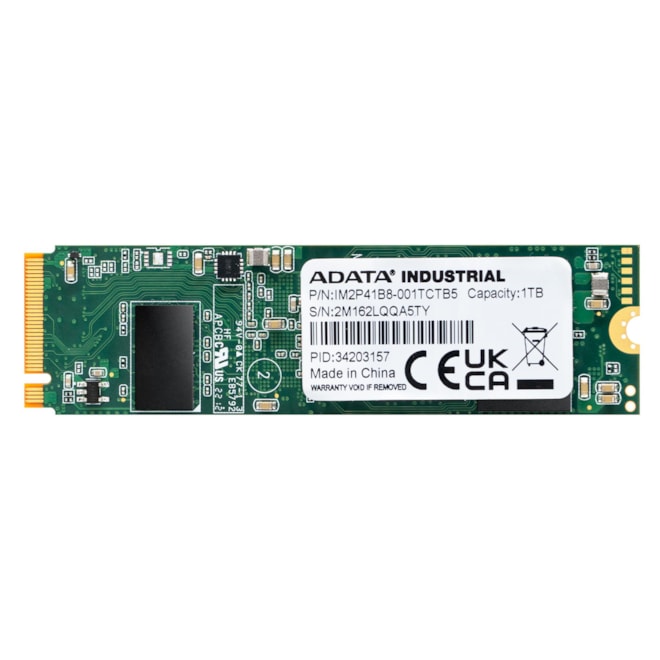

    M.2 2280 SSD 3D TLC

    Catalog number: IM2P41B8_WT_BC5

    • M.2 2280, 512GB-4TB
    • 7000/6500MB/s (R/W)
    • Temp -40C až +85C
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D TLC
    ROM 512 GB, 1 TB, 2 TB, 4 TB
    Operating temperature -40~85°C
    Size (L x W x H) 80 x 22 mm
    Form Factor M.2 2280
    Interface PCIe Gen4x4
    Size 80 x 22 x 3.6mm
    Read/Write 7000 / 6500MB/s
    Capacity 512GB - 4TB
    Operating temperature -40°C ~ +85°C
    Memory type 3D TLC
    Operating humidity 5% ~ 95% RH
    Capacity  PN
     512GB  IM2P41B8-512GITB5
     1TB  IM2P41B8-001TITB5
     2TB  IM2P41B8-002TITB5
     4TB  IM2P41B8-004TITB5

    Features: PCIe Gen4x4, 3,000 P/E cycle, NVMe 1.4, S.M.A.R.T., DRAM Buffer, RAID engine, End-to-End Data Path Protection, Wear Leveling function, LDPC ECC, SLC Cache, TRIM command, Thermal Throttling, AES 256-bit Data Encryption, TCG OPAL 2.0, ESD Support (IEC/EN 61000-4-2 level 4)
