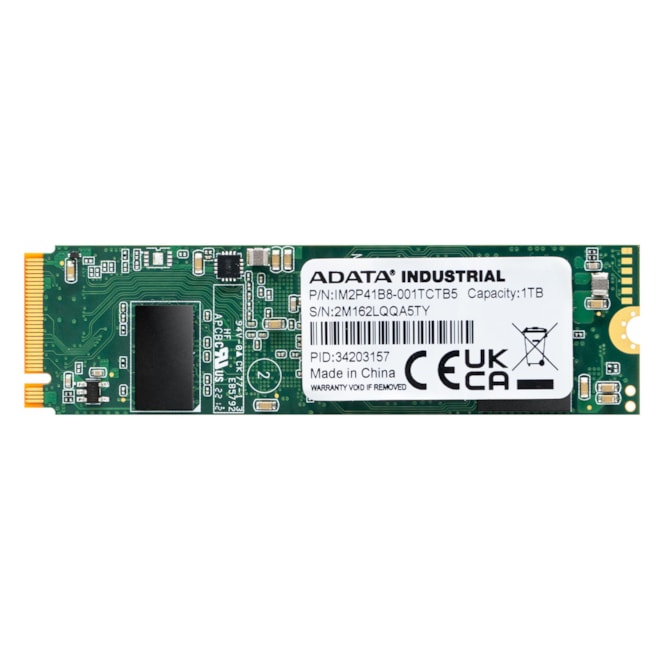

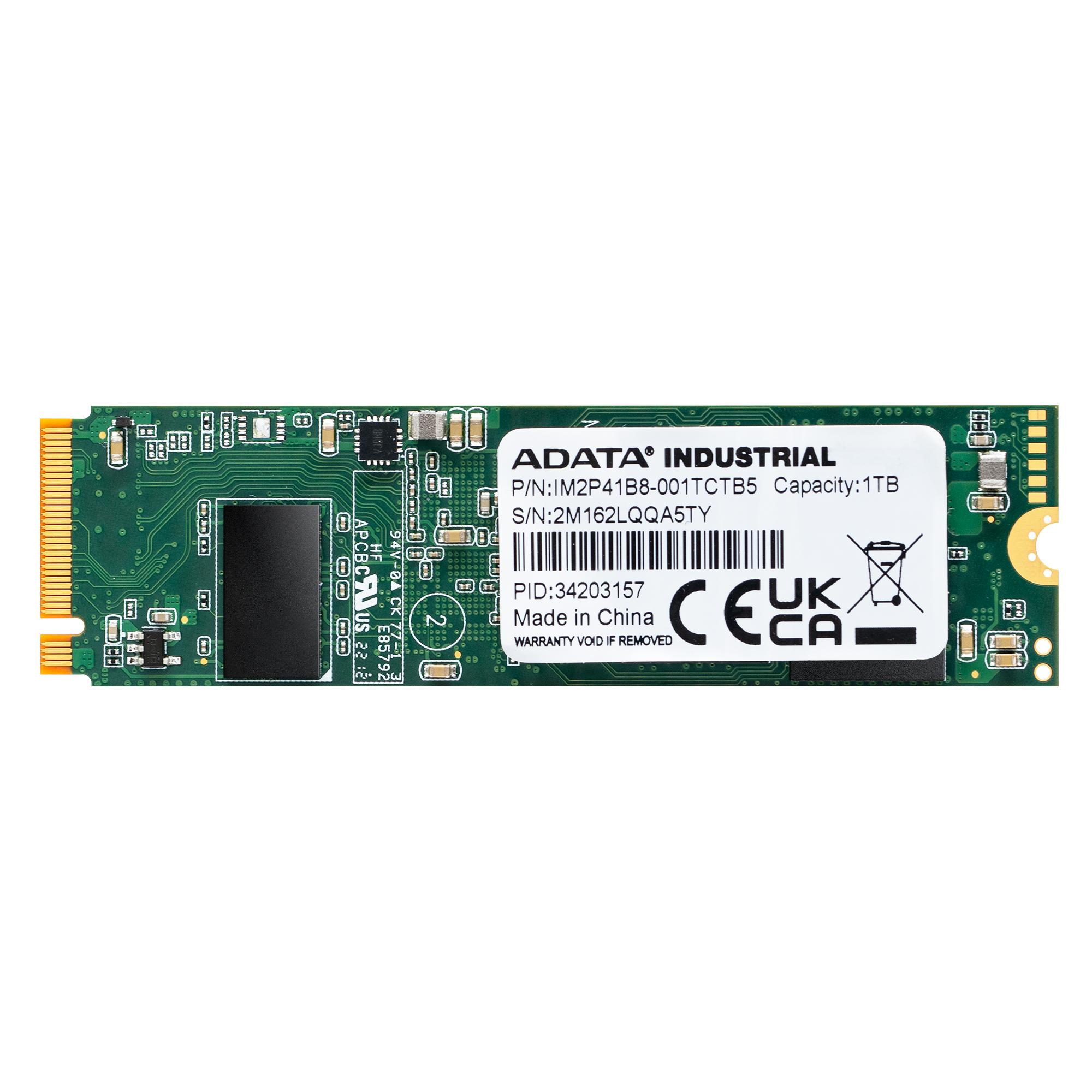

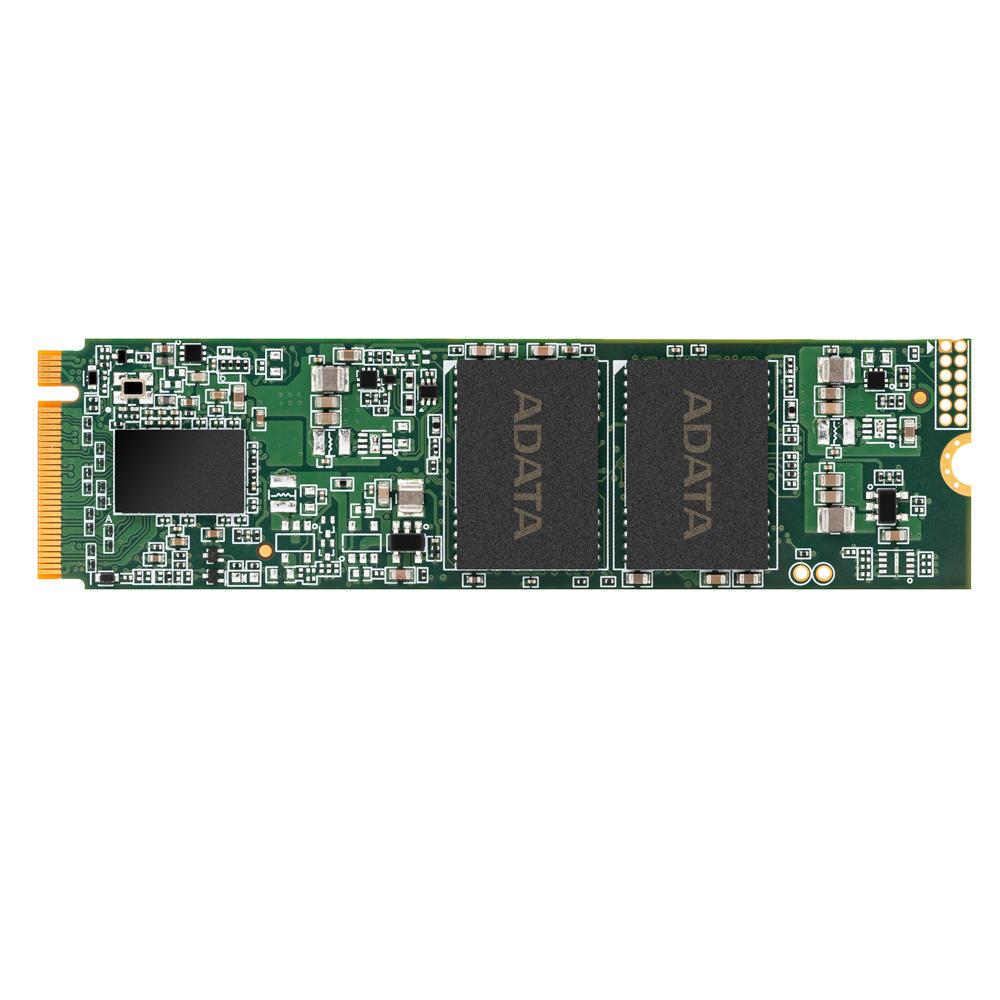

M.2 2280 SSD 3D TLC

Catalog number: IM2P42B8_BC5

ADATA industrial NVMe 1.4 SSD with PCIe Gen. 4x4. Form factor is M.2 2280 s 3D TLC NAND 176 layer technology.

  • M.2 2280, 512GB-2TB
  • 5100/4700MB/s (R/W)
  • Temp 0C až +70C
Datasheet
on request
Inquiry

Product parameters

Manufacturer ADATA
Memory type 3D TLC
ROM 512 GB, 1 TB, 2 TB
Operating temperature 0~70℃
Size (L x W x H) 80 x 22 mm
Form Factor M.2 2280
Interface PCIe Gen4x4
Size 80 x 22 x 3.6mm
Read/Write 5100 / 4700MB/s
Capacity 512GB - 2TB
Operating temperature 0°C ~ +70°C
Memory type 3D TLC
Operating humidity 5% ~ 95% RH
Capacity  PN
 512GB IM2P42B8-512GCTB5
 1TB IM2P42B8-001TCTB5
 2TB IM2P42B8-002TCTB5

Features: PCIe Gen4x4, LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, TRIM Command, Thermal Throttling, S.M.A.R.T. Monitor, AES 256-bit Data Encryption, Host Memory Buffer End-to-End Data Path Protection, ESD Support (IEC/EN 61000-4-2 level 4)
