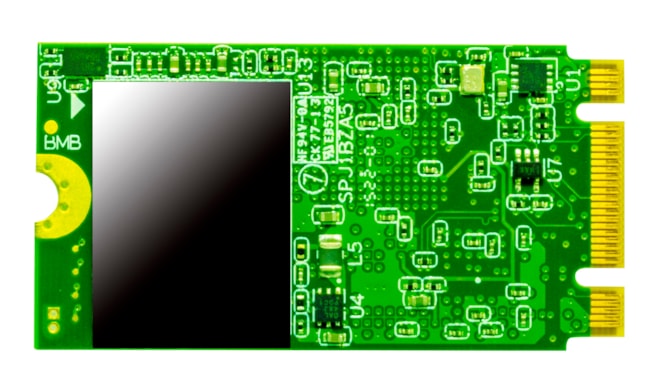

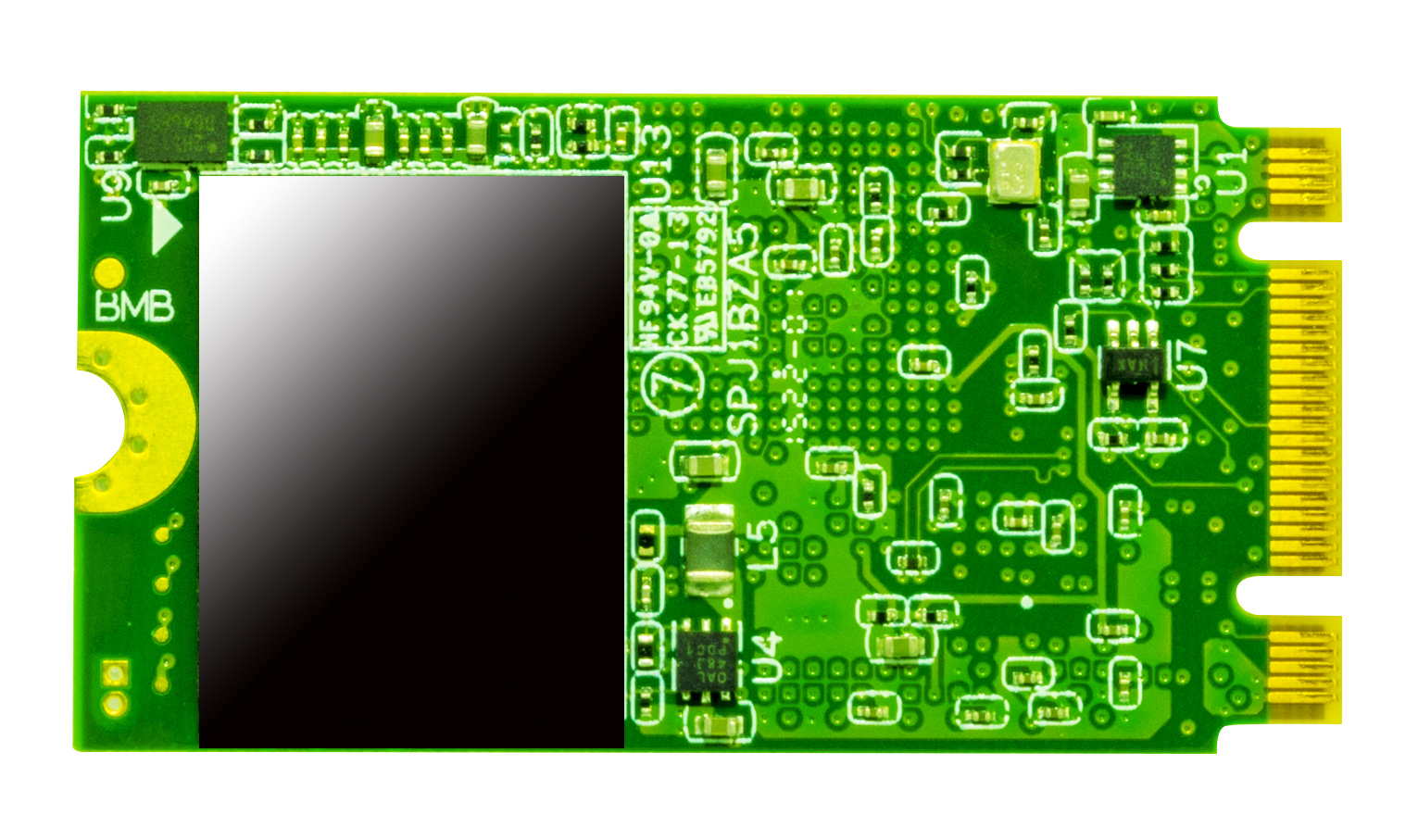

    M.2 2242 SSD MLC wide temp

    Catalog number: IM2S3134N_MLC_wide

    • M.2 2242, 64-512GB
    • 550/320MB/s (R/W)
    • Temp -40C to +85C
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type MLC
    ROM 64 GB, 128 GB, 256 GB, 512 GB
    Operating temperature -40~85°C
    Size (L x W x H) 42 x 22 mm
    Form Factor M.2 2242
    Interface SATA III
    Size 42 x 22 x 3.5mm
    Read/Write 550 / 320MB/s
    Capacity 64 - 512GB
    Operating temperature -40°C ~ +85°C
    Memory type MLC
    MTBF >1,500,000 h
    Operating humidity 5% ~ 95% RH
     Capacity  PN
     64GB  IM2S3134N-064GT
     128GB  IM2S3134N-128GT
     256GB  IM2S3134N-256GT
     512GB  IM2S3134N-512GT

    Features: S.M.A.R.T., NCQ Command set, Trim Command, DEVSLP support, Wear Leveling function, H/W Power Detector and Flash Protection, ESD and EMI Safe
