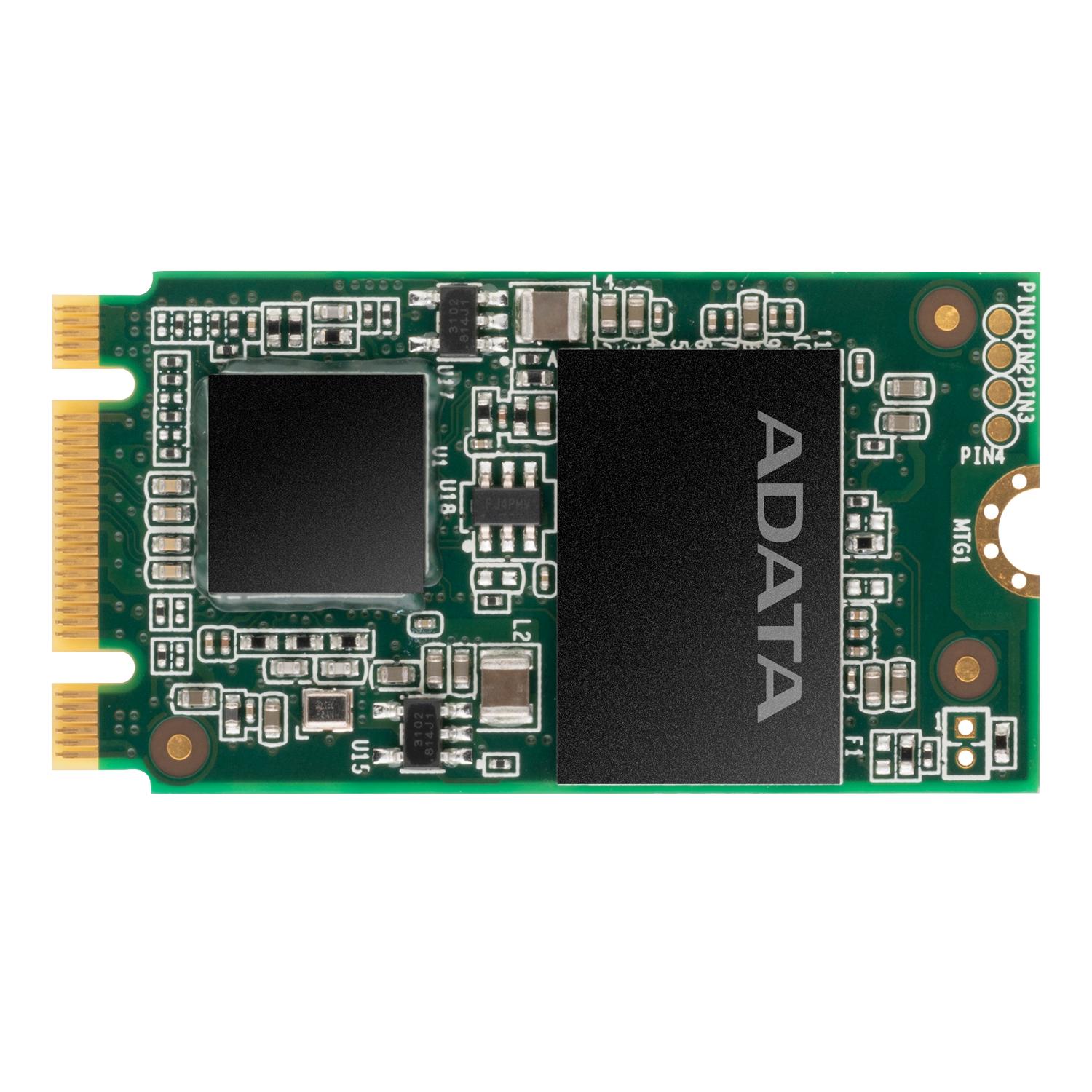

M.2 2242 SSD 3D TLC WT

Catalog number: IM2S3164_BC5_WT

  • M.2 2242, 128GB-1TB
  • 560/480MB/s (R/W)
  • Temp -45C to +85C
Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer ADATA
Memory type 3D TLC
ROM 128 GB, 256 GB, 512 GB, 1 TB
Operating temperature -40~85°C
Size (L x W x H) 42 x 22 mm
Form Factor M.2 2242
Interface SATA III
Size 42 x 22 x 3.6mm
Read/Write 560 / 480MB/s
Capacity 128GB - 1TB
Operating temperature -45°C ~ +85°C
Memory type 3D TLC
Operating humidity 5% ~ 95% RH
 Capacity  PN
 128GB IM2S3164-128GITB5
 256GB IM2S3164-256GITB5
 512GB IM2S3164-512GITB5
1TB IM2S3164-001TITB5

Features: LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, TRIM and NCQ command, Thermal Throttling, S.M.A.R.T. Monitor, AES 256-bit Data Encryption
