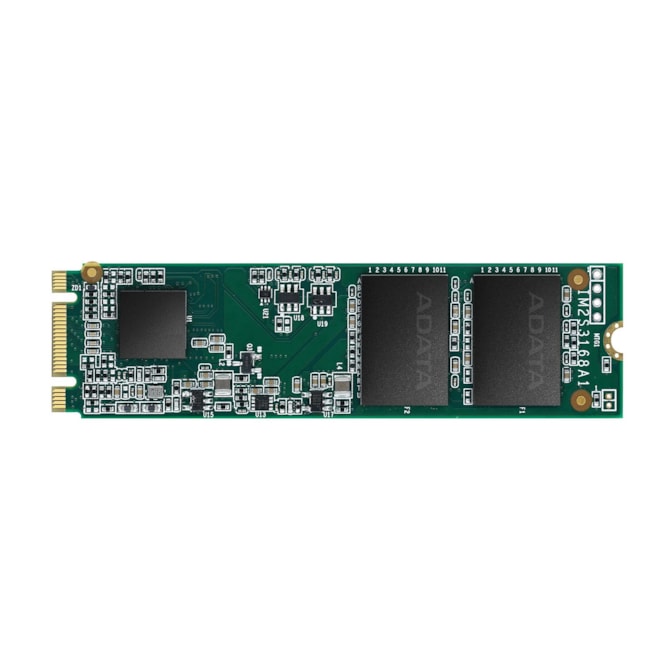

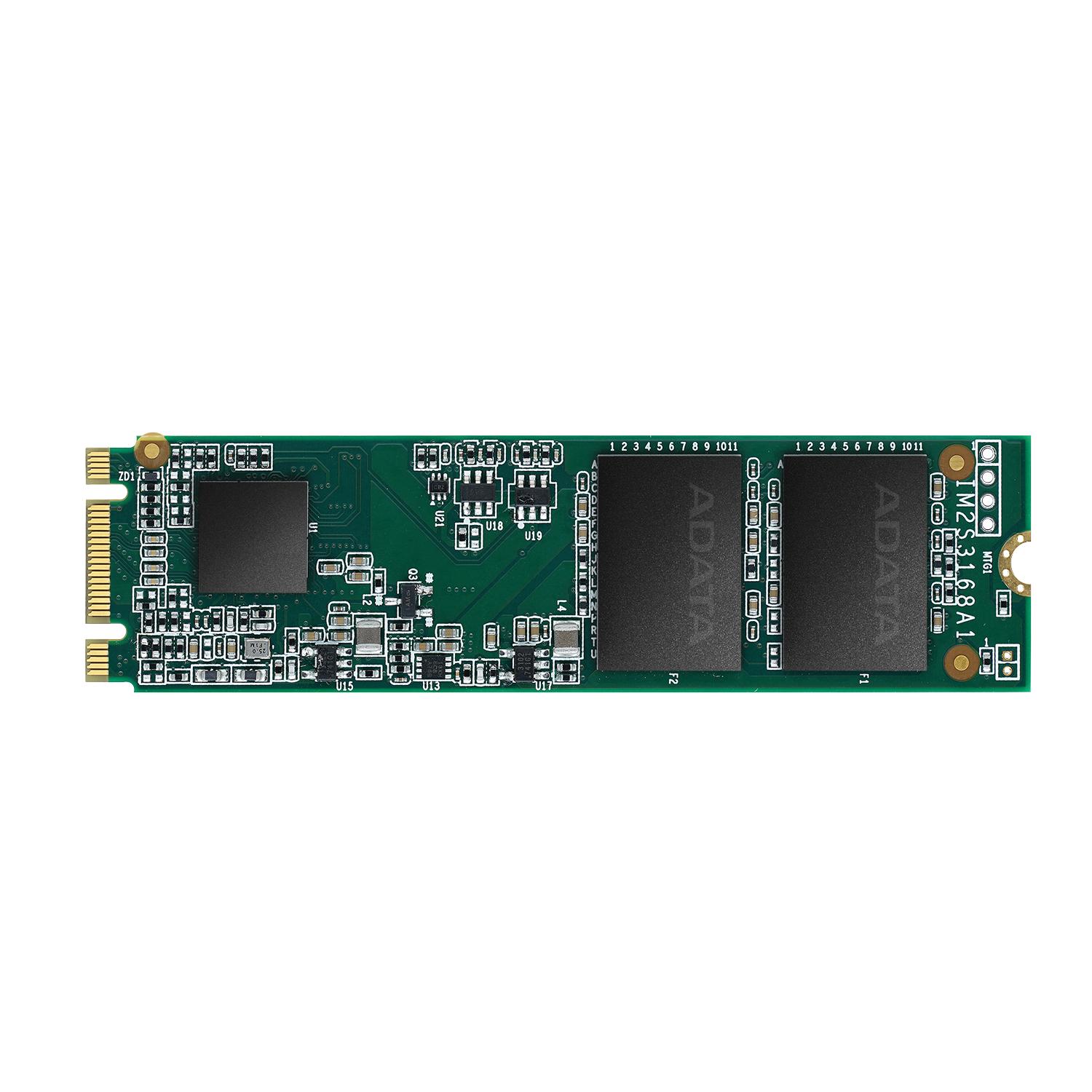

    M.2 2280 SSD 3D TLC WT

    Catalog number: IM2S31C8_BC5_WT

    • M.2 2280, 128GB-2TB
    • 560/500MB/s (R/W)
    • Temp -45C až +85C
    • 112-Layer Bics5
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D TLC
    ROM 128 GB, 256 GB, 512 GB, 1 TB, 2 TB
    Operating temperature -40~85°C
    Size (L x W x H) 80 x 22 mm
    Form Factor M.2 2280
    Size 80 x 22 x 3.6mm
    Read/Write 560/500 MB/s
    Capacity 128GB - 2TB
    Operating temperature -45°C ~ +85°C
    Memory type 3D TLC
    Operating humidity 5% ~ 95% RH
     Capacity  PN
    128GB IM2S31C8-128GITB5
     256GB IM2S31C8-256GITB5
     512GB IM2S31C8-512GITB5
     1TB IM2S31C8-001TITB5
     2TB IM2S31C8-002TITB5

    Features: LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, TRIM and NCQ command, Thermal Throttling, S.M.A.R.T. Monitor, AES 256-bit Data Encryption
