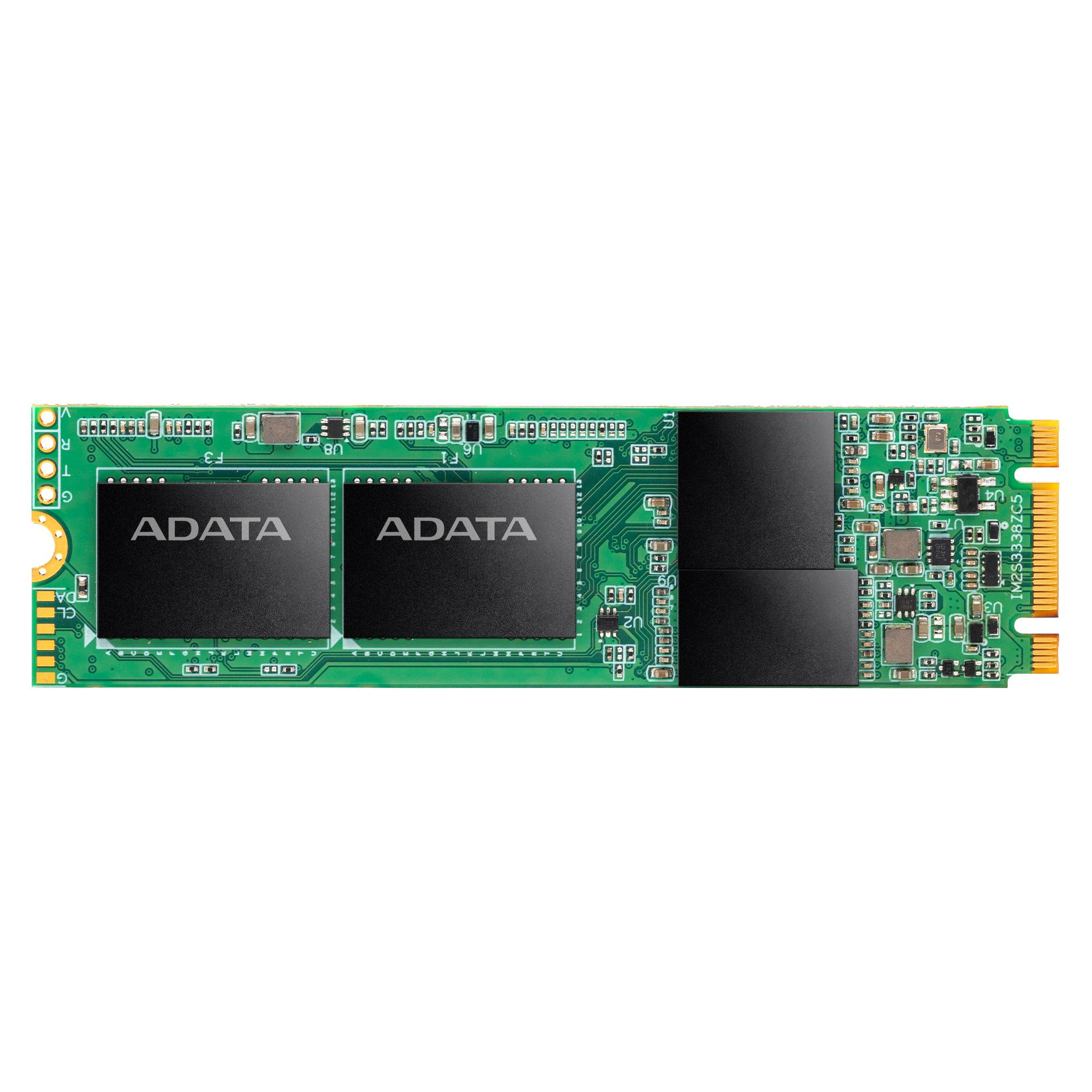

    M.2 2280 SSD 3D TLC

    Catalog number: IM2S3338_BC3

    • M.2 2280, 64GB-1TB
    • 560/520MB/s (R/W)
    • Temp 0C to +70C
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D TLC
    ROM 64 GB, 128 GB, 256 GB, 512 GB, 1 TB
    Operating temperature 0~70℃
    Size (L x W x H) 80 x 22 mm
    Form Factor M.2 2280
    Interface SATA III
    Size 80 x 22 x 3.6mm
    Read/Write 560 / 520MB/s
    Capacity 64GB - 1TB
    Operating temperature 0°C ~ +70°C
    Memory type 3D TLC
    Operating humidity 5% ~ 95% RH
     Capacity  PN
     64GB  IM2S3338-064GD
     128GB  IM2S3338-128GD
     256GB  IM2S3338-256GD
     512GB  IM2S3338-512GD
     1TB  IM2S3338-001TD

    Features: LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, DRAM Buffer, TRIM and NCQ command, Thermal Throttling, S.M.A.R.T. Monitor
