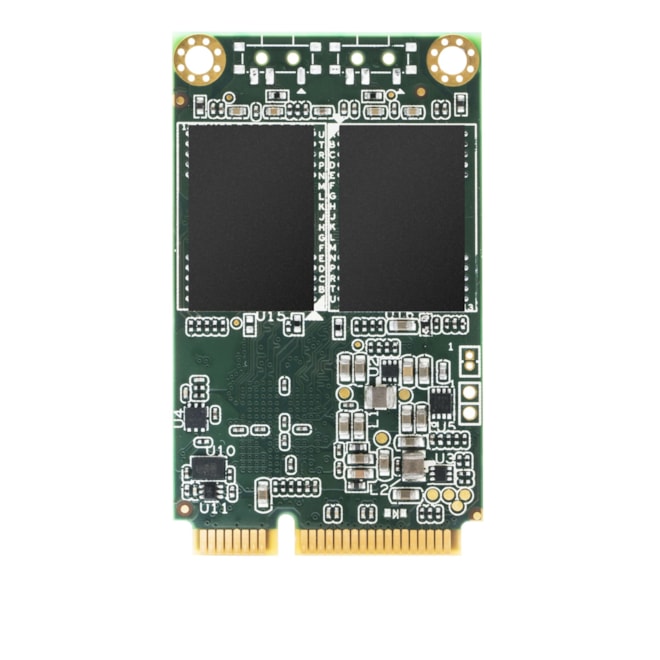

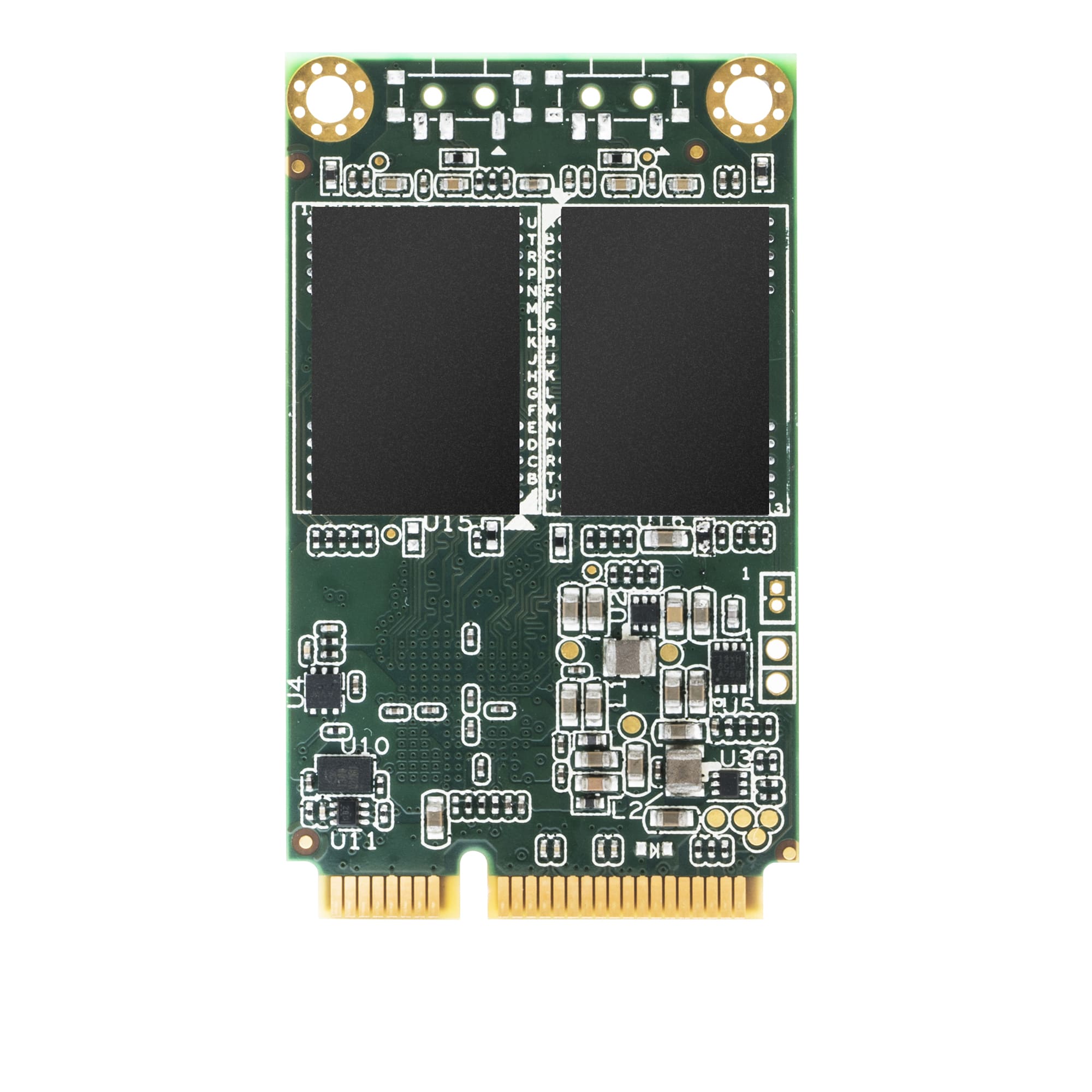

    mSATA SSD 3D TLC WT

    Catalog number: IMSS316_TLC_B5WT

    IMSS316 - 3D TLC (BiCS5) Wide Temp

    • 128GB - 2TB
    • 560/520MB/s (R/W)
    • Temp -40C to +85C
    • 3K PE cycle
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D TLC
    ROM 128 GB, 256 GB, 512 GB, 1 TB, 2 TB
    Operating temperature -40~85°C
    Size (L x W x H) 50,8 x 29,85 x 4,85mm
    Form Factor mSATA
    Interface SATA III
    Size 50.8 x 29.85 x 4.85mm
    Read/Write 560 / 520MB/s
    Capacity 128GB - 2TB
    Operating temperature -45°C ~ +85°C
    Memory type 3D TLC
    MTBF >2,000,000 h
    Operating humidity 5% ~ 95% RH
    Capacity  PN
     128GB IMSS316- 128GITB5
     256GB IMSS316- 256GITB5
     512GB IMSS316- 512GITB5
    1TB IMSS316- 001TITB5
    2TB IMSS316- 002TITB5

    Features: NCQ Command set, Trim Command, DEVSLP support, LDPC ECC Engine, Wear Leveling function, H/W Power Detector and Flash Protection, ESD and EMI Safe
