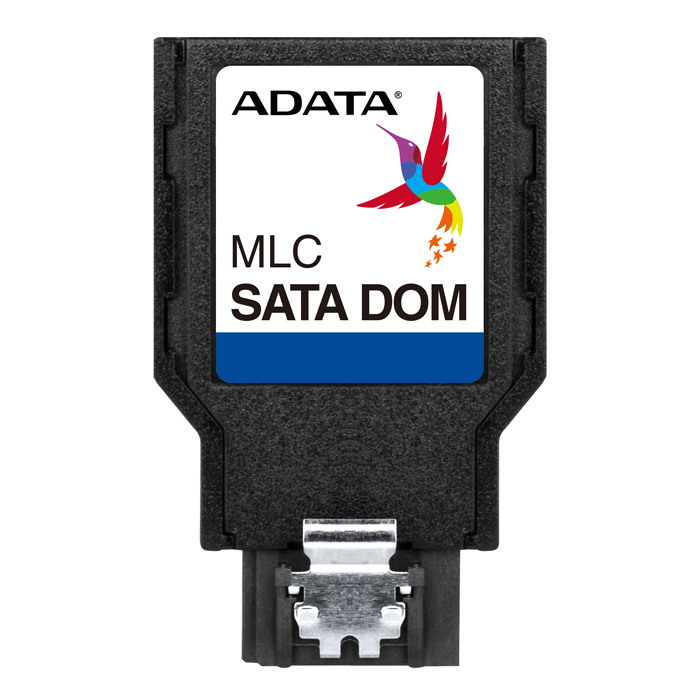

ISMS331 MLC Vertical

Catalog number: ISMS331_MLC_V

  • SATA 7PIN, 8-128GB
  • 300/180MB/s (R/W)
  • Temp -10 to +80C
Datasheet
on request
Inquiry

Product parameters

Manufacturer ADATA
Memory type MLC
ROM 8 GB, 16 GB, 32 GB, 64 GB, 128 GB
Operating temperature -10°C~80°C
Size (L x W x H) 40,7 x 25,1 x 7mm
Form Factor Vertical type
Interface SATA DOM
Size 40.7 x 25.1 x 7mm
Read/Write 300 / 180 MB/s
Capacity 8GB - 128GB
Operating temperature -10~80°C
Memory type MLC
MTBF >1,000,000 h
 Capacity  PN
 8GB  ISMS331-008GMV
 16GB  ISMS331-016GMV
 32GB  ISMS331-032GMV
 64GB  ISMS331-064GMV
 128GB  ISMS331-128GMV

Features: S.M.A.R.T., Connector latch design, Self-diagnostic, Flash protection, Flash management, Error Correcting Code, Wear Leveling function, H/W Power Detector, supports H/W Write Protect Switch
