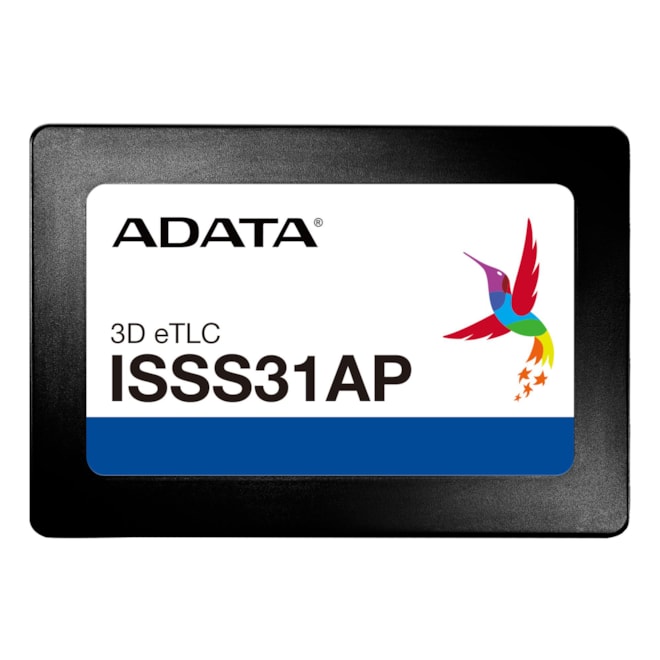

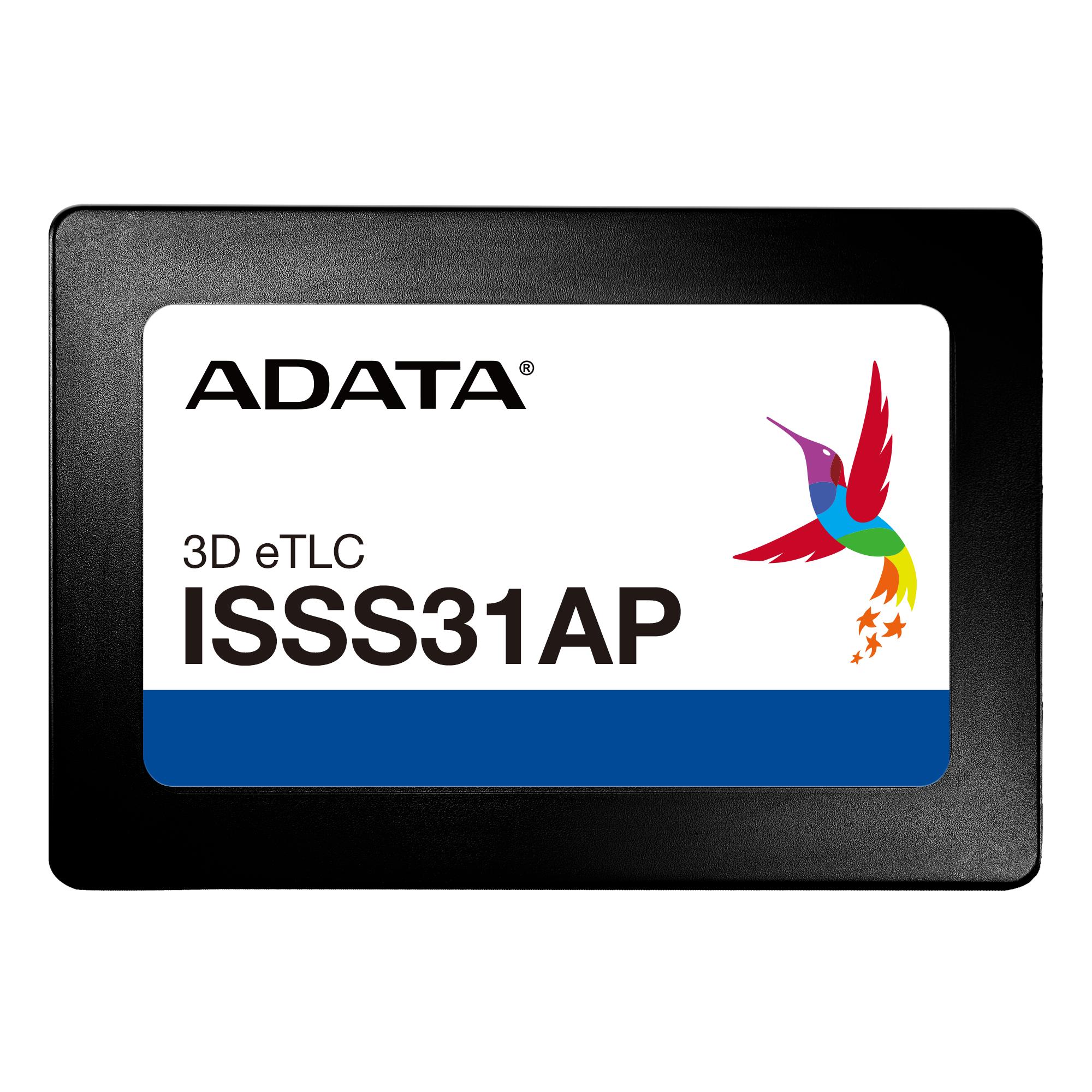

    2.5" SSD 3D eTLC

    Catalog number: ISSS31AP_eTLC_BC5

    ISSS31AP - 3D eTLC (BiCS5) PLP is industrial 2,5" SSD from ADATA Industrial. This 2,5" SSD SATA storage is ideal for transportation, 5G, and other applications.

    • 3.84TB / 7.68TB
    • 112-layer 3D eTLC NAND Flash, 7K P/E cycle
    • 560/520MB/s (R/W)
    • Operating Temp 0ºC to 70ºC
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D eTLC
    ROM 3.84 TB, 7.68 TB
    Operating temperature 0~70℃
    Size (L x W x H) 100 x 70 x 7mm
    Form Factor 2.5"
    Interface SATA III
    Size 100 x 70 x 7mm
    Read/Write 560 / 520MB/s
    Capacity 3.84TB / 7.68TB
    Operating temperature 0°C ~ +70°C
    Memory type 3D eTLC
    Operating humidity 5% ~ 95% RH

    Usage:

    •  AIoT, 5G
    • Transportation
    • NAS, Edge Computing
    • Surveillance systems
    Capacity  PN
    3,84 TB ISSS31AP-3T84CTB5
    7.68 TB ISSS31AP-7T68CTB5

    Features: Power Loss Protection (PLP), LDPC ECC (Low Density Parity-check), RAID Engine, Wear Leveling, TRIM command, Thermal Throttling, S.M.A.R.T. Monitor, DRAM Buffer, SLC Cache, ESD Support (IEC/EN 61000-4-2 level 4), TCG OPAL 2.0 End-to-End Data Path Protection, Bad block management
