JF35-ADN1 - N97

Catalog number: JF35-ADN1_N97

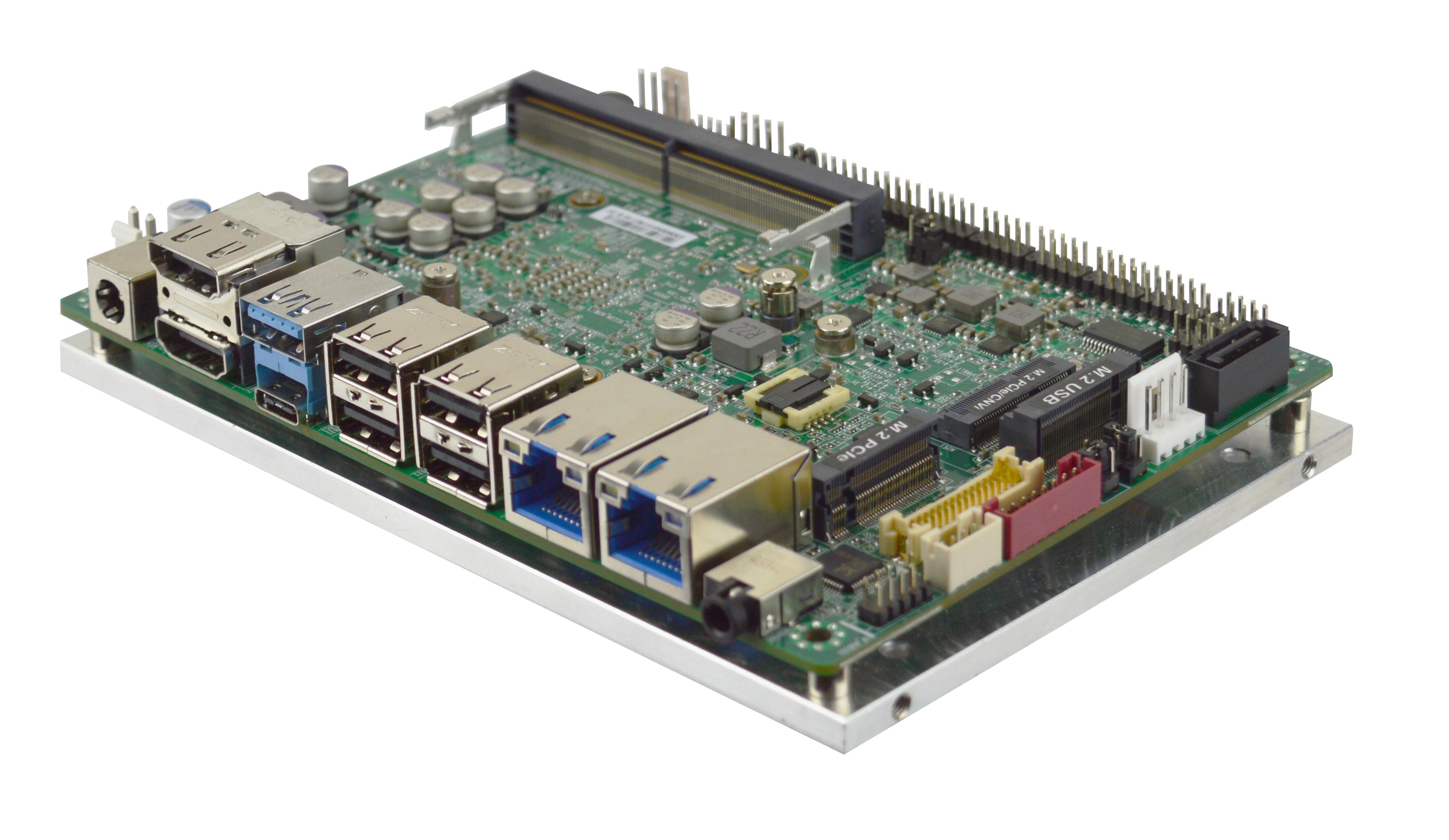

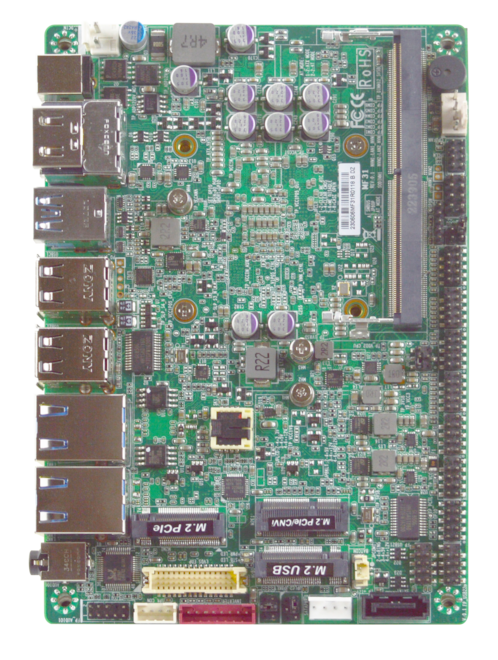

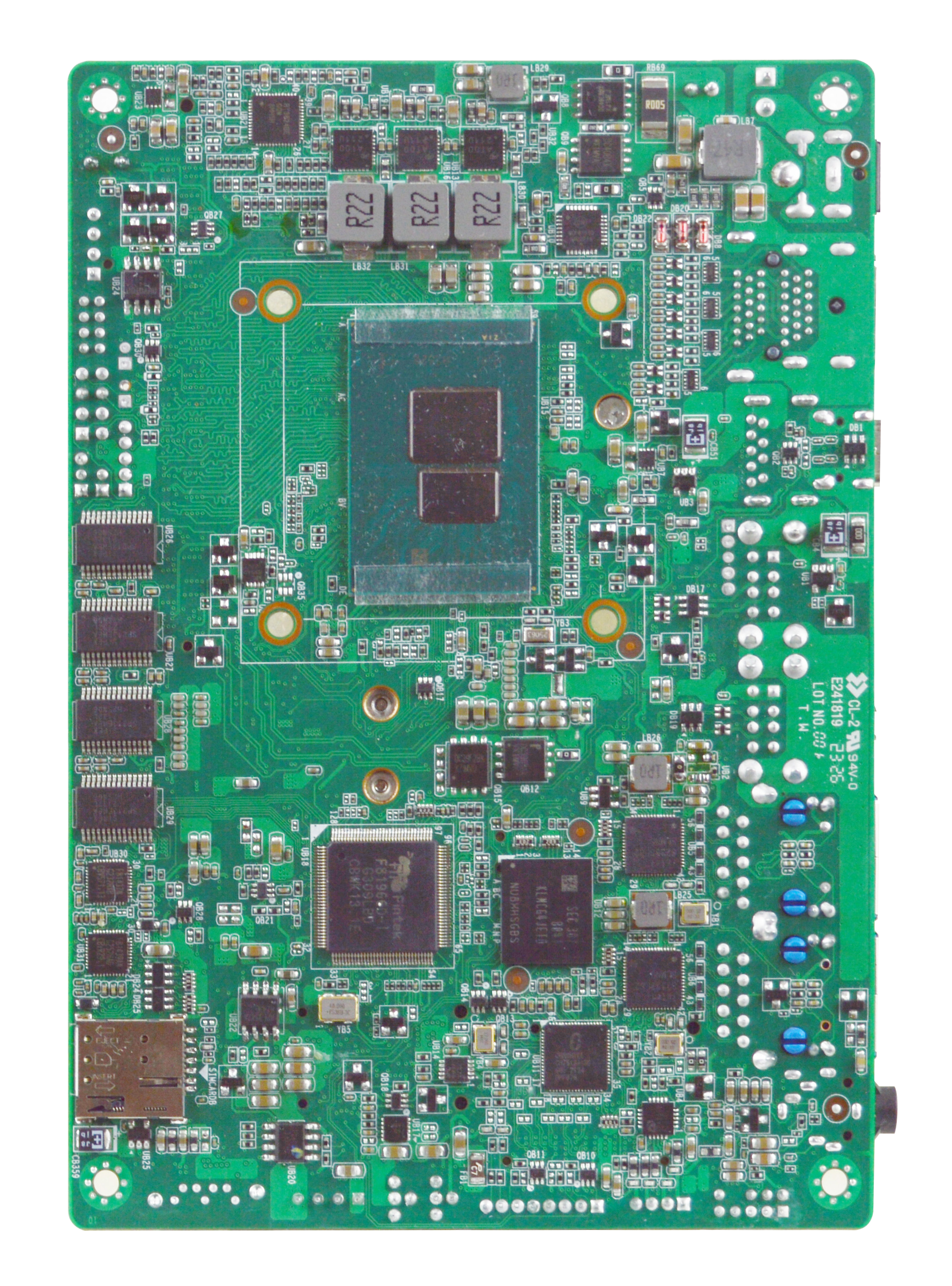

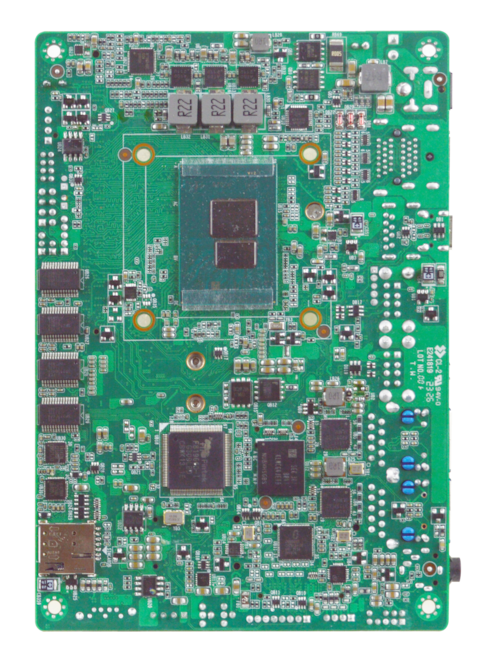

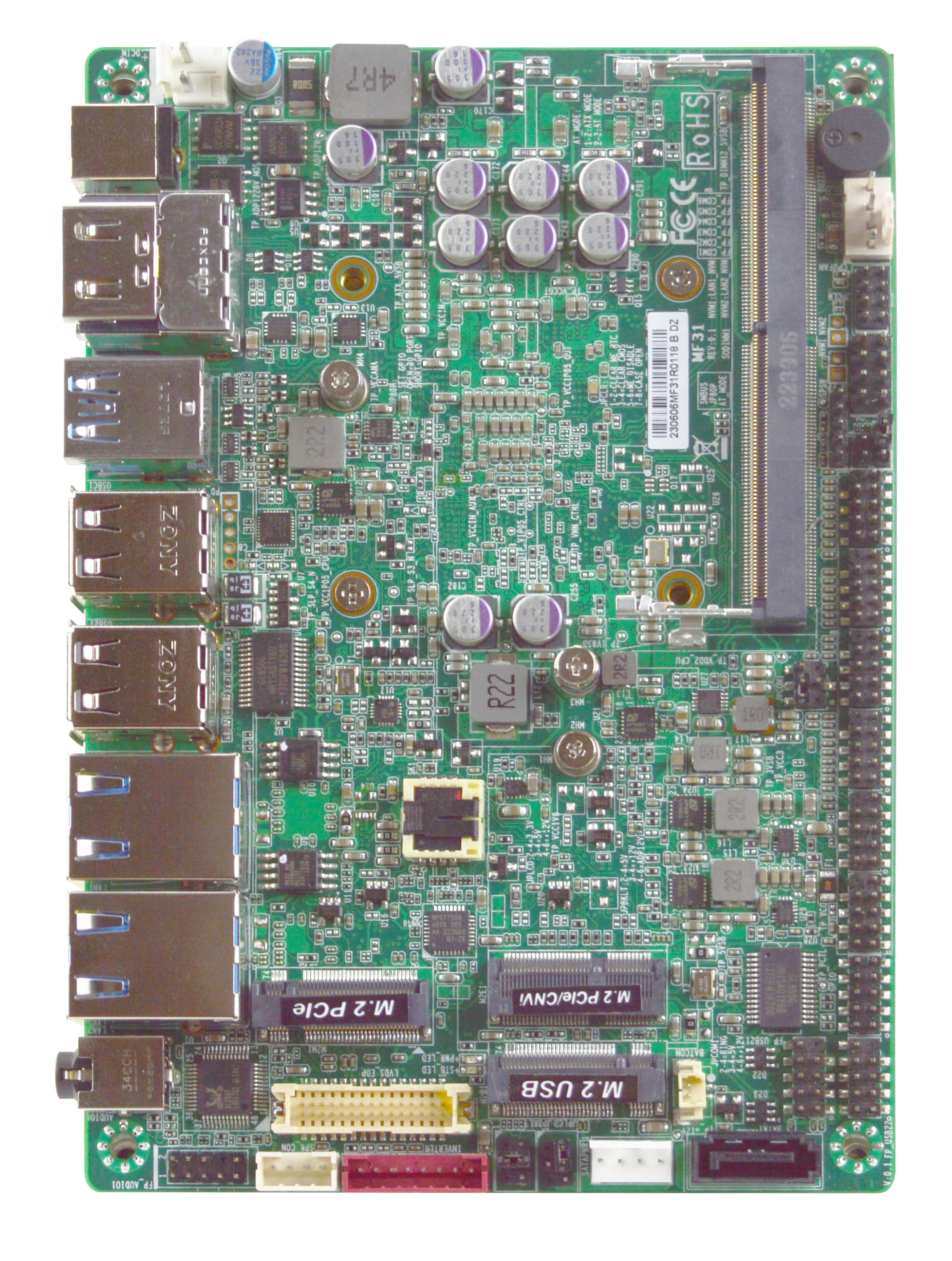

JF35-ADN1 from Jetway is a 3.5" form factor industrial motherboard. It runs on CPU Intel® Alder Lake-N97.

Intel® Alder Lake-NSoC Processor
1x DDR5 4800MHz SO-DIMM up to 16GB
Operating temperature 0~60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI, DisplayPort, LVDS, eDP
SATA 1x
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 12-24V
Operating temperature 0~60°C
Size (L x W x H) 148 x 102mm
Market Industrial
Form Factor 3.5"
Power Input 12-28V DC-in
Processor Intel® Alder Lake N N97 SoC Processor (TDP 12 W)
PCIe/mPCIe/PCI 1x M.2 M-key 2280, 1x M.2 B-key 3042/3052 1x M.2 E-key 2230

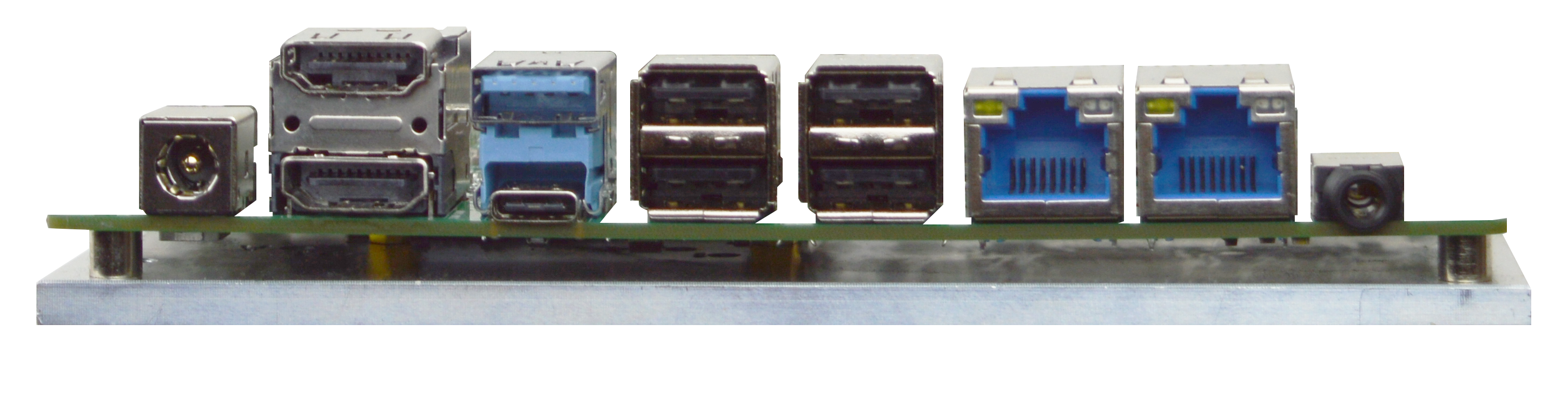

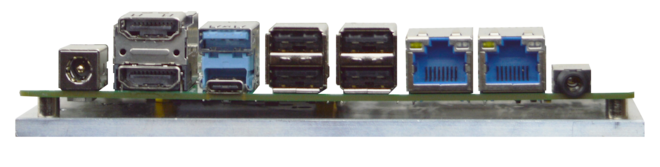

LAN/USB/COM 6x COM, 1x USB3.2 (gen2) Type-A,1x Type-C, 8x USB2.0, 2x RJ45
Video input 2x HDMI (max res. 4096x2160@60Hz), 1x LVDS/eDP (max res.: 1920x1200@60Hz), 1x DP 1.4a (max res.: 4096x2304@60Hz)
Interface 1x SATA III 6GB/s,
Size 148 x 102 mm
Operating temperature 0~60°C
Memory type 1x SO-DIMM DDR5 4800MHz up to 16GB
DDR SO-DIMM

Processor:

  • MF31-N9700 (CPU: N97, Default)
  • MF31-N9702 (CPU: N97,W/TPM2.0)
  • MF31-N9704 (CPU: N97,W/onboard 64GB eMMC)
  • MF31-N9708 (CPU: N97,W/TPM2.0, onboard 64GB eMMC)

Memory:

  • 1x SO-DIMM DDR5 4800MHz up to 16GB

Product features:

  • 6x COM, 1x USB3.2 (gen2) Type-A a Type-C, 8x USB2.0, 2x RJ45
  • 1x M.2 M-key 2280, 1x M.2 B-key 3042/3052, 1x M.2 E-key 2230
  • 1x SATA III (6GB/s)
  • 2x Intel®i225-V 2.5GbE
  • 2x HDMI (max res. 4096x2160@60Hz), 1x LVDS/eDP (max res.: 1920x1200@60Hz), 1x DP 1.4a (max res.: 4096x2304@60Hz)
  • 1x GPIO (8bit)

Usage:

  • Panel PC
  • IOT Solution
  • Edge computing
  • Industrial PC
