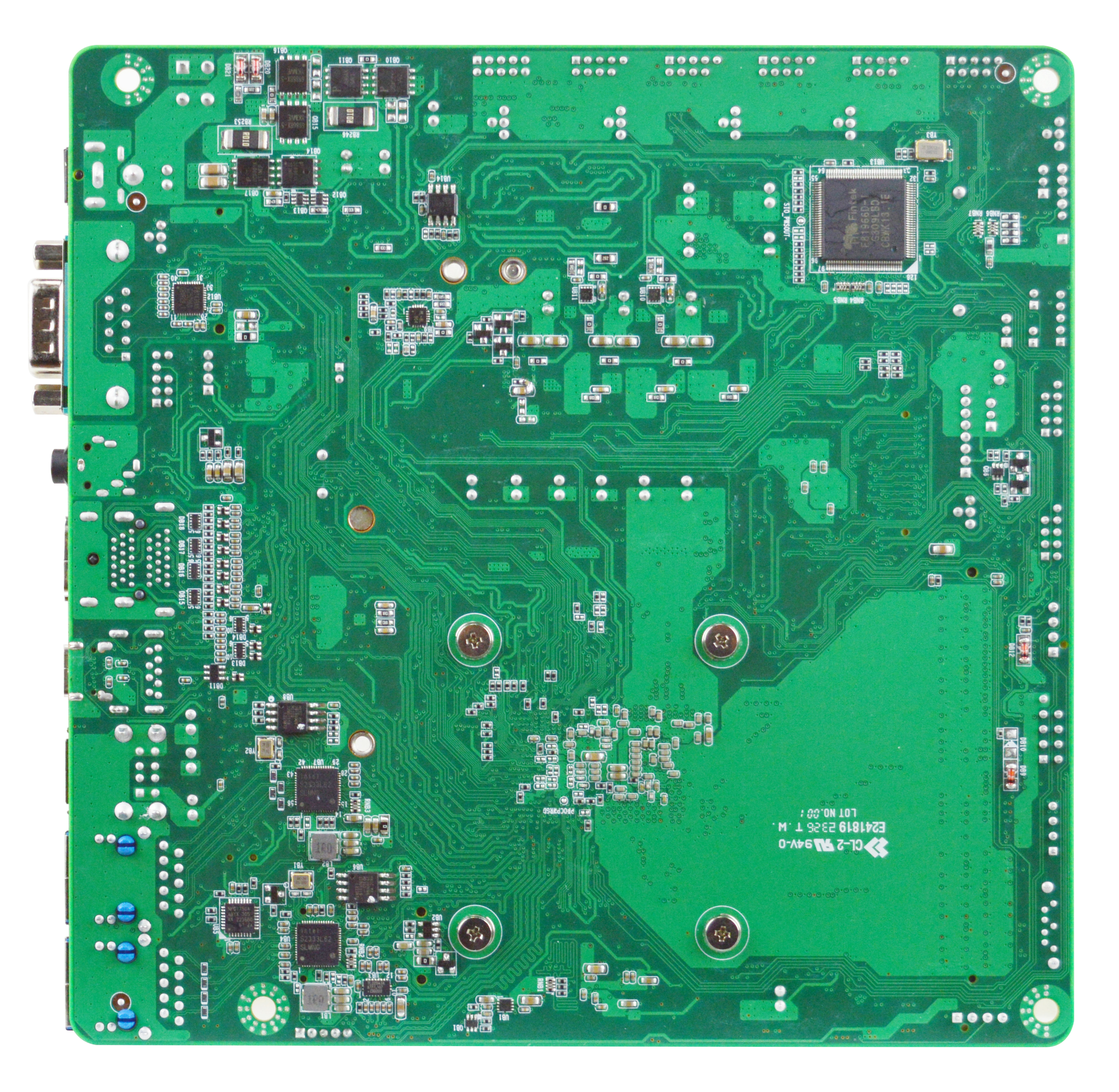

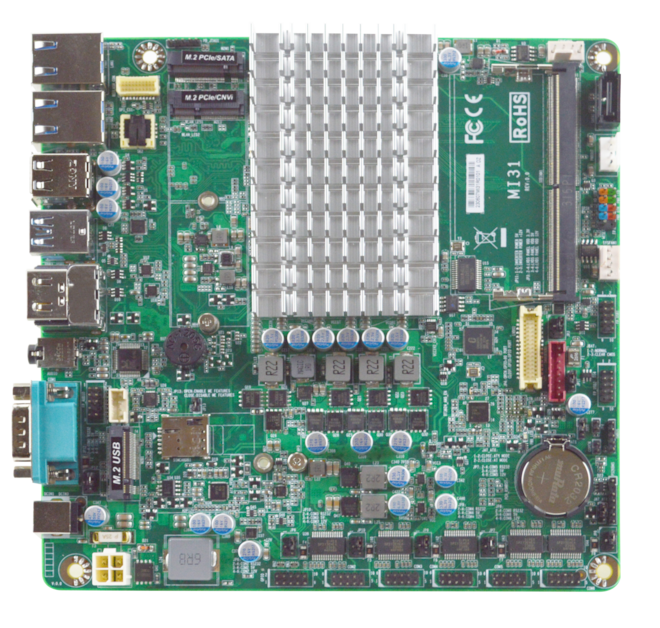

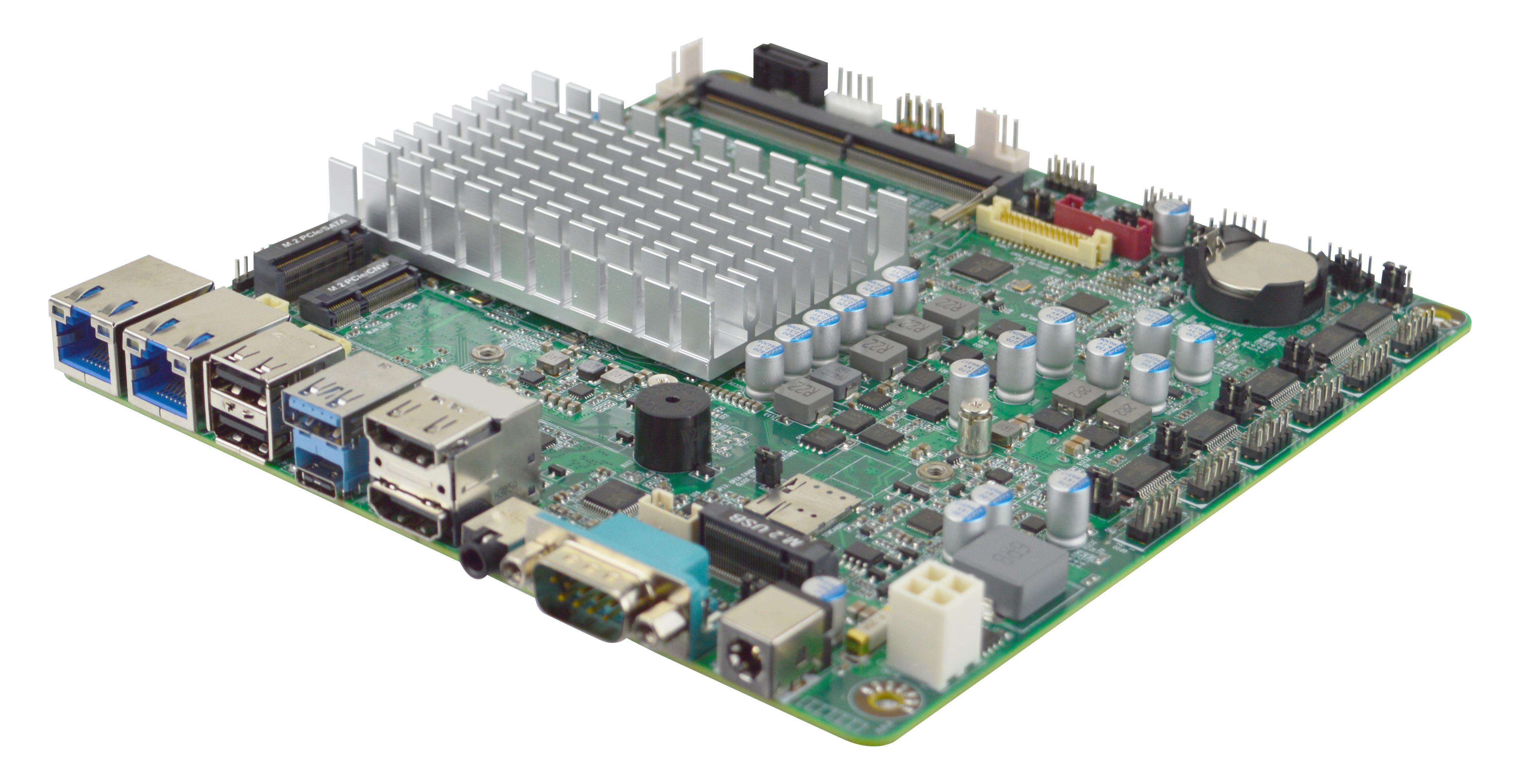

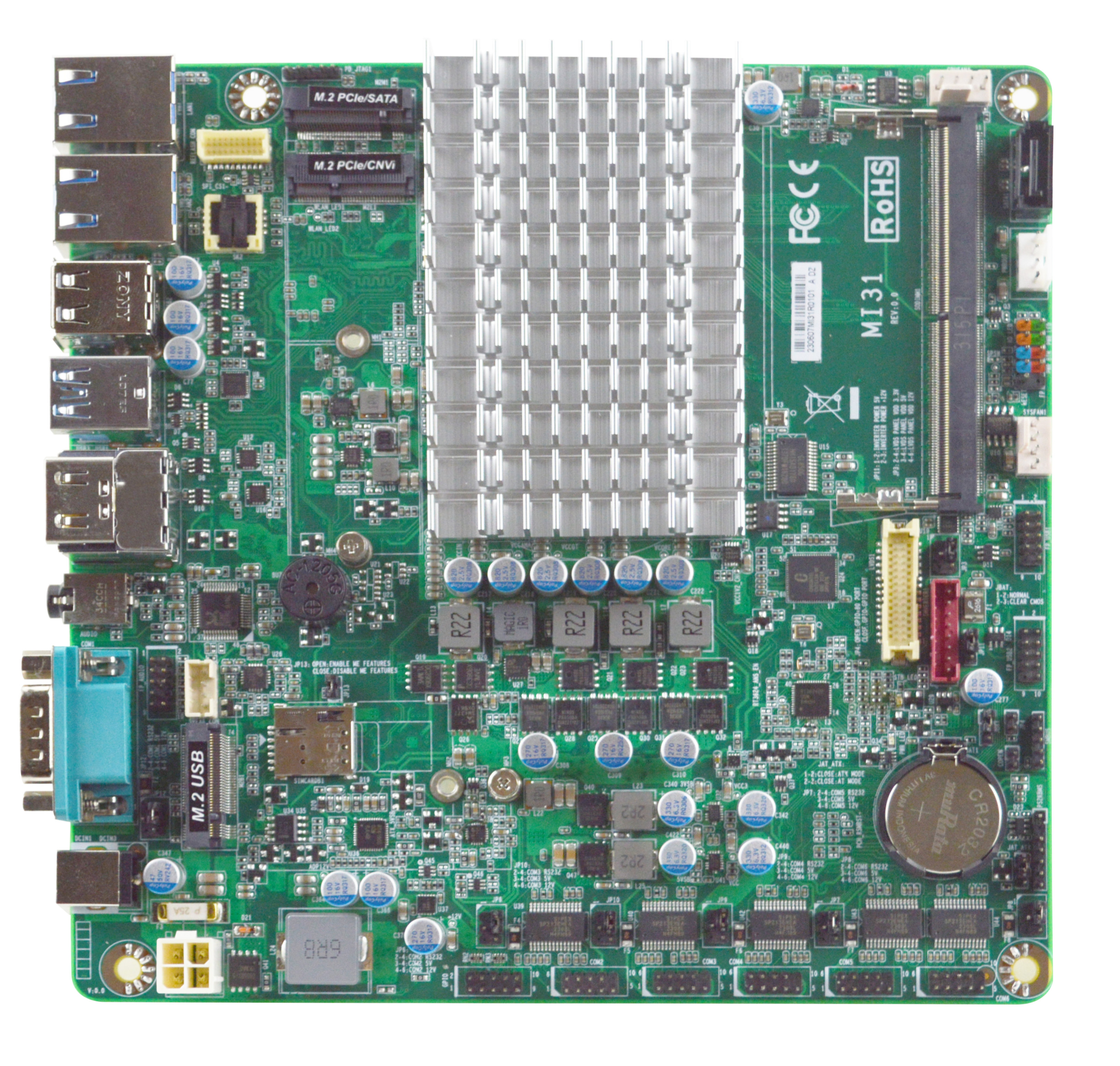

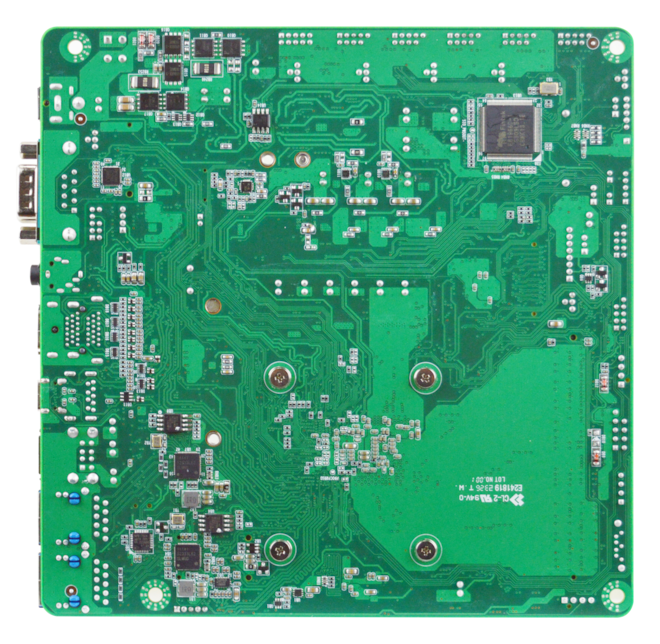

JMTX-ADN1-N97 Series

Catalog number: JMTX-ADN1-N97

JMTX-ADN1-N970 is industrial motherboard produced by Jetway. This Thin mITX motherboard with Intel Alder Lake is used in Digital signage and industrial PCs.

Intel® 12th Alder Lake-N SoC Processor
1x DDR5 4800MHz SO-DIMM up to 32GB
Operating temp.: 0°C ~ 60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI, LVDS, eDP
SATA 1x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 12-28V
Operating temperature 0~60°C
Size (L x W x H) 170 x 170mm
Market Industrial
Form Factor Thin mini-ITX
Power Input 12-28V DC-in, AT/ATX Supported
Processor Intel® 12th Alder Lake-N SoC Processor
PCIe/mPCIe/PCI 1x M.2 M-key, 2242/2280, 1x M.2 E-key, 2230, 1x M.2 E.key 3042/3052
LAN/USB/COM 1x USB3.2 (Gen.2), x USB3.2(Gen.2)Type-C, 6x USB2.0
Interface 1x SATAIII (6Gb/s)
Size 170 x 170 mm
Operating temperature 0~60°C
Memory type 1x DDR5 4800MHz SO-DIMM up to 32GB
DDR SO-DIMM

Processor:

  • Intel® 12th Alder Lake-N SoC Processor
  • AMI Flash ROM BIOS

Model:





  • JMTX-ADN1-N97000 (CPU: N97,Default)
  • JMTX-ADN1-N97002 (CPU: N97,w/TPM2.0)
  • JMTX-ADN1-N97004 (CPU: N97,w/onboard 64GB eMMC)
  • JMTX-ADN1-N97008 (CPU: N97,w/TPM2.0, onboard 64GB eMMC)

Memory:

  • 1x DDR5 4800MHz SO-DIMM up to 32GB

Product features:

  • 2x HDMI 2.0b (Max Resolution 4096x2304 @60Hz), 1x 24 Bit Dual Channel LVDS/eD (Max Resolution 1920x1200@60Hz)
  • Support Triple Displays
  • 2x Intel i225-V 2.5GbE
  • 1x USB3.2 (Gen.2), 1x USB3.2(Gen.2) Type-C, 6x USB2.0
  • 1x M.2 M‐key, 2242/2280, 1x M.2 E‐key, 2230, 1x M.2 B-key (3042/3052), 1x SATAIII (6Gb/s)
  • Onboard TPM2.0(Option)
  • 1x Nano SIM Card Slot
  • 1x GPIO
  • 12-28V DC in, AT/ATX Supported
  • Windows 10/11, Linux

Usage:

  • Industrial automation
  • Kiosks
  • Digital signage
  • POS
