JMTX-ADN8

Catalog number: JMTX-ADN8

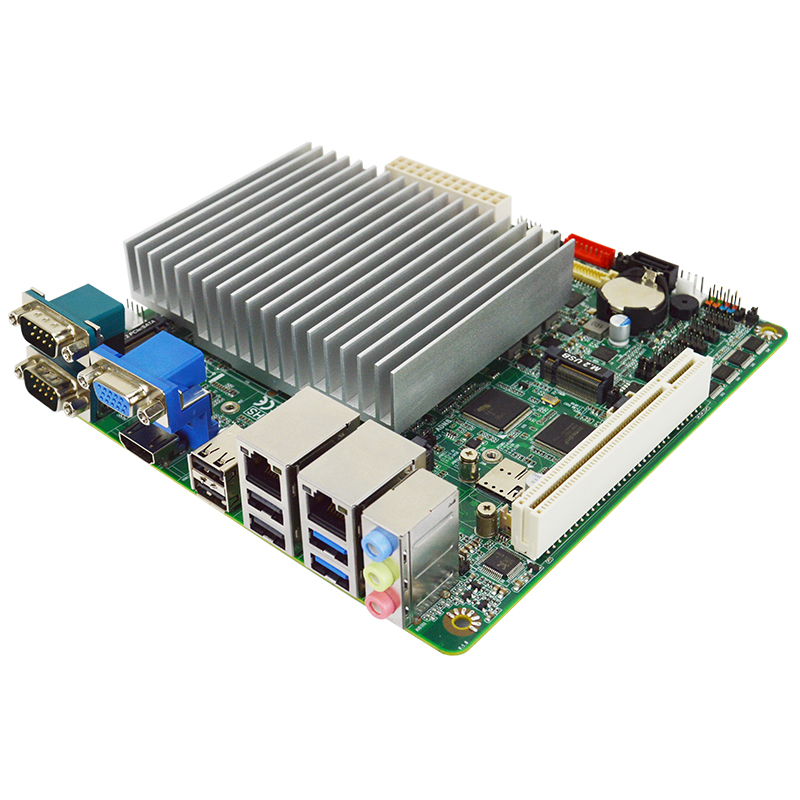

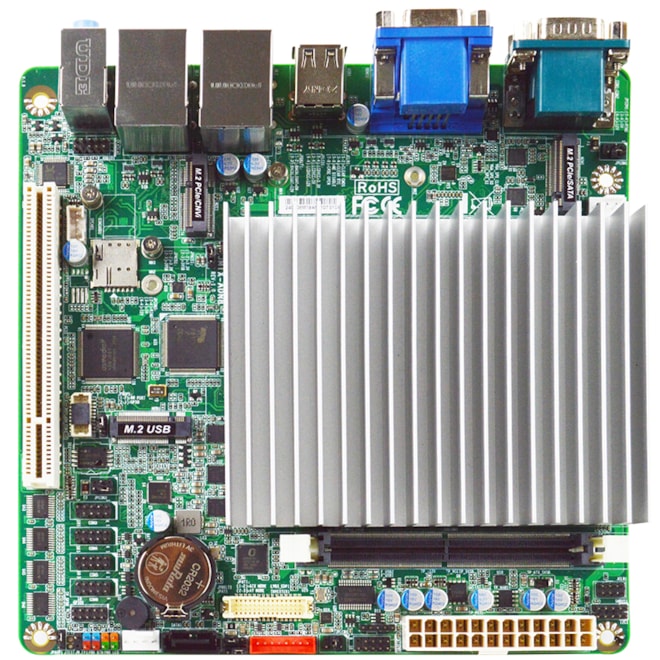

JMTX-ADN8 is industrial motherboard produced by Jetway. This mITX motherboard with SoC Intel N97 CPU could be used in Industrial Automation.

Intel® Processor N97
1x DDR5 4800MHz SO-DIMM up to 32GB
Operating temp.: -20°C ~ 60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output VGA, HDMI, LVDS, eDP
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input ATX 24pin
Operating temperature -20°C~60°C
Size (L x W x H) 170 x 170mm
Market Industrial
Form Factor mITX
Power Input ATX Power (24 pin header)
Processor Intel® Processor N97 - Alder Lake N
PCIe/mPCIe/PCI 1x PCI
LAN/USB/COM 2x RS232/422/485 (COM1 support 5V/12V selectable), 2x USB3.2 Gen1, 7x USB2.0 (3x by header)
Video input Three Independent Display: 1x HDMI 2.0b, 1x VGA, 1x LVDS/eDP
Interface 1x M.2 2242/2280 M-key, 1x M.2 2230 E-key, 1x M.2 3042/3052 B-key, 1x SATAIII
Size 170 x 170 mm
Operating temperature -20~60°C
Memory type 1x 4800MHz DRAM SO-DIMM up to 32GB
DDR DDR5

Processor:

  • Intel® Processor N97 - Alder Lake N

Model:

  • JMTX-ADN8-N97000
  • JMTX-ADN8-N97002 (TPM 2.0)
  • JMTX-ADN8-N97004 (eMMC 64GB)
  • JMTX-ADN8-N97008 (TPM 2.0, eMMC64GB)

Memory:

  • 1x DDR5 4800MHz DRAM SO-DIMM up to 32GB

Product features:

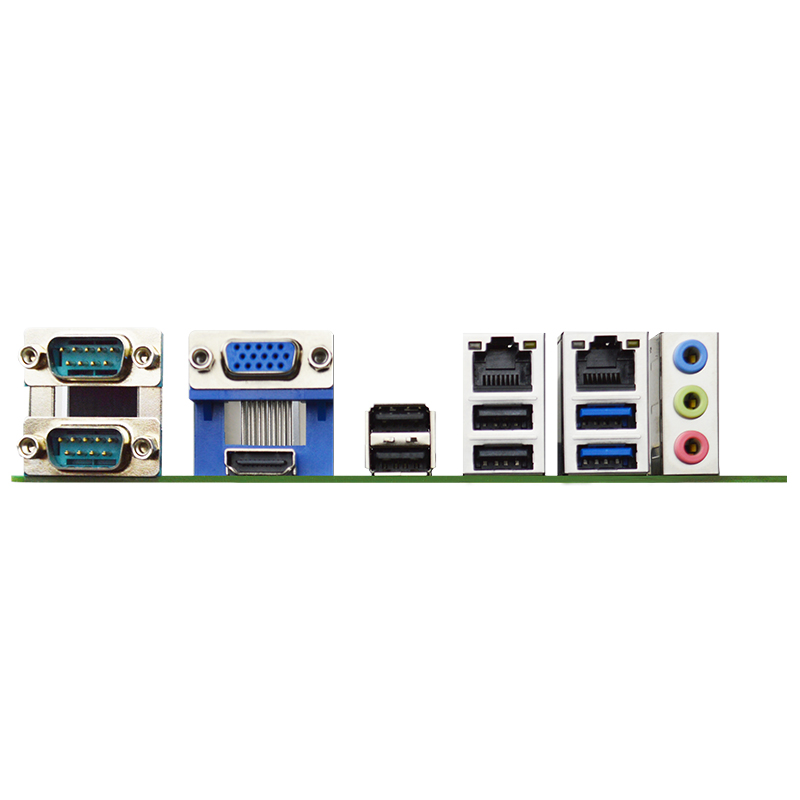

  • 2x RS232/422/485 (COM1 support 5V/12V selectable), 2x USB3.2 Gen1, 7x USB2.0 (3x by header)
  • 2x 1GbE
  • 1x M.2 2242/2280 M-key, 1x M.2 2230 E-key, 1x M.2 3042/3052 B-key, 1x SATAIII
  • Three Independent Display: 1x HDMI 2.0b, 1x VGA, 1x LVDS/eDP
  • Support Four Displays
  • 1x PCI
  • ATX Power (24 pin header)
  • support TPM2.0 (option)

Usage:

  • Industrial Automation
