JPIC-ADN1 Series

Catalog number: JPIC-ADN1

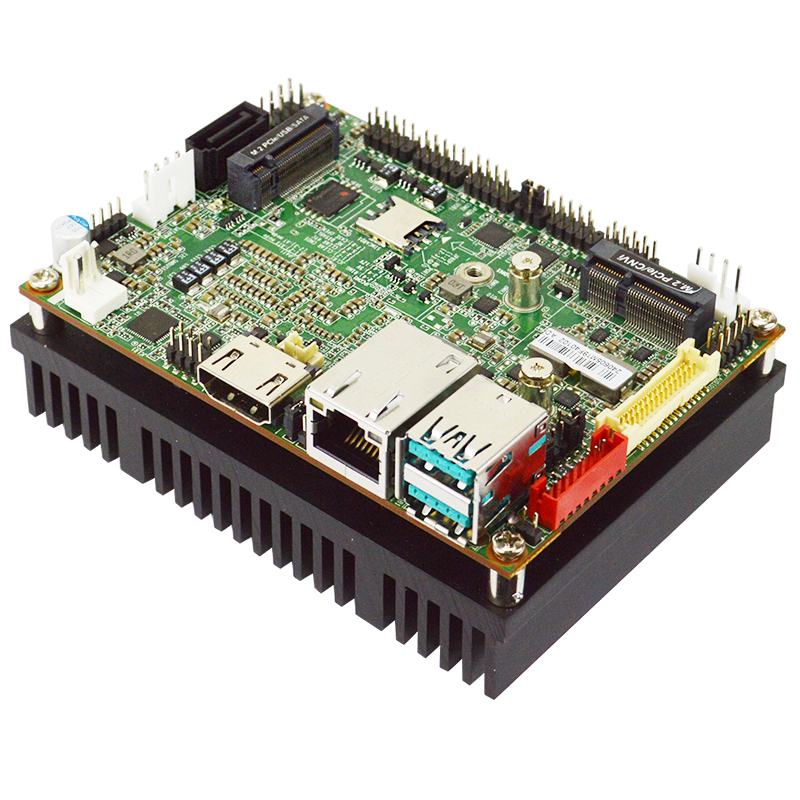

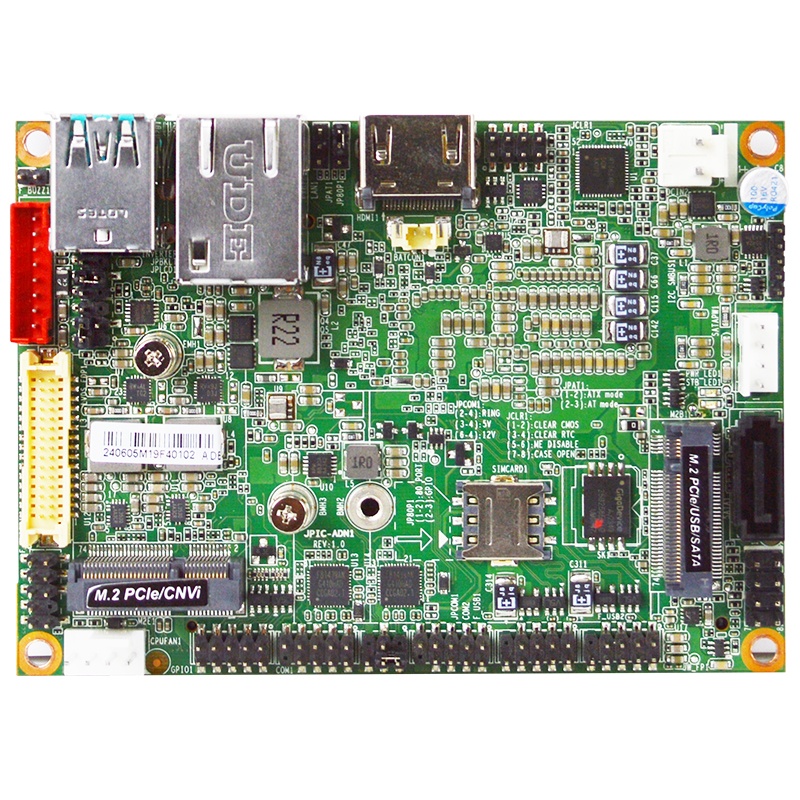

JPIC-ADN1 Series from Jetway is a compact small industrial picoITX motherboard based on Intel N-series processors. Usage of this industrial motherboard is in display signage and other industries.

Intel N-series
1x DDR5 4800MHz SO-DIMM up to 32GB
Dual display support
Operating temperature: -20~60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI, LVDS, eDP
SATA 1x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 12V
Operating temperature -20°C~60°C
Size (L x W x H) 100 x 72mm
Market Digital Signage
Power Input 12V DC-in
Processor Onboard Intel® Processor N97 / Intel® Processor N200

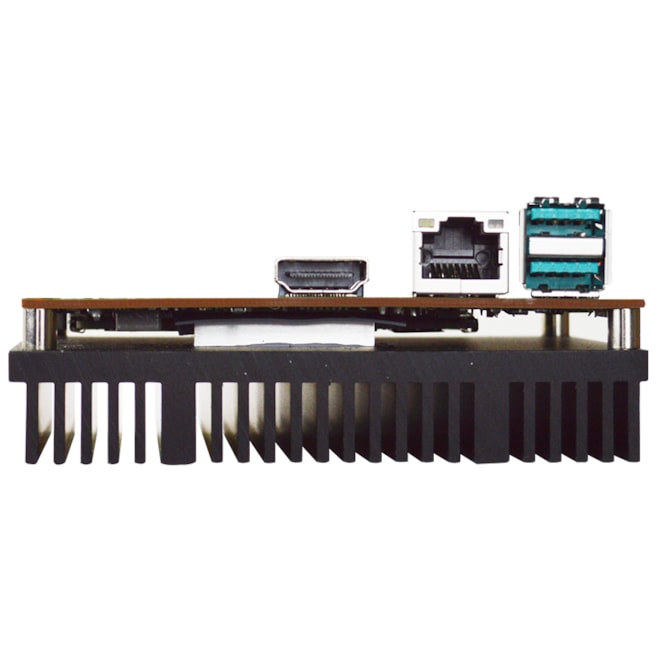

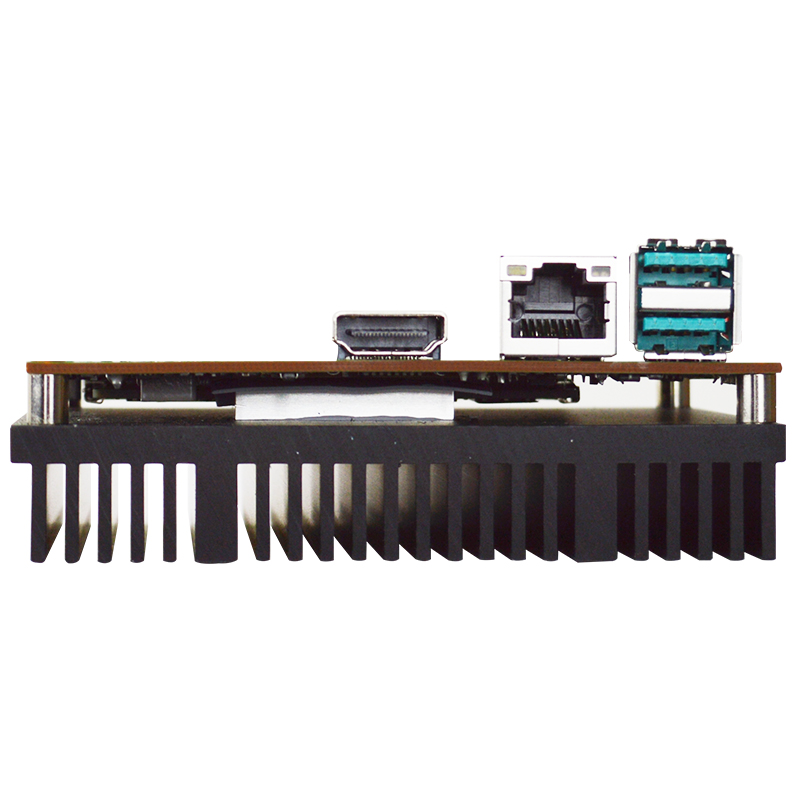

LAN/USB/COM 4x USB2.0, 3x USB3.2 Gen2, 2x RS-232/422/485, 1x RJ45
Video input 1x HDMI + 1x LVDS Co-lay with eDP2.0
Interface 1x SATAIII, 1x M.2 B+M-key (2242/3042/3052), 1x M.2 E-key 2230, 1x Nano SIM slot
Size 100 x 72 mm
Operating temperature -20 ~ +60°C
Memory type up to 32GB 4800MHz
DDR SO-DIMM DDR5

Processor system:

  • Onboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W)

  • Onboard Intel® Processor N200 (Formerly Alder Lake-N, TDP 6W)

Memory:

  • 1x DDR5 4800MHz SO-DIMM up to 32GB

Product features:

  • 1x SATAIII
  • 1x M.2 B+M-key (2242/3042/3052, USB 3.2/SATA3/PCIe 3.0 x2), 1x M.2 E-key 2230
  • 1x Nano SIM slot
  • 1x HDMI for 4K (Max res.: 4096x2160@60Hz) + 1x LVDS Co-lay with eDP2.0 (Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
  • Support dual displays
  • 4x USB2.0, 3x USB3.2 Gen2, 2x RS-232/422/485
  • Enhanced security: supports Intel fTPM

Usage:

  • Display signage
  • Machine learning
  • Kiosks
  • Industrial automation
