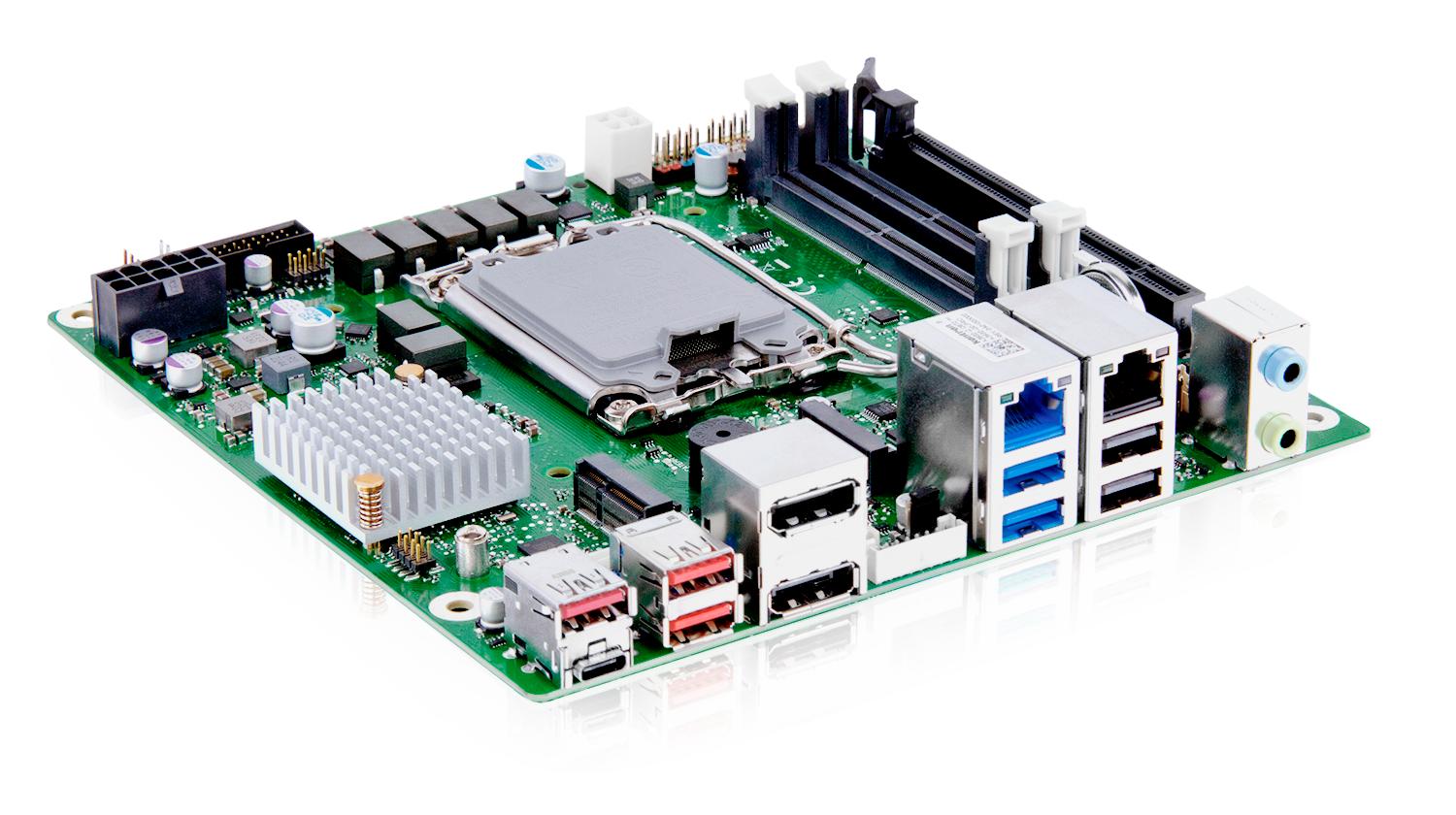

K3832-Q mITX Kontron
Catalog number: F5120-V195
K3833-Q is industrial motherboard made in Germany from Kontron. This mITX runs 12./13. /14./processor Series 2 (Bartlett Lake) Gen CPU with Q670E chipset and is used in Industrial automation, Medical equipment.
mini-ITX, Intel Q670E Chipset
LGA1700 12/13th/14th/processor Series 2 (Bartlett Lake) Gen Core i3 / i5 / i7 / i9 Processors
Latest DDR5 memory technology for best-in-class system performance
Industrial Series
Product parameters
| Manufacturer | KONTRON |
|---|---|
| Video output | DisplayPort, LVDS, eDP |
| Software support | Linux, Windows |
| Audio | Microfone input, Audio output |
| Memory type | M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E |
| Power Input | DC 12V |
| Operating temperature | 0~60°C |
| Size (L x W x H) | 170 x 170mm |
| Market | Industrial mainboard |
| Form Factor | miniITX |
| Power Input | 12V DC in |
| Processor | Intel® CoreTM i9/i7/i5/i3 (12/13/14th/processor Series 2 (Bartlett Lake) Gen), processor series Intel® Pentium®/Intel® Celeron® processor series, Socket LGA1700, max. 65 W TDP |
| PCIe/mPCIe/PCI | PCI Express® x16 (Gen5), 1x M.2 2242 (Key-M, PCIe/NVME SSD modules), 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support) |

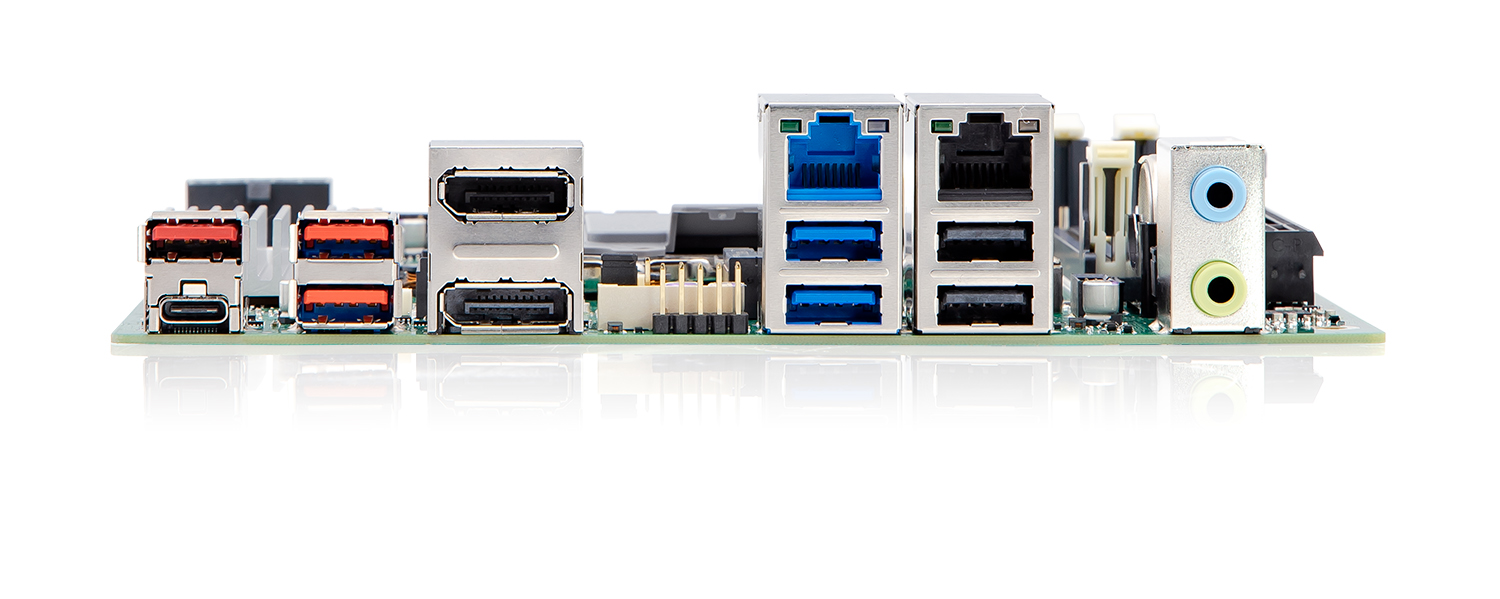

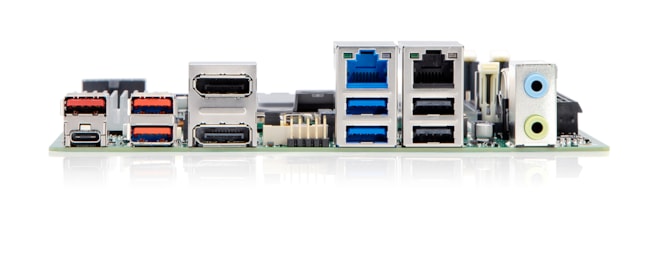

| LAN/USB/COM | 4x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 2x USB 2.0, 8 Bit GPIO; 1x COM port |
| Interface | 2x SATA 6G incl. RAID support |
| Size | 170 x 170 mm |
| Operating temperature | 0-60 °C |
| Memory type | 2x DDR5 4800 MHz, up to 64Gbyte, non-ECC |
| DDR | SO-DIMM |
Processor:
- Intel® CoreTM i9/i7/i5/i3 (12/13th/14th/processor Series 2 (Bartlett Lake) Gen) processor series
- Intel® Pentium®/Intel® Celeron® processor series
- Socket LGA1700, max. 65 W TDP
Memory:
- 2 SODIMM Sockets DDR5-4800, max. 64 GByte, Dual Channel unbuffered, non-ECC
Product Features:
- cTDP – Easy & flexible reduction of CPU TDP
- Supporting Intel® iAMT features and Intel® Time Coordinated Computing (TCC)
- PCI Express® x16 (Gen5)
- 1x Intel® GbE LAN, 1x 2.5GbE incl. Teaming and TSN
- Intel® UHD Graphics 7xx driven by Xe Architecture; 4x DisplayPort V1.4a @4k; 1x eDP V1.4b
- Intel® High Definition 5.1 Audio; Intel® integrated TPM V2.0
- 8 Bit GPIO; 1x COM port
- 4x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 2x USB 2.0
- 2x SATA 6G incl. RAID support
- 1x M.2 2242 (Key-M, PCIe/NVME SSD modules)
- 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
- BIOS-POST/-Boot & OS – HW Watchdog onboard
Usage:
- Casino Gaming, Medical Displays, Industrial PCs
- Designed for 24/7 use, with enhanced temperature range, up to 60°C
