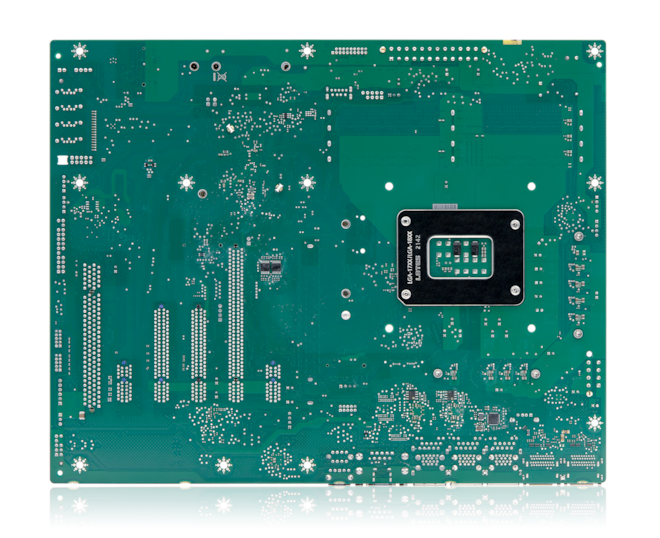

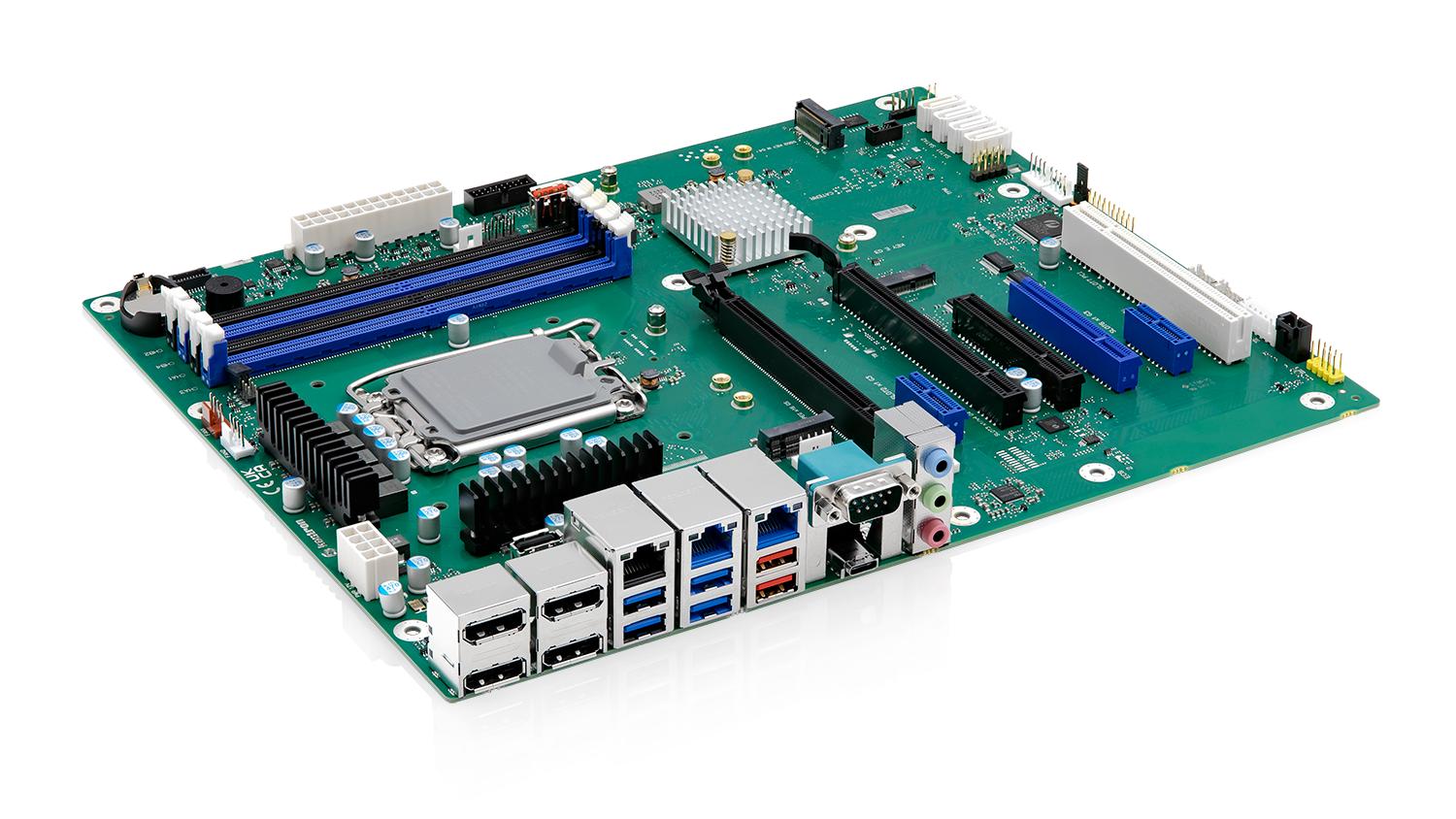

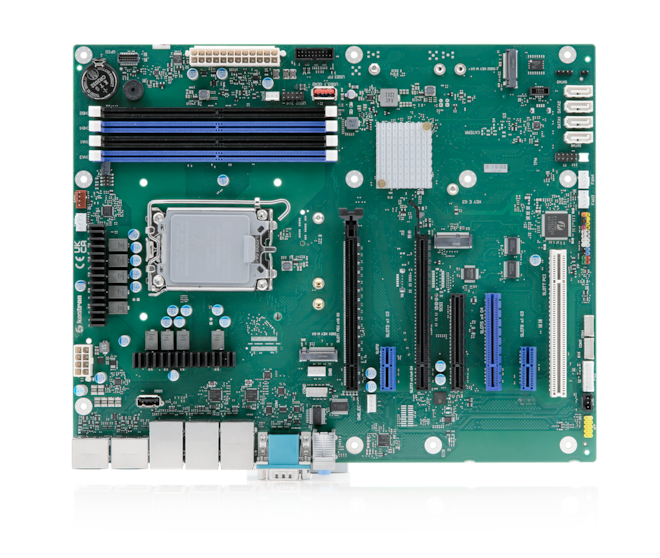

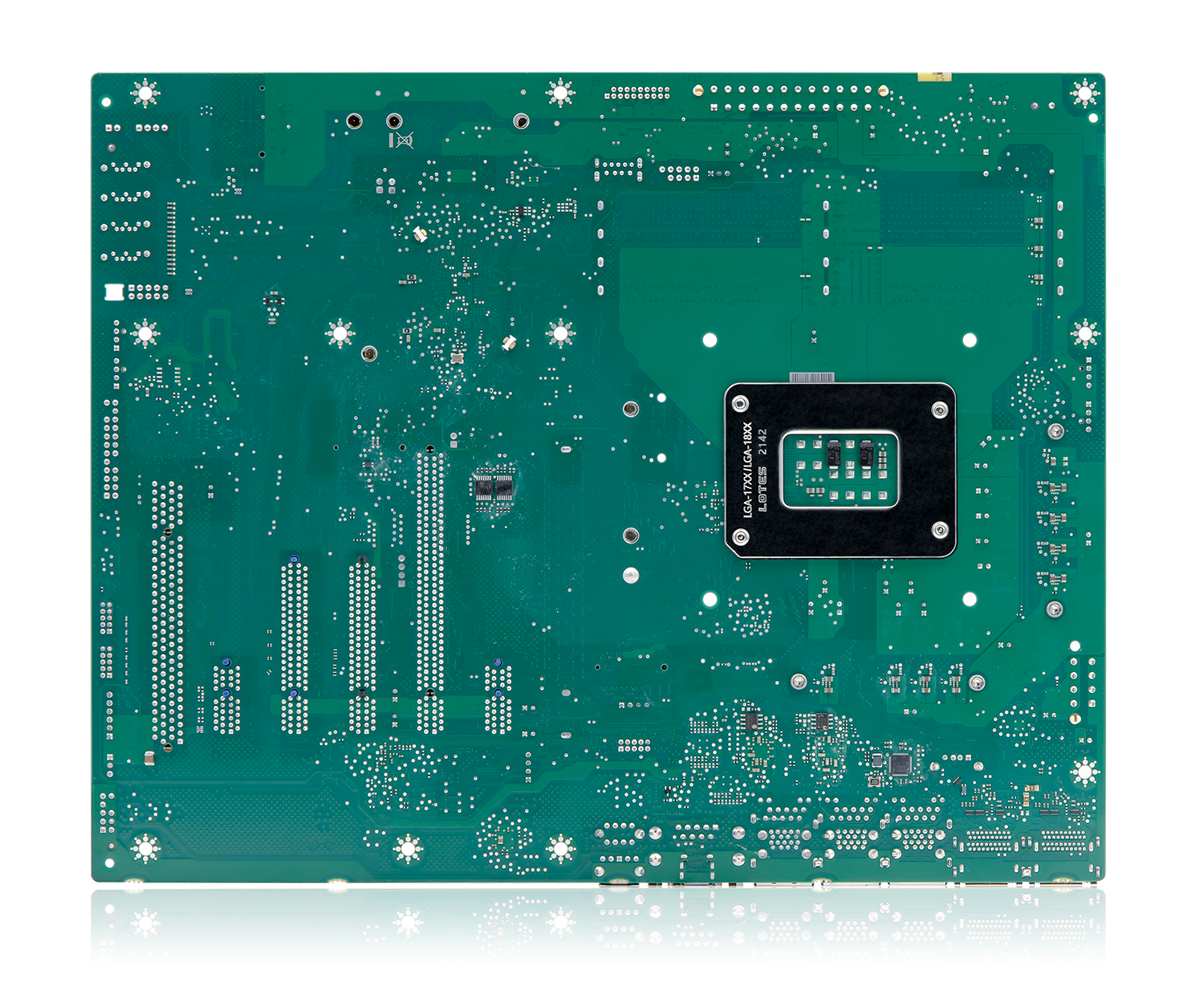

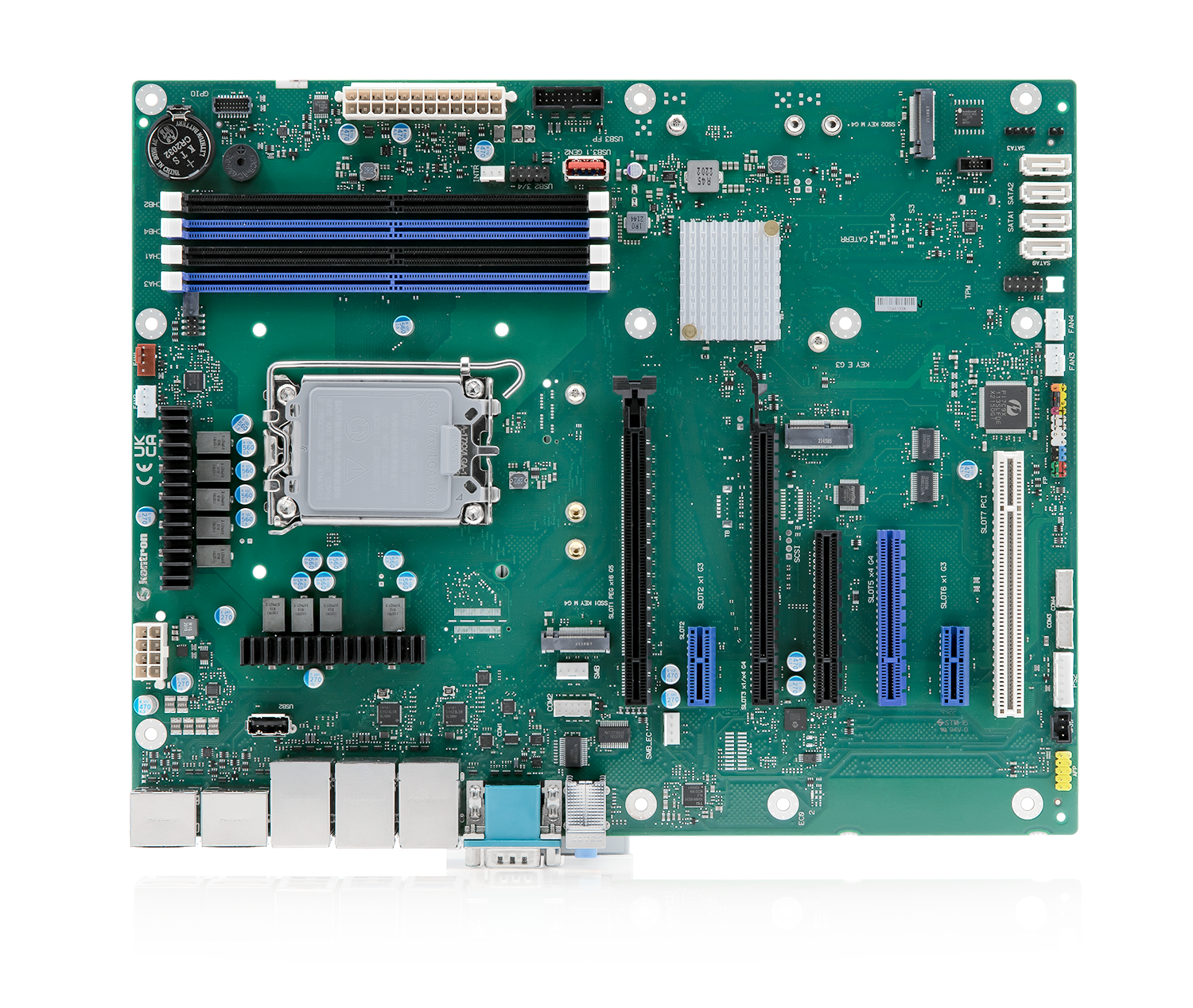

K3851-R ATX Kontron
Catalog number: F5110-V194
K3851-R is industrial motherboard produced in Germany from Kontron. This ATX motherboard with CPU Intel Alder Lake R680E or CPU Series 2 (Bartlett Lake) is used in Industrial automation,video
ATX, Intel R680E
LGA1700 12/13th/14th/Series 2 (Bartlett Lake) gen.
DDR5 4800 128GB
Industrial Series
Product parameters
| Manufacturer | KONTRON |
|---|---|
| Video output | DisplayPort |
| SATA | 1x, 2x, 3x, 4x |
| Software support | Linux, Windows |
| Audio | Microfone input, Audio output |
| Memory type | M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E |
| Operating temperature | 0~60°C |
| Size (L x W x H) | 305 x 244mm |
| Market | Industrial mainboard |
| Form Factor | ATX |
| Power Input | ATX (Multirail) plus 8-pin socket (12 V for CPU) |
| Processor | 12/13th/14th/Series 2 (Bartlett Lake) Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron |
| PCIe/mPCIe/PCI | 1x PCIe x16, 2x PCIe x8, 2x PCIe x1, 1x PCI 32Bit slot, 1x M.2 2230 (E key), 2x M.2 2230/2242/2280 (M key) |

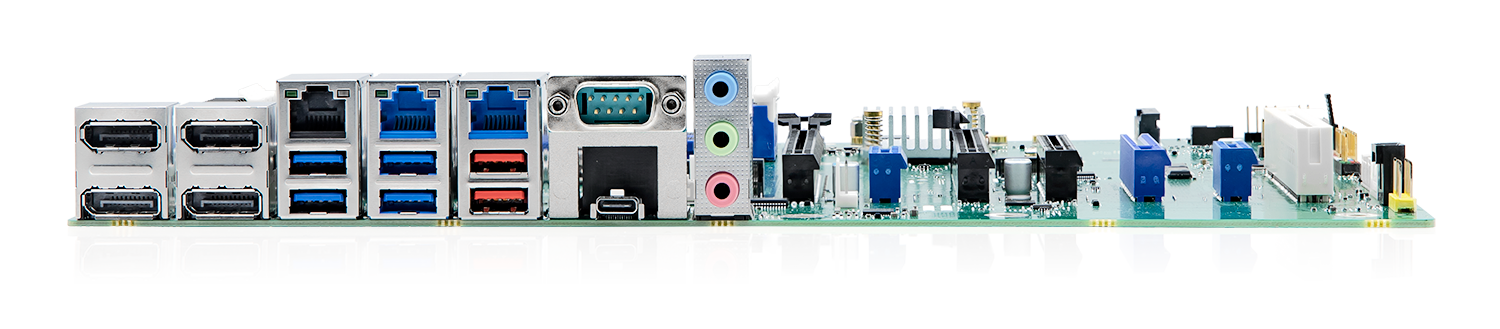

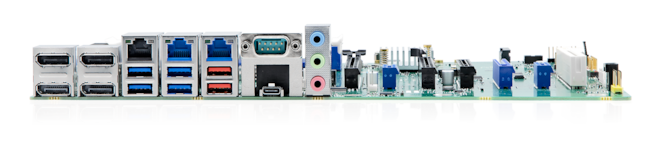

| LAN/USB/COM | 3x RJ45, 6x USB 3.2 Gen1 (2x by header), 2x USB 3.2 Gen2, 1x USB 3.2 Gen2 Type-C, 2x USB 2.0 (by header), 4x COM (3x by header) |
| Interface | 4x SATA 6Gb/s Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10 |
| Size | 243.8 x 304.8 mm |
| Operating temperature | 0 ~ +60°C |
| DDR | DDR5-4800 |
Processors:
- Intel® Core™ i9/i7/i5/i3 (12/13th/14th/Series 2 (Bartlett Lake) Gen) processor series
- Intel® Pentium®/Intel® Celeron® processor series
- Socket LGA1700, max. 125 W TDP
- Intel® R680E Chipset
Memory:
- 4 DIMM Sockets DDR5-4800, max. 128 GByte, Dual Channel unbuffered, ECC support
- Effective memory speed of DDR5-4800 modules according Intel® specification:
- 1x DIMM per channel = max. DDR5-4400
- 2x DIMM per channel (single rank) = max. DDR5-4000
- 2x DIMM per channel (dual rank) = max. DDR5-3600
Product features:
- Intel® UHD Graphics 7xx driven by Xe Architecture; 4x DisplayPort V1.4a @4k
- Intel® High Definition 5.1 Audio; Intel® integrated TPM V2.0
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH), PCI Slot (32 Bit)
- 1x Intel® i219LM 1GbE LAN, 2x Intel® i225LM 2.5GbE incl. Teaming and TSN
- 8 Bit GPIO; 4 x COM ports
- 3x USB 3.2 Gen 2, 6x USB 3.2 Gen1, 2x USB 2.0, 1x USB 3.2 Gen2 stick socket, 1x USB 2.0 stick socket
- 4x SATA 6G incl. RAID support
- 2x M.2 2230/2242/2280 (Key-M, PCIe/NVME SSD modules), incl. NVME RAID support
- M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
- Supporting Intel® iAMT features and Intel® Time Coordinated Computing (TCC)
- cTDP – Easy & flexible reduction of CPU TDP
- BIOS-POST/-Boot & OS – HW Watchdog onboard
- 24/7 OPERATION TEMPERATURE 0°C - 60°C
Usage:
- Video, Vision, Industrial Automation, Medical Equipment, Building Automation
