    K3882-C µATX Kontron

    Catalog number: F5110-V262

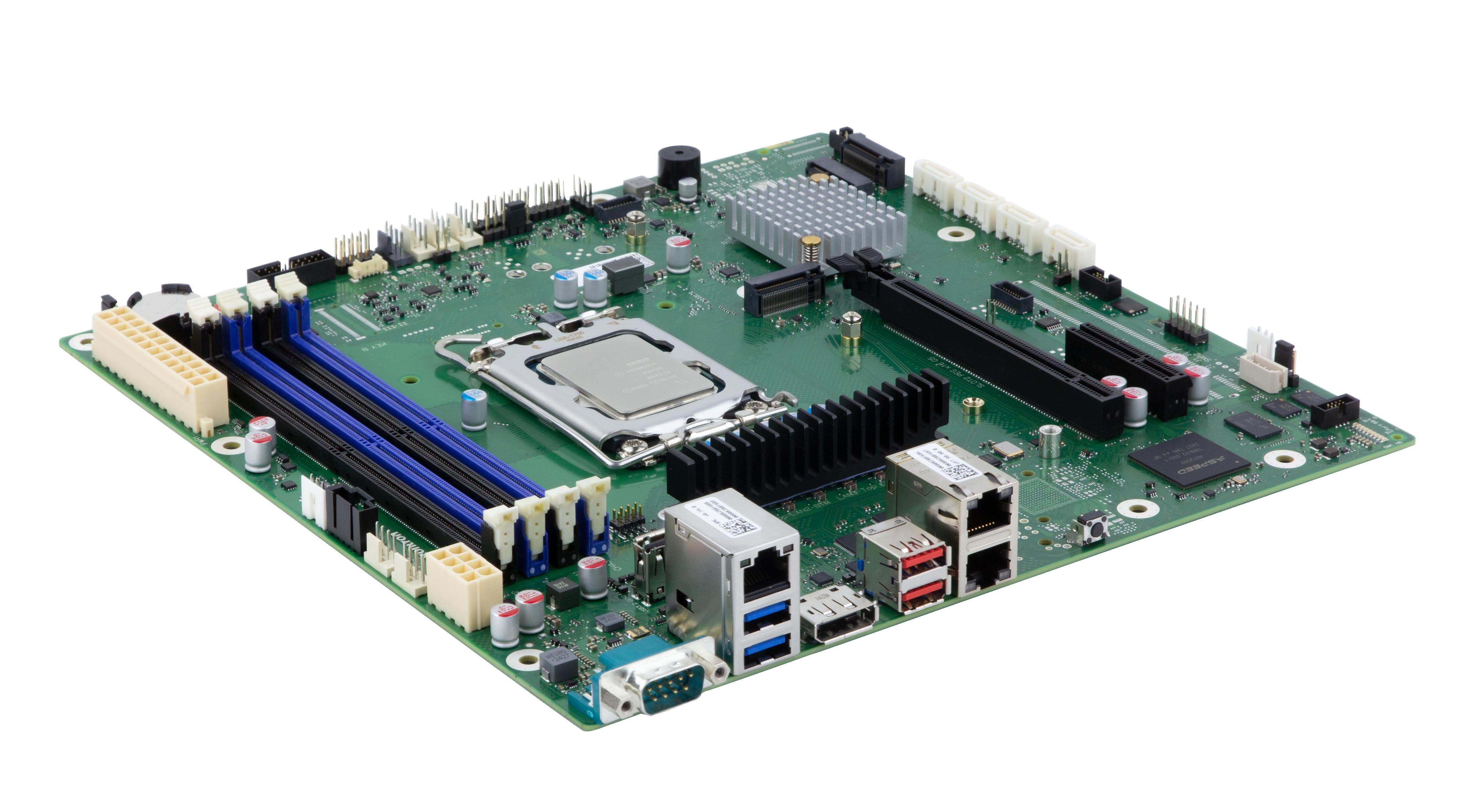

    K3882-C is industrial server motherboard made by Kontron. It is micro ATX format supporting Intel Xeon, Pentium CPUs on a C266 chipset.

    • µATX, C262 Chipset
    • LGA 1700, max 95W TDP
    • DDR5 UDIMM, up to 128GB, ECC
    • Industrial server board
    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer KONTRON
    Video output DisplayPort
    SATA 1x, 2x, 3x, 4x
    Software support Linux, Windows
    Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
    Power Input ATX 8pin, ATX 24pin
    Operating temperature 0~60°C
    Size (L x W x H) 244 x 244mm
    Market Sever motherboard
    Form Factor µATX
    Power Input µATX (Multirail) 24- pin plus 8-pin socket (12V for CPU)
    Processor Intel® Xeon, Pentium processor
    PCIe/mPCIe/PCI 1x PCIe x16 Gen5, biffurication support + 1x PCIe x1 + 1x PCIe x4, 2x Key-M + 1x Key-B + 1x Key-E
    LAN/USB/COM 4x USB 3.2 Gen1 (2x optional), 2x USB 3.2 Gen2, 1x RS232 (rear I/O, DB9 connector)
    Interface 4x SATA III Interface (up to 6GBit/s)
    Size 243.8 x 243.8 mm
    Operating temperature 0 ~ +60°C
    Memory type up to 128GB, ECC support
    DDR DDR5-5600MHz

    Processor:

    • Intel® XEON® 6300 series Processors
    • Intel® XEON® E-2400 series Processors
    • Pentium® Gold G7400T / G7400 processors
    • Intel C262 Chipset, Socket LGA1700, max 95W TDP

    Memory:

    • 4x UDIMM DDR5 5600 MHz, až 128 GB,
    • Podpora ECC

    Features:

    • 1 DisplayPort 1.1a, ASPEED AS2600 Video Graphic Adapter2
    • 4x USB 3.2 Gen1 (2x optional), 2x USB 3.2 Gen2, 1x RS232 (rear I/O, DB9 connector)
    • 4x SATA III Interface (up to 6GBit/s), NCQ, AHCI, Intel VROC SATA RAID 0/1/5/10
    • 1x M.2 2230/2280/22110 (Key-M ,PCIe x4 Gen4/NVMe)
    • 1x M.2 2280/22110 (Key-M ,PCIe x4 Gen4/NVMe)
    • 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, PCIe)
    • 1x PCIe x16 lanes Gen5, biffurication support + 1x PCIe x1 Gen4 (open slot)
    • TPM V2.0 onboard
    • Linux-64, Windows Server 2022 + 2025
    • Operating temperature: 0 °C - 60 °C

    Usage:

    Sever, AI computing, 24/7 operation
