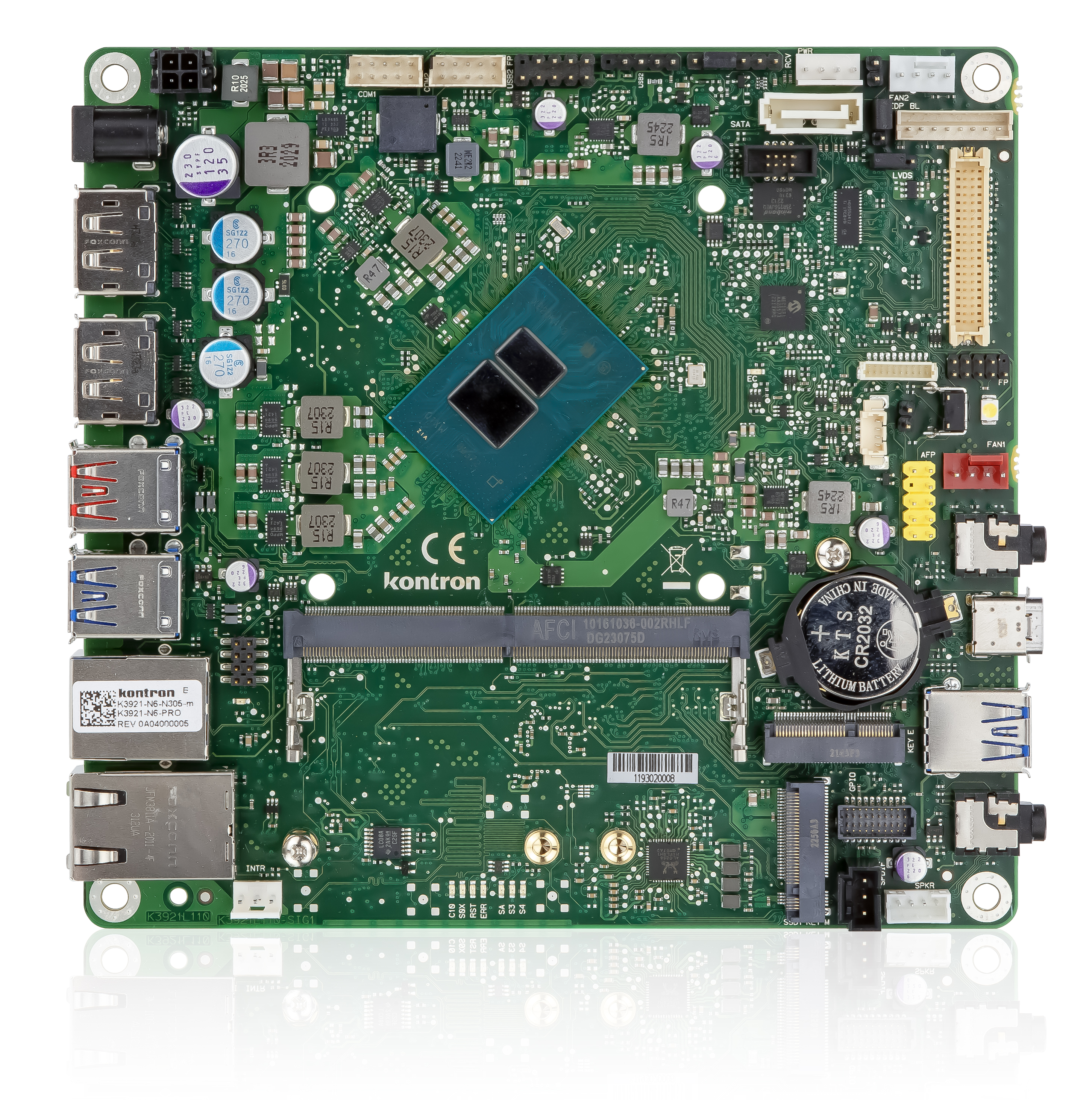

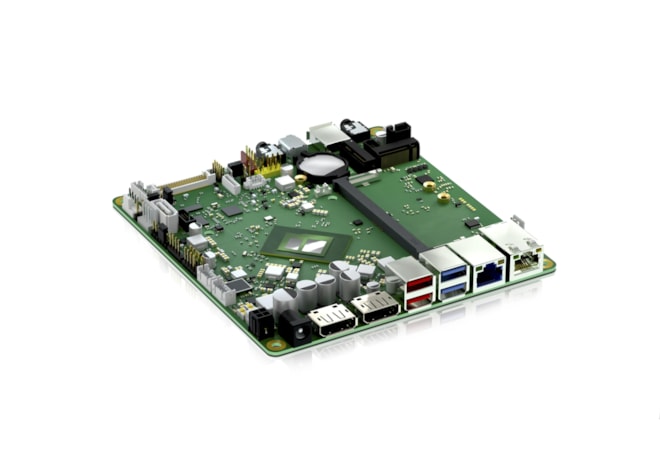

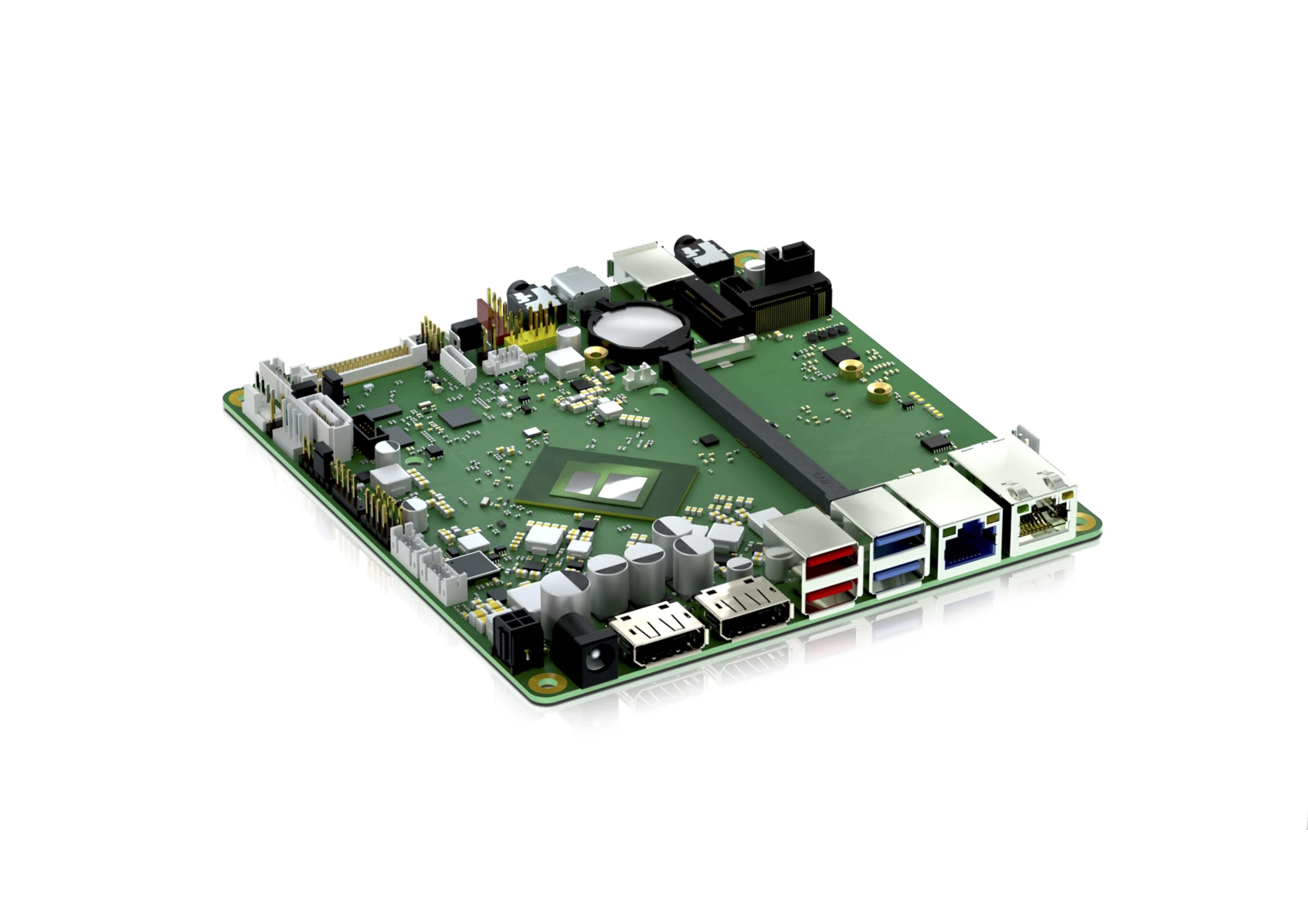

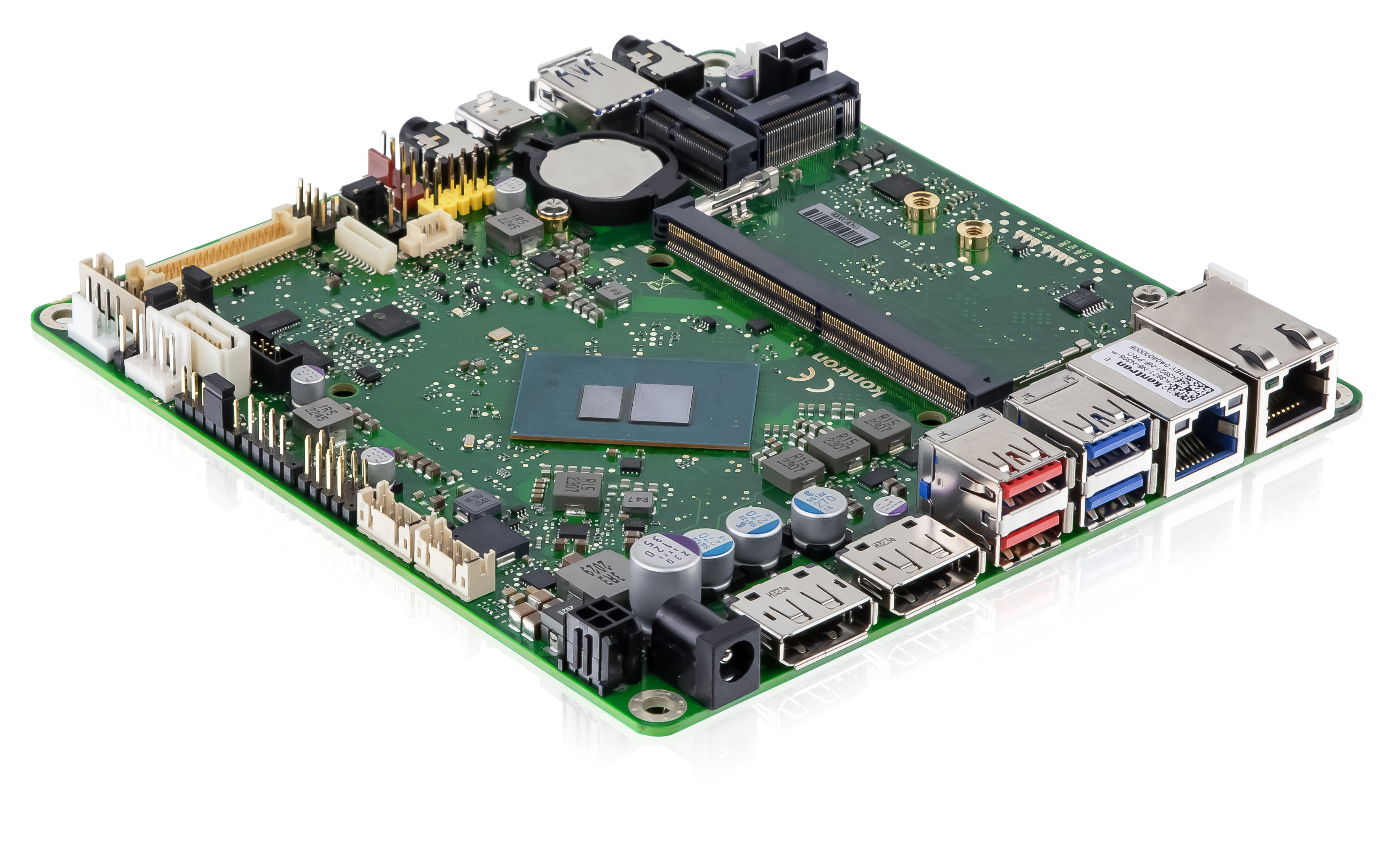

K3921-H7 mSTX Kontron

Catalog number: F5120-V24xxx

K3921-H7 is industrial motherboard produced in Germany from Kontron. This mSTX with Intel Core i3 Twin Lake N355 is used in Kiosks, Digital Signage, HMI

mini-STX, Twin Lake N355
Intel® Core i3 N355 (8C/15W) SoC
DDR5-4800
Industrial Series

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON
Video output DisplayPort, LVDS, eDP
SATA 1x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12V, DC 19-28V, DC-in via USB-C 20V
Operating temperature 0~60°C
Size (L x W x H) 140 x 148mm
Market Industrial mainboard
Form Factor miniSTX
Power Input DualRange internal/external DC input (12V / 19-28V) PowerDelivery Sink Mode (20V DC-In via USB-C)
Processor Intel Twin Lake N SoC Series H7: Intel® Core i3 N355 (8C/15W) SoC
LAN/USB/COM 3x USB 2.0, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen1 (Front Type-C) with DP Alt mode, 1x Realtek GbE LAN, 1x 2,5GbE
Interface 1x SATA 6G, 1x M.2 2230/42/80 (Key-M, PCIe x2 Gen3/NVMe SSD modules), 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
Size 140x148 mm
Operating temperature 0-60 °C
Memory type DDR5 4800MHz
DDR SO-DIMM

Processor:

  • Intel Twin Lake N SoC Series
  • H7: Intel® Core i3 N355 (8C/15W) SoC

Graphics:

  • Intel® UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs)
  • Up to 3x DPP V1.4a (up to 4K resolution)
  • 1x Embedded DP (eDP V1.4b up to 4K resolution)
  • 1x Dual-Channel 24bit LVDS

Memory:

  • DDR5 4800 SDRAM
  • 1x SO DIMM socket, up to 32 GByte memory, non-ECC

Product Features:

  • 8 Bit GPIO & HD Audio onboard
  • 3x USB 2.0, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen1 (Front Type-C) with DP Alt mode
  • 1x Realtek GbE LAN, 1x 2,5GbE incl. Teaming
  • 1x SATA 6G
  • 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules)
  • 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
  • Intel® integrated iTPM V2.0
  • DualRange internal/external DC input (12V / 19-28V), PowerDelivery Sink Mode (20V DC-In via USB-C)
  • 2x RS-232 support onboard (1x incl. RS485/422)

Usage:

  • Kiosks, Digital Signage, HMI,...
  • Designed for 24/7 use, with enhanced temperature range, up to 60°C

Recommended accessories:

• Active cooler

• Passive cooler
