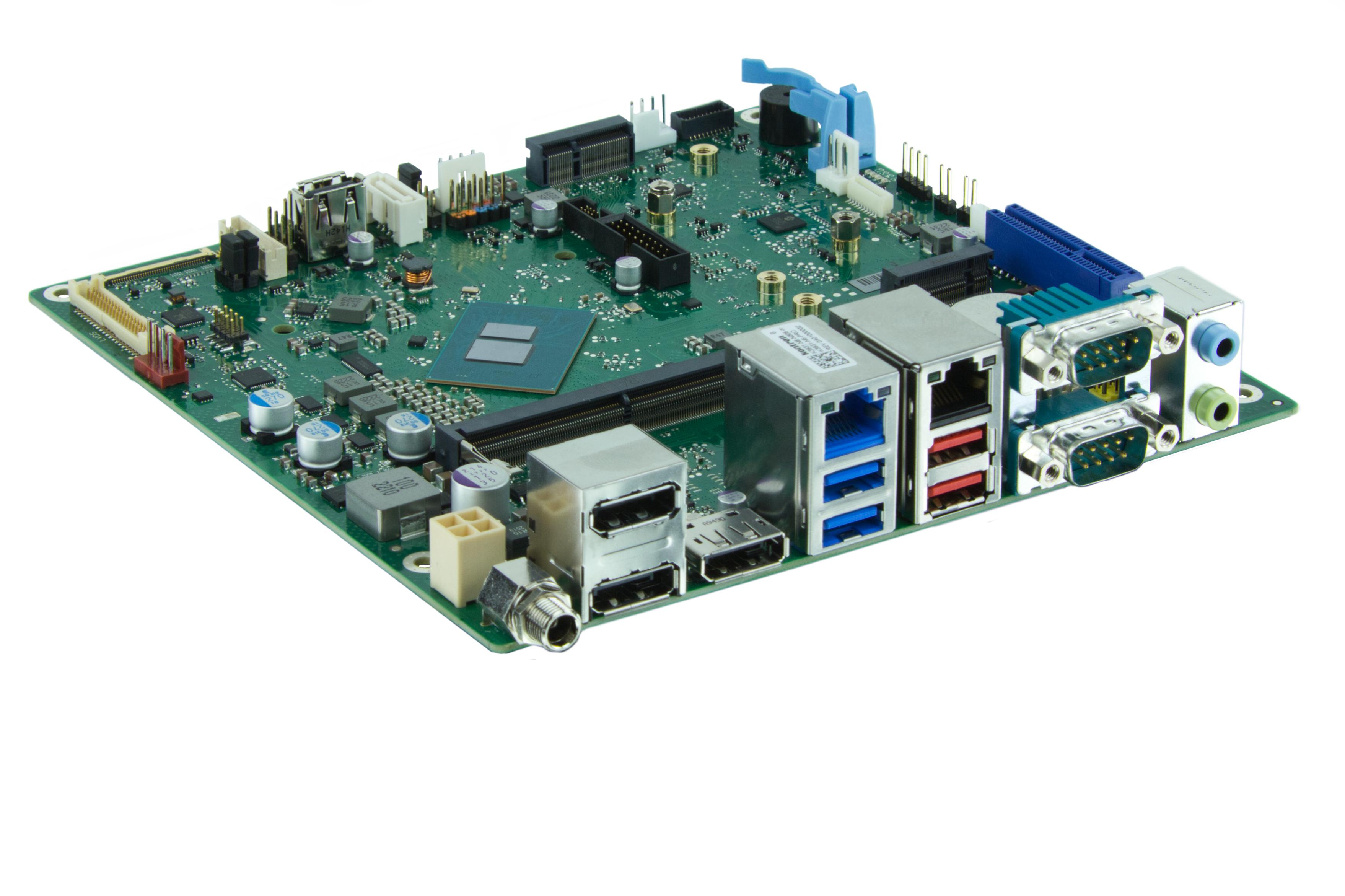

K3931-N1 mITX Kontron

Catalog number: F5120-V211

K3931-N1 is industrial motherboard produced in Germany from Kontron. This mITX motherboard with CPU Intel Alder Lake N50 is used in Casino gaming, Industrial PC

mini-ITX, Alder Lake N50
Intel® Processor N50 (2C/6W) SoC
DDR5-4800
Industrial Series

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON
Video output DisplayPort, LVDS, eDP
SATA 1x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 8-34V
Operating temperature 10°C~60°C
Size (L x W x H) 170 x 170mm
Market Industrial mainboard
Form Factor miniITX
Power Input 8-34V
Processor Intel® Alder Lake N SoC Series, N1: Intel® Processor N50 (2C/6W) SoC
PCIe/mPCIe/PCI 1x PCIe x4 (1 lane, Gen3, open slot)
LAN/USB/COM 3x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2, 1x Realtek GbE LAN, 1x 2,5GbE
Interface 1x SATA 6G 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules) 1x M.2 2242/80 (Key-B, PCIe x1 Gen3/SATA SSD modules) 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
Size 170x170mm
Operating temperature 0-60 °C
Memory type DDR5 4800MHz
DDR SO-DIMM

Processor:

  • Intel Alder Lake N SoC Series
  • N1: Intel Processor N50 (2C/6W) SoC

Graphics:

  • Intel® UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs)
  • Up to 3x DPP V1.4a (up to 4K resolution)
  • 1x Embedded DP (eDP V1.4b up to 4K resolution)
  • 1x Dual-Channel 24bit LVDS

Memory:

  • DDR5 4800 SDRAM
  • 1x SO DIMM socket, up to 32 GByte memory, non-ECC

Product Features:

  • 8 Bit GPIO & HD Audio onboard
  • 3x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2
  • 2x SATA III
  • 1x Realtek GbE LAN, 1x 2,5GbE incl. Teaming
  • 1x SATA 6G
  • 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules)
  • 1x M.2 2242/80 (Key-B, PCIe x1 Gen3/SATA SSD modules)
  • 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
  • Intel® integrated iTPM V2.0
  • HW Watchdog onboard
  • 4x RS-232 support onboard (1x incl. RS 485/422) + 1x ccTalk
  • WideRange internal/external DC input (8V - 34V)

Usage:

  • Casino Gaming, Medical Displays, Industrial PCs,...
  • Designed for 24/7 use, with enhanced temperature range, up to 60°C
