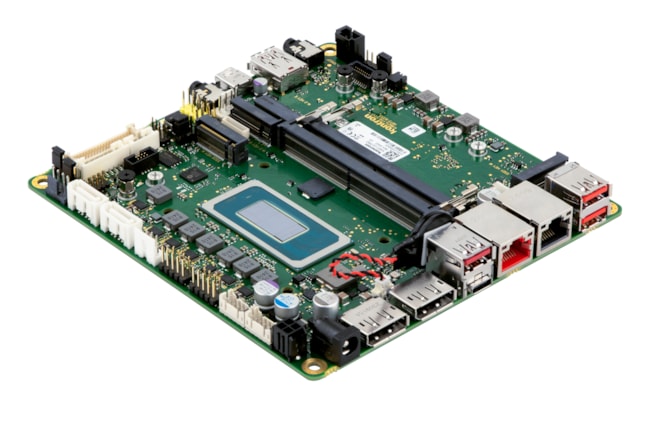

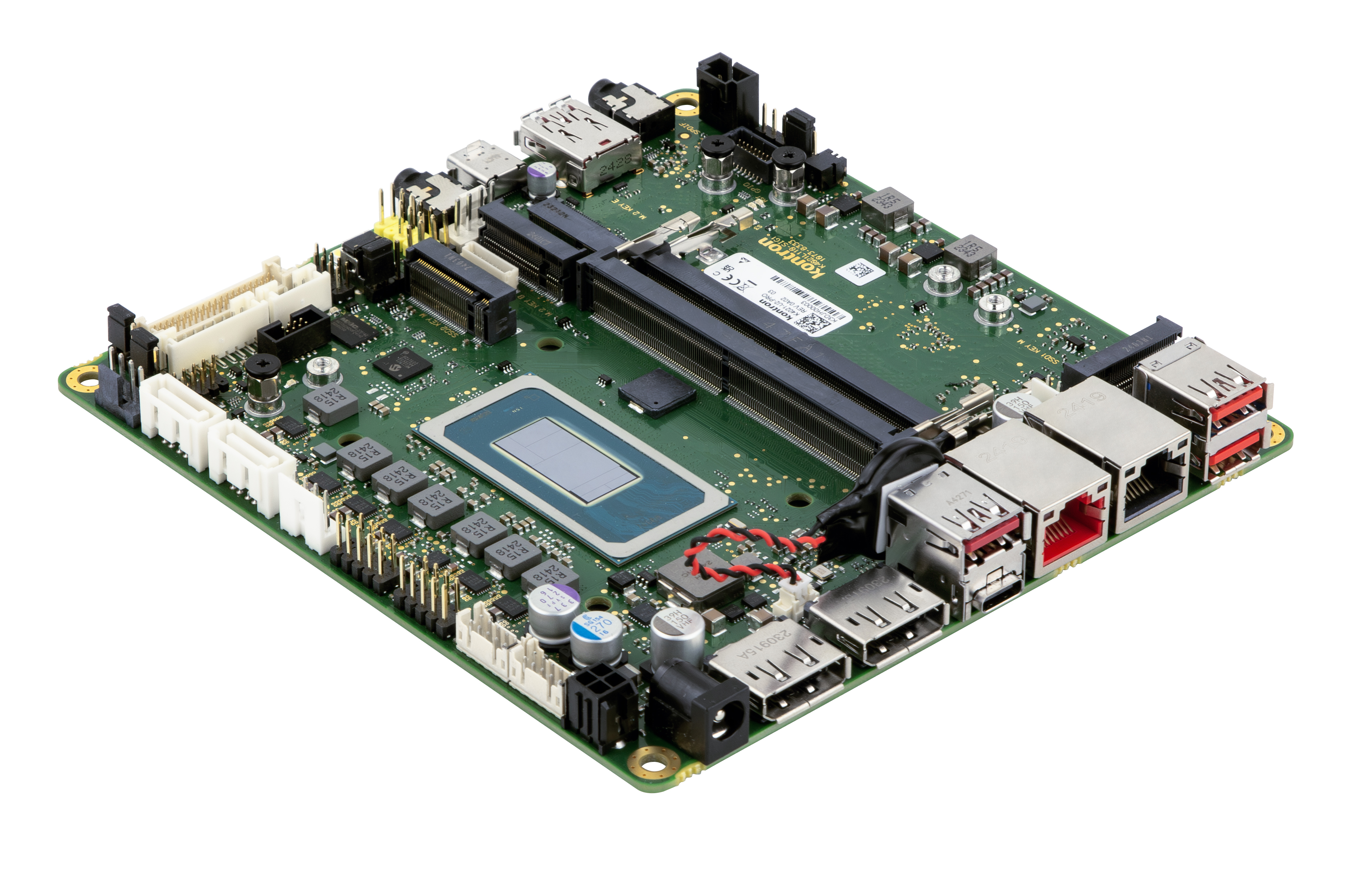

    K4021-U5 mSTX Kontron

    Catalog number: F5120-V255

    K4021-U5 is industrial motherboard produced in Germany from Kontron. This mSTX motherboard with CPU Intel Meteor Lake U is used in Kiosks, Digital Signage, HMI, Ai

    mini-STX, Meteor Lake U
    Intel® Core Ultra Processor
    DDR5-5600
    Industrial Series

    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer KONTRON
    Video output DisplayPort, LVDS, eDP
    SATA 1x, 2x
    Software support Linux, Windows
    Audio Microfone input, Audio output
    Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
    Power Input DC 9-24V
    Operating temperature 0~60°C
    Size (L x W x H) 140 x 148mm
    Market Industrial mainboard
    Form Factor miniSTX
    Power Input internal/external DC input (9-24V) PowerDelivery Sink Mode (20V DC-In via USB-C)
    Processor Intel® Meteor Lake, Core Ultra 7
    LAN/USB/COM 4x USB 3.2 Gen2, 1x USB Type-C with DP Alt mode, 1x USB Type-C with Thunderbolt 4 / USB4 Support
    Interface 2x SATA 6G, 2x M.2 2230/42/80 (Key-M, PCIe x4 Gen4), 1x M.2 2242 (Key-B, PCIe, USB 2), 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi , USB2)
    Size 140x148 mm
    Operating temperature 0-60 °C
    Memory type DDR5 5600MHz
    DDR SO-DIMM

    Processor:

    • Intel Meteor Lake
    • Intel. Core™ Ultra 7 155U, TDP 15W

    Graphics:

    • Intel. Graphics driven by Intel. Xe with up to 8 Xe-cores
    • Up to 3x DPP V1.4a ( max. 8K resolution)
    • 1x Embedded DP (eDP V1.4b, max. 5K resolution)
    • 1x Dual-Channel 24bit LVDS

    Memory:

    • DDR5 5600 SDRAM
    • 2x SO DIMM socket, s max. 96 GByte memory, non-ECC

    Product Features:

    • 8 Bit GPIO & HD Audio onboard
    • 4x USB 3.2 Gen2, 1x USB Type-C with DP Alt mode, 1x USB Type-C with Thunderbolt 4 / USB4 Support
    • 1x Realtek GbE LAN, 1x 5GbE iAMT
    • 2x SATA 6G
    • 1x M.2 2230/42/80 (Key-M, PCIe x4 Gen4), 1x M.2 2230/42 (Key-M, PCIe x4 Gen4)
    • 1x M.2 2242 (Key-B, PCIe, USB 2)
    • 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi, USB)
    • Intel® integrated iTPM V2.0
    • internal/external DC input (9-24V), PowerDelivery Sink Mode (20V DC-In via USB-C)
    • HW Watchdog onboard
    • 2x RS-232 support onboard

    Usage:

    • Kiosks, Digital Signage, HMI, Ai
    • Designed for 24/7 use, with enhanced temperature range, up to 60°C
