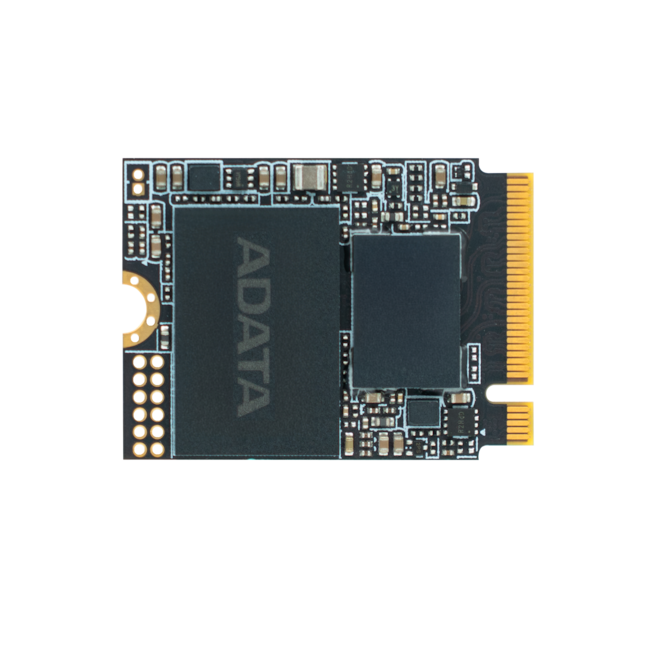

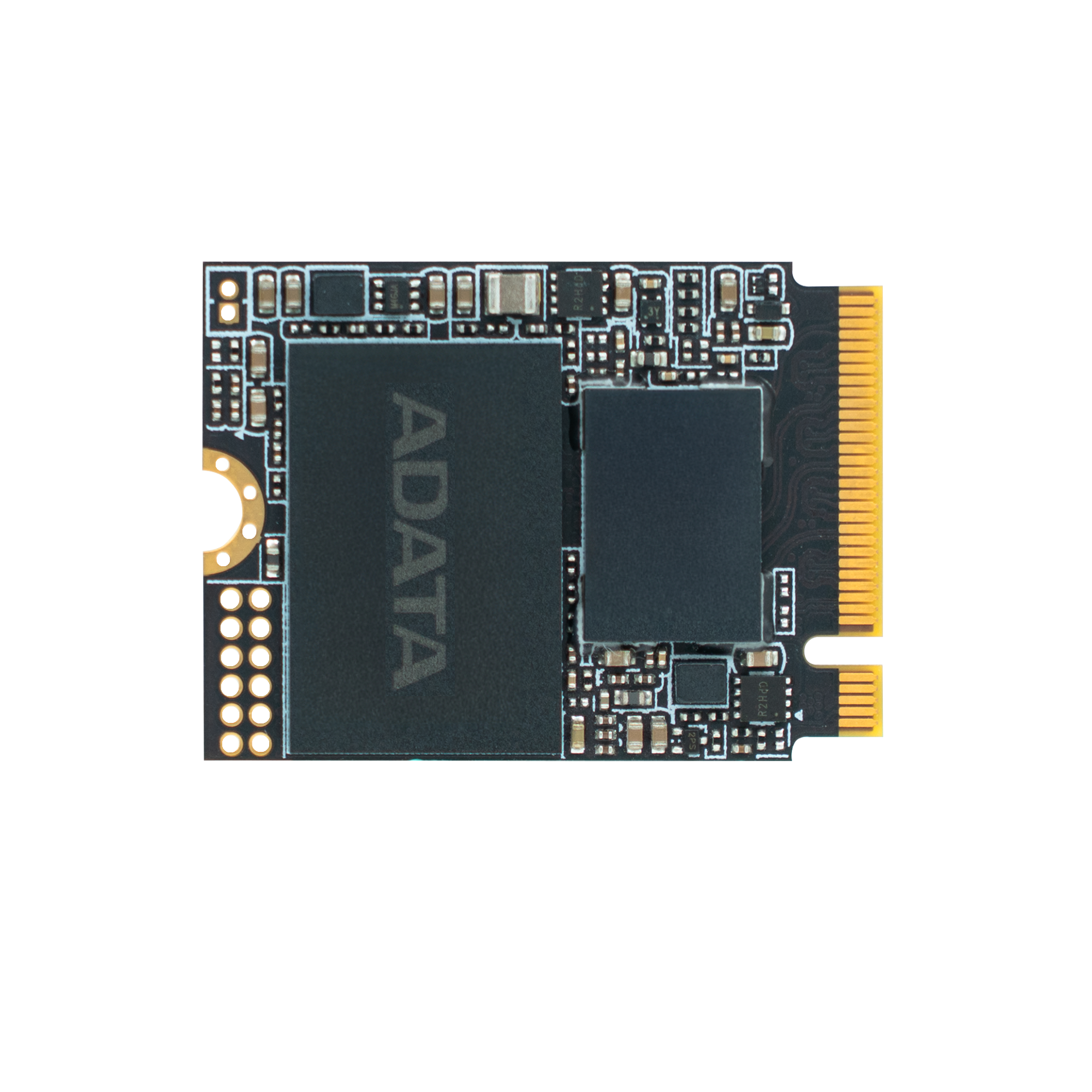

    M.2 2230 SSD IM2P41F3

    Catalog number: IM2P41F3

    IM2P41F3 - 218L 3D TLC is an industrial M.2 SSD from ADATA Industrial. This M.2 SSD storage has the capacity from 256GB to 1TB.

    • 256GB - 1TB
    • 7000/6500MB/s (R/W)
    • Temp 0C to +70C
    • 3K PE cycle
    on request
    Inquiry

    Product parameters

    Manufacturer ADATA
    Memory type 3D TLC, mSATA
    ROM 128 GB, 256 GB, 512 GB, 1 TB
    Operating temperature 0~70℃
    Size (L x W x H) 50,8 x 29,85 x 4,85mm
    Form Factor M.2 2230
    Interface PCIe Gen4x4
    Size 30 x 22 x 3.6mm
    Read/Write 7000/6500MB/s (R/W)
    Capacity 256GB - 1TB
    Operating temperature 0°C ~ +70°C
    Memory type 218L 3D TLC
    Operating humidity 5% ~ 95% RH
    Capacity  PN
     256GB

      IM2P41F3-256GCTS8

     IM2P41F3-256GITS8
     512GB

     IM2P41F3-512GCTS8

     IM2P41F3-512GITS8
     1TB

     IM2P41F3-001TCTS8

     IM2P41F3-001TITS8

    Features: AES 256-bit Data Encryption, TCG OPAL 2.0, LDPC ECC, RAID Engine, Wear Leveling, SLC Cache, TRIM command, Thermal Throttling, S.M.A.R.T. Monitor, End-to-end Data Path Protection, Host Memory Buffer, ESD Support (IEC/EN 61000-4-2 level 4).
