MI09-30 Series

Catalog number: MI09-30_S

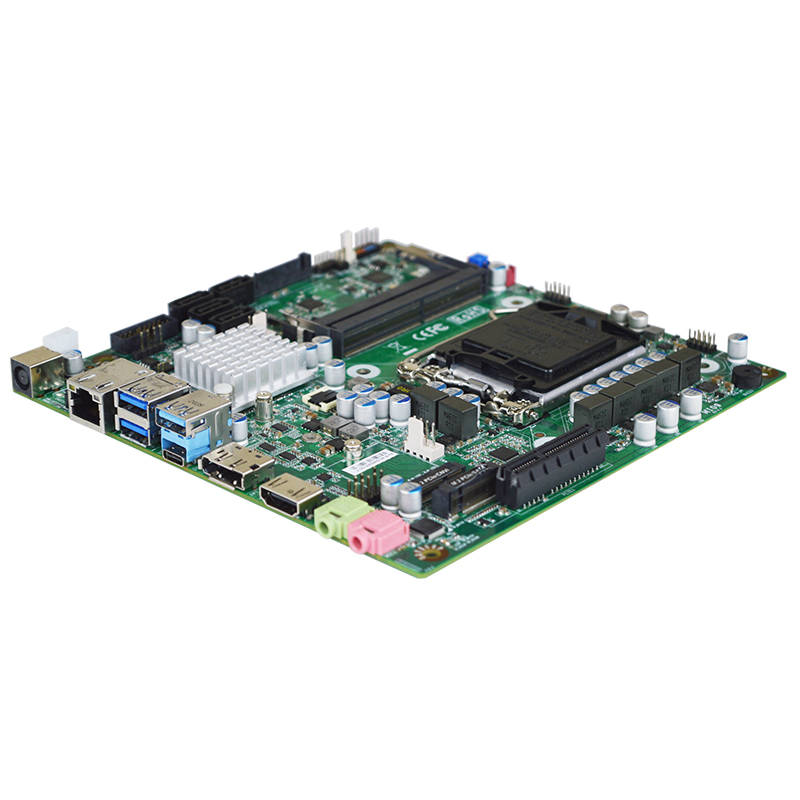

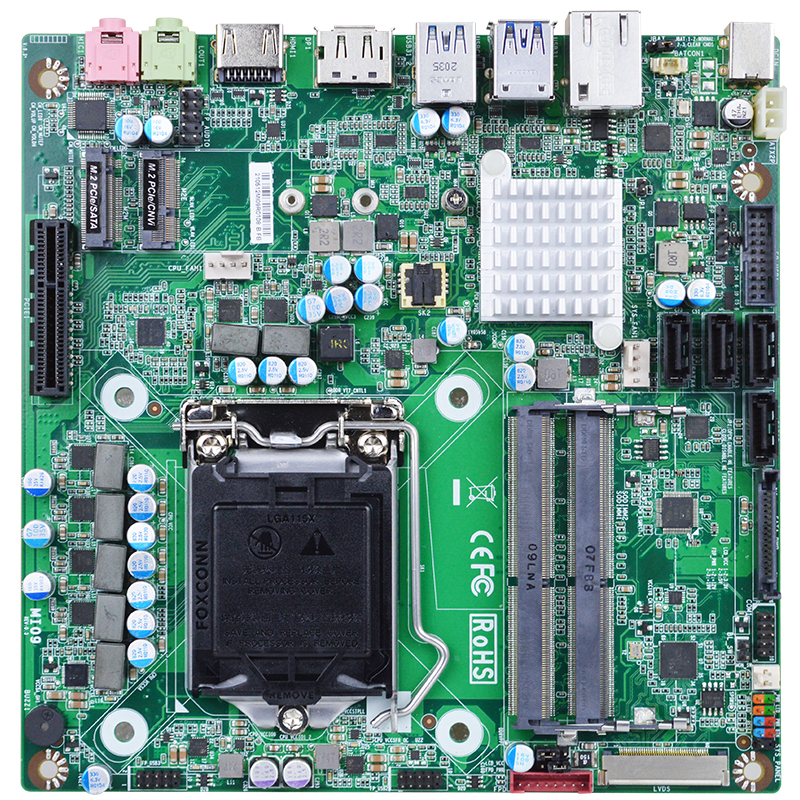

MI09-30 is industrial motherboard produced by Jetway. This Thin mITX motherboard with Intel Comet/Rocket Lake H470 is used in Digital signage and industrial PCs

Intel 10/11th LGA 1200 socket Core i9/i7/i5/i3/Pentium/Celeron Comet Lake-S/Rocket Lake-S Processor (Max. 65W TDP)
2x Dual CH non-ECC DDR4 2933/2666/2400MHz SDRAM SO-DIMM up to 64GB
Operating temp.: 0°C ~ 60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI, DisplayPort, LVDS, eDP
SATA 1x, 2x, 3x, 4x
Software support Linux, Windows
Audio Microfon input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12-24V
Operating temperature 0~60°C
Size (L x W x H) 170 x 170mm
Market Industrial
Power Input DC-in (12-24V)
Processor Intel 10/11th LGA 1200 socket Core i9/i7/i5/i3/Pentium/Celeron Comet Lake-S/Rocket Lake-S Processor (Max. 65W TDP)
PCIe/mPCIe/PCI 1x PCIe x4, 1x M.2 M-key 2242/2260/2280 (SATA/PCIe), 1x M.2 E-key 2230 (PCIe x1/USB2.0) support CNVi
LAN/USB/COM 1x COM (RS232/422/485), 3x USB3.2 Gen.2 (Type A), 1x USB3.2 Gen.1 (Type C), 2x USB3.2 Gen.1, 5x USB2.0
Video input 1x HDMI (Max Resolution: 4096x2160@30Hz), 1x DP (Max Resolution: 4096x2304@60Hz), 1x 24-bit Dual CH LVDS (Max Resolution: 1920×1200@60Hz)
Interface 4* SATAIII (6Gb/s)
Size 170 x 170 mm
Operating temperature 0~60°C
Memory type 2x Dual CH non-ECC DDR4 2933/2666/2400MHz SDRAM up to 64GB (depends on CPU support)
DDR SO-DIMM

Processor:

  • Intel 10/11th LGA 1200 socket Core i9/i7/i5/i3/Pentium/Celeron Comet Lake-S/Rocket Lake-S Processor (Max. 65W TDP)
  • Intel H470 Express chipset
  • AMI 128Mb Flash ROM BIOS

Model:

  • MI09-30
  • MI09-32 (onboard TPM2.0)

Memory:

  • 2x Dual CH non-ECC DDR4 2933/2666/2400MHz SDRAM SO-DIMM up to 64GB (depends on CPU support)

Product features:

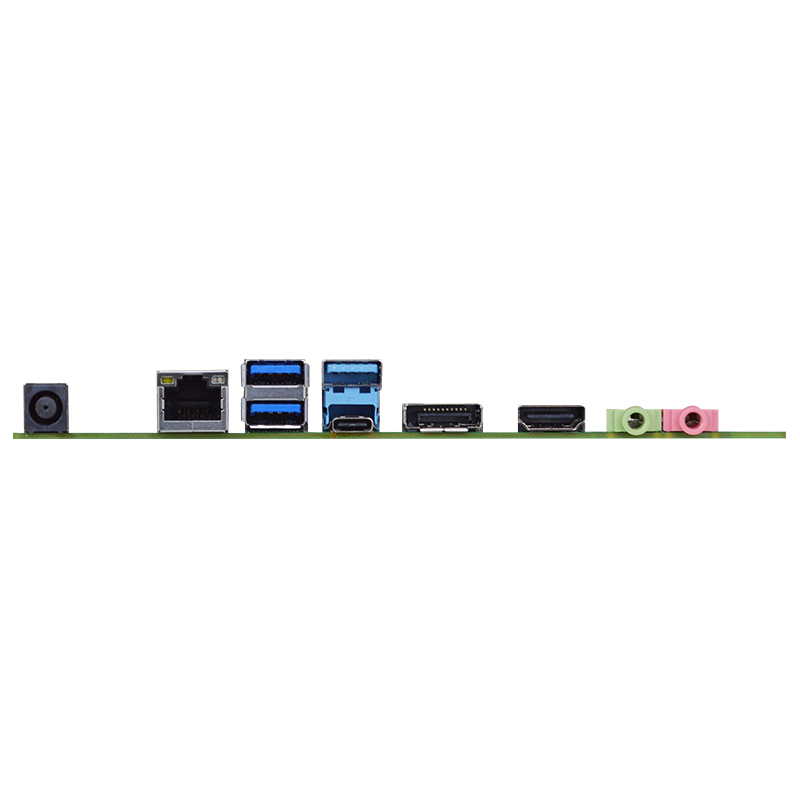

  • 1x COM (RS232/422/485), 3x USB3.2 Gen.2 (Type A), 1x USB3.2 Gen.1 (Type C), 2x USB3.2 Gen.1, 5x USB2.0
  • 1x PCIe x4, 1x M.2 M-key 2242/2260/2280 (SATA/PCIe), 1x M.2 E-key 2230 (PCIe x1/USB2.0) support CNVi
  • 4* SATAIII (6Gb/s)
  • Support onboard TPM 2.0 (MI09-32 only)
  • 1x HDMI (Max Resolution: 4096x2160@30Hz), 1x DP (Max Resolution: 4096x2304@60Hz), 1x 24-bit Dual CH LVDS (Max Resolution: 1920×1200@60Hz)
  • Suppor Dual Displays
