MM10-H6100 Series

Catalog number: MM10-H6100_S

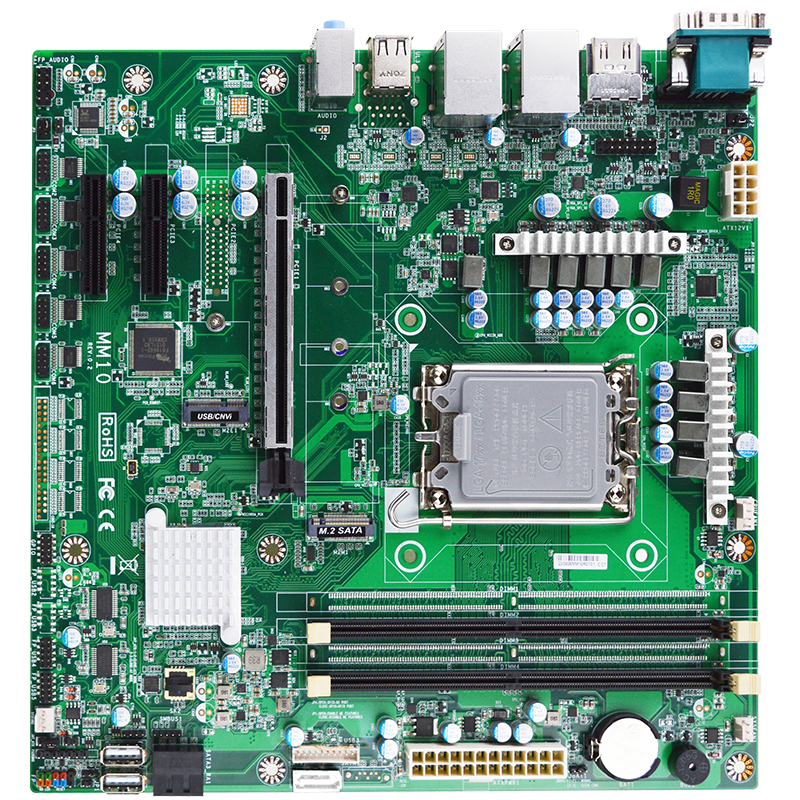

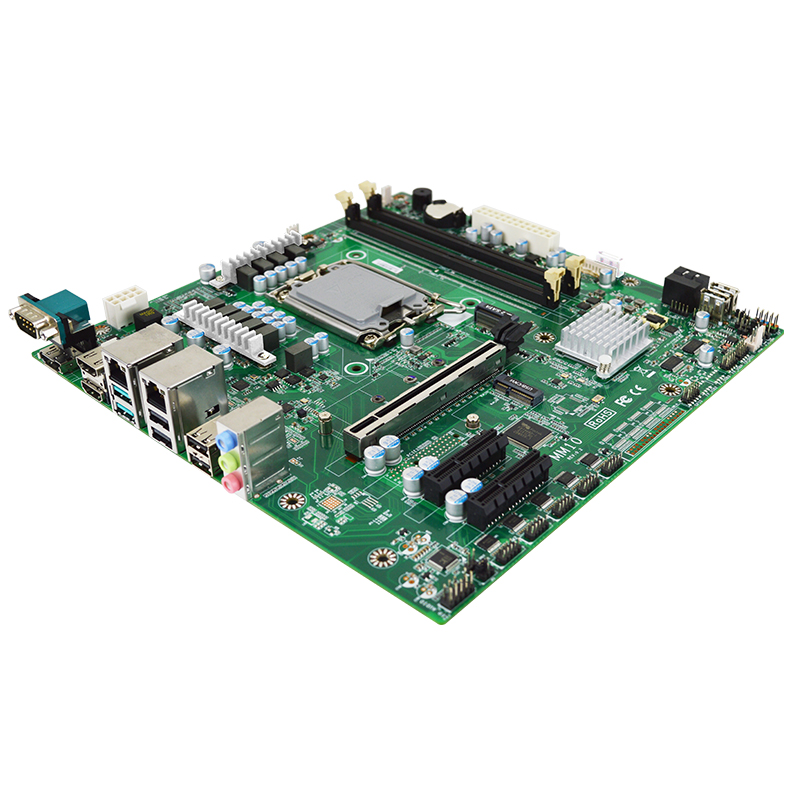

MM10-H6100 is industrial motherboard produced by Jetway. This µATX motherboard with CPU Intel Alder Lake H610 is used in Surveillance, Digital security

microATX, Intel H610 Express chipset
LGA1700 12th / 13th Gen, i9 / i7 / i5 / i3 processor
DDR5 4800MHz, up to 64GB memory
Max. 125W (240A) TDPs
Industrial series

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY

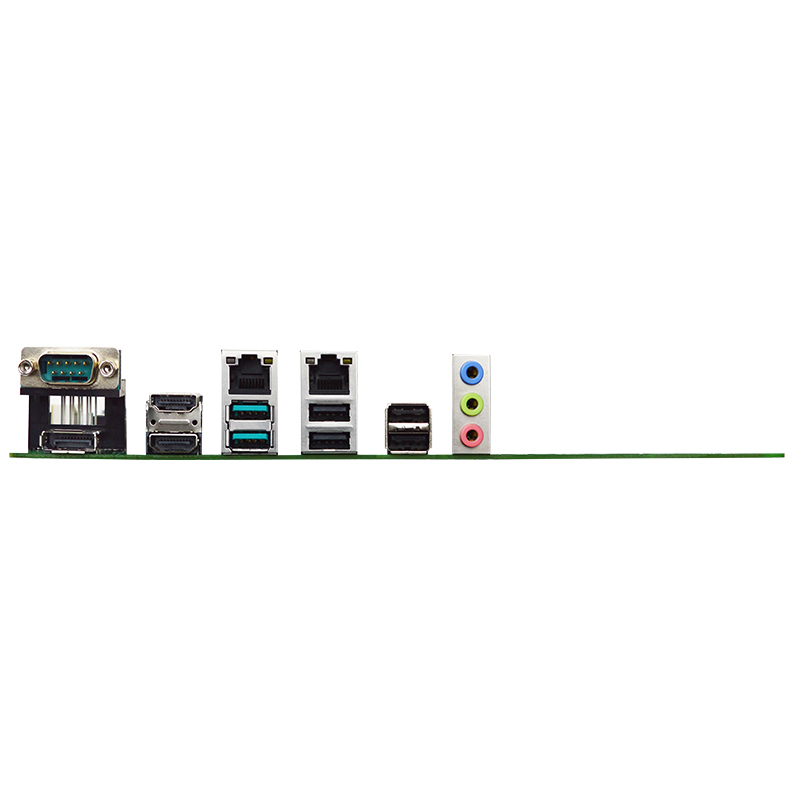

Video output VGA, HDMI, DisplayPort
SATA 1x, 2x, 3x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input ATX 24pin
Operating temperature -10~50°C
Size (L x W x H) 244 x 244mm
Market Industrial motherboard
Form Factor microATX
Processor Intel H610 Chipset, 12th / 13th Gen, i9 / i7 / i5 / i3 processor
PCIe/mPCIe/PCI 1x PCIe x16 slot, 2x PCIe x4 slot, 1x M.2 M-Key (2242/2260/2280/22110, SATA interface), 1x M.2 E-Key (2230, USB2.0 interface) support CNVi
LAN/USB/COM 6x COM (COM1 support RS232/422/485), 2x USB3.2 Gen.2, 1x USB3.2 Gen.1, 11x USB2.0
Interface 3x SATAIII (SATA2 support SATA DOM)
Size 244 x 244mm
Operating temperature -10 ~ +50°C
Memory type UDIMM
DDR DDR5-4800, up to 64GB

Memory:

  • DDR5-4800 Memory
  • 2x UDIMM, up to 64GB

Product features:

  • Intel® 12/13th LGA1700 Socket Processor (Max.125W TDP)
  • 2x 10/100/1000 Base-TX Ethernet Ports
  • 2x HDMI, 1x DP, 1x VGA
  • 6x COM (COM1 support RS232/422/485)
  • 2x USB3.2 Gen.2, 1x USB3.2 Gen.1, 11x USB2.0
  • 1x PCIe x16 slot, 2x PCIe x4 slot, 1x M.2 M-Key (2242/2260/2280/22110, SATA interface), 1x M.2 E-Key (2230, USB2.0 interface) support CNVi
  • 3x SATAIII (SATA2 support SATA DOM)
  • Support onboard TPM 2.0 (MM10-H6102 only)
  • Operating temperature: -10 ~ 50° C
  • Size: 244 x 244mm

Usage:

  • Building automation, Factory Automation, Public Sector, Digital Security, Surveillance
