MTX-RYZ1-884000A1

Catalog number: MTX-RYZ1-884000A1

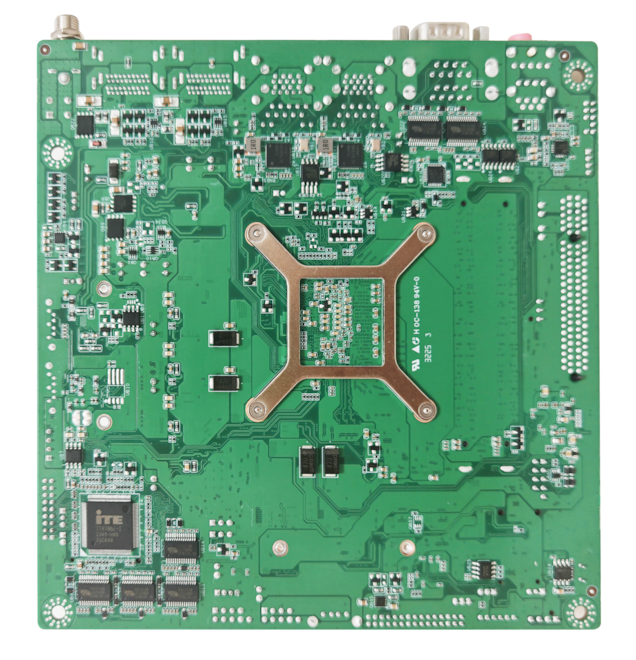

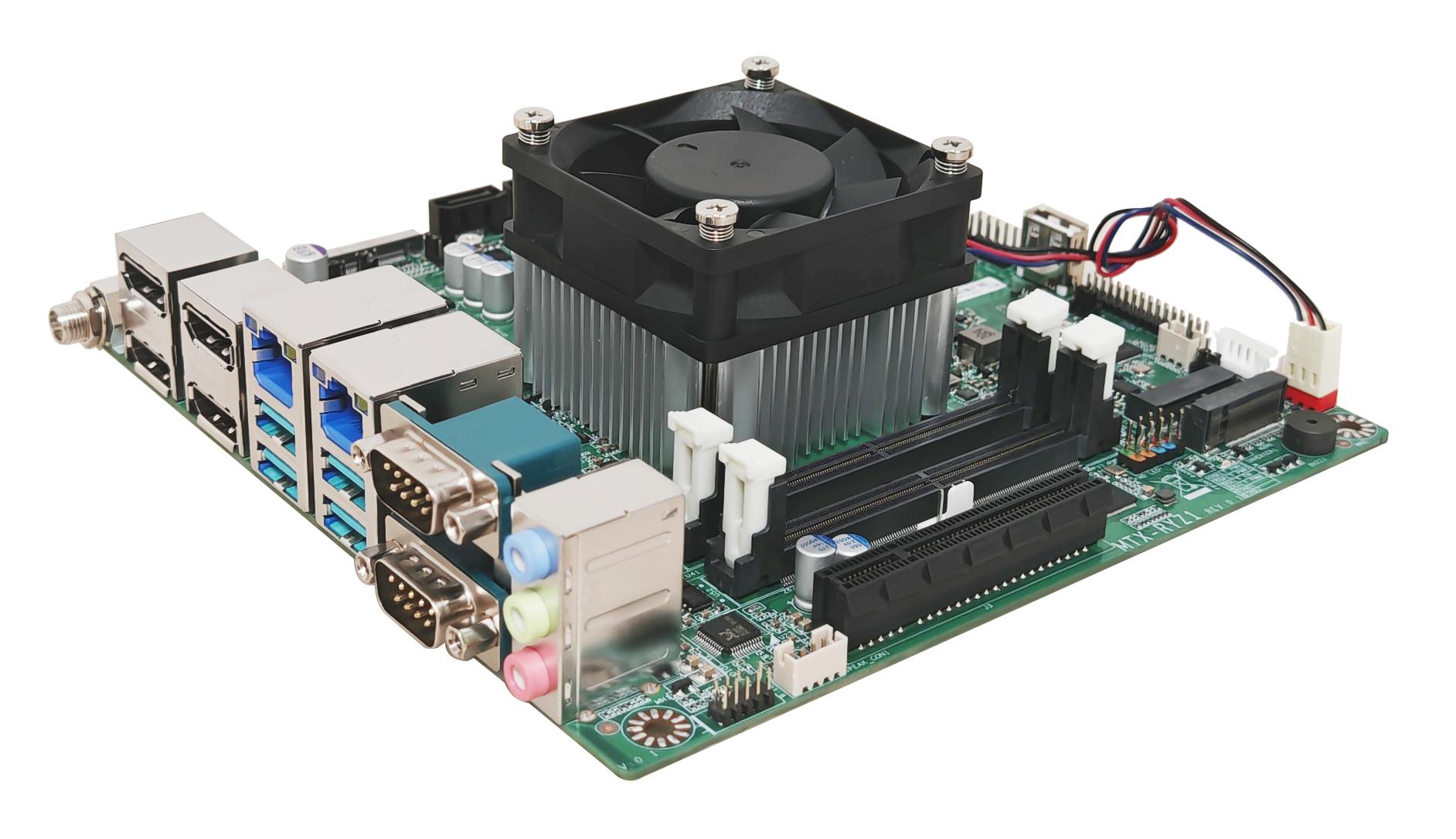

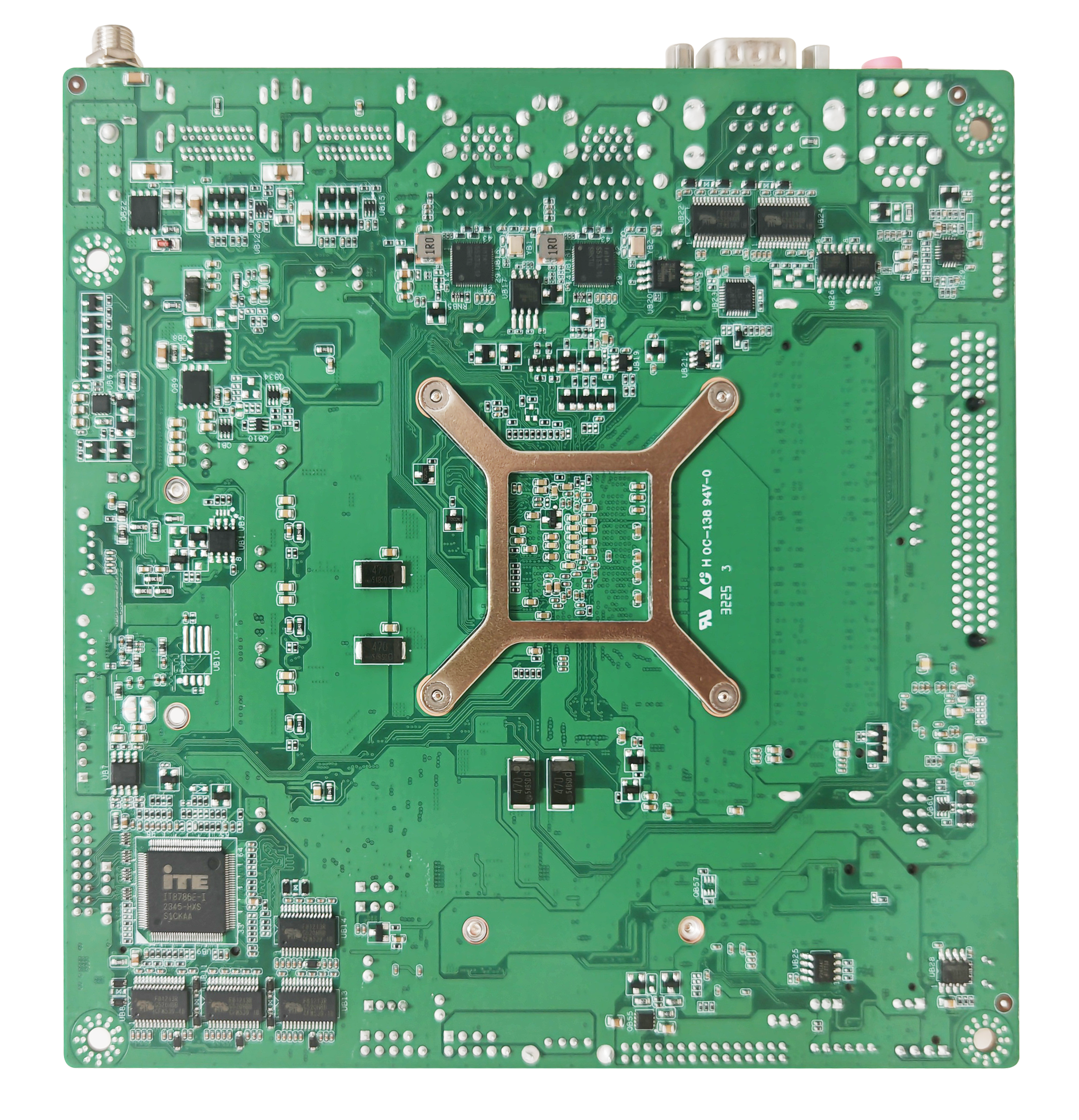

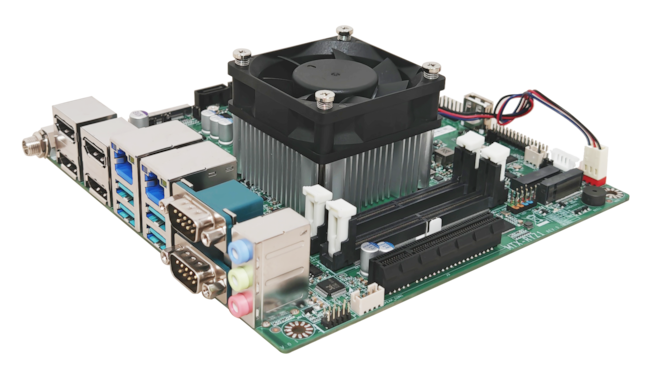

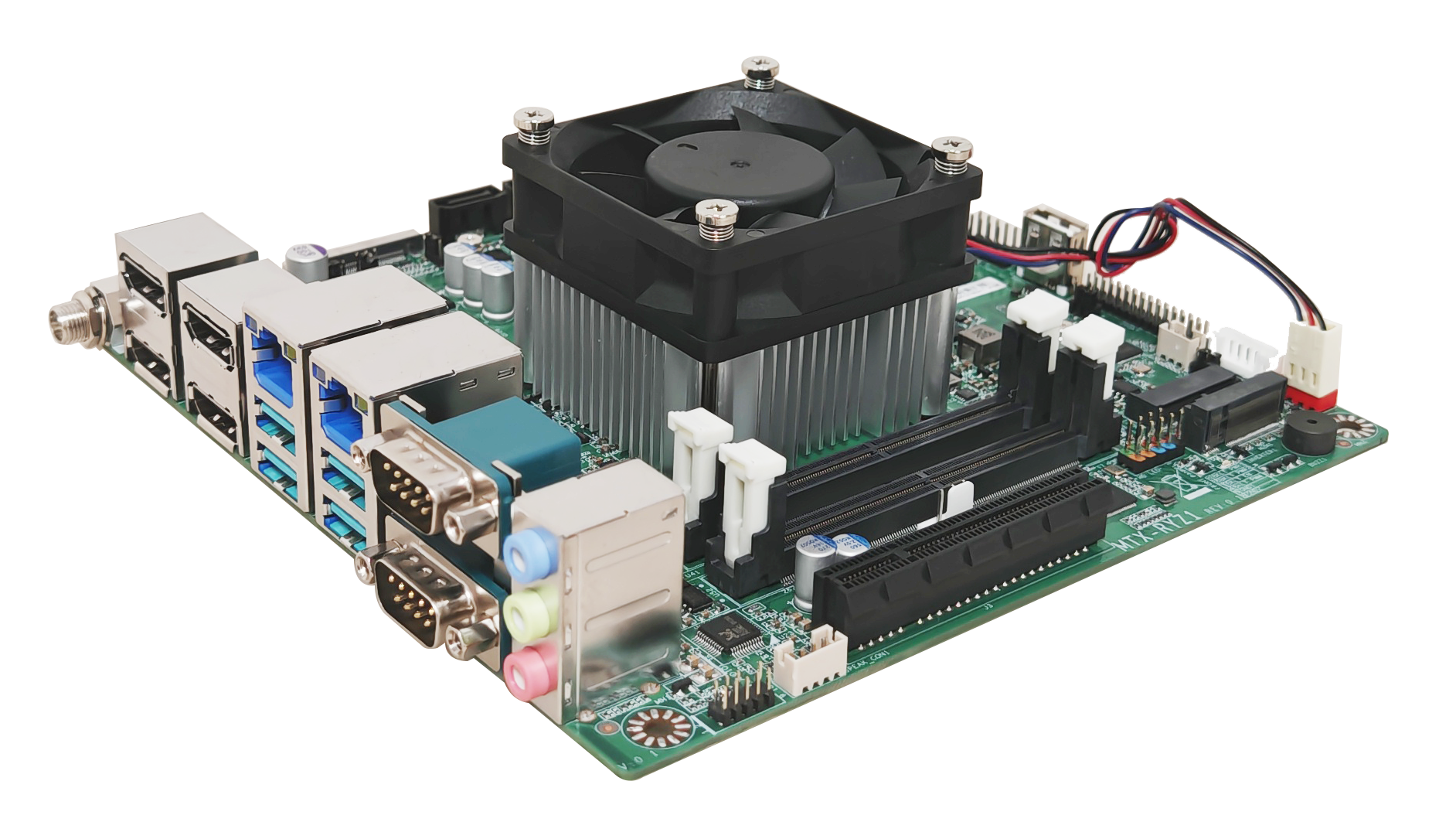

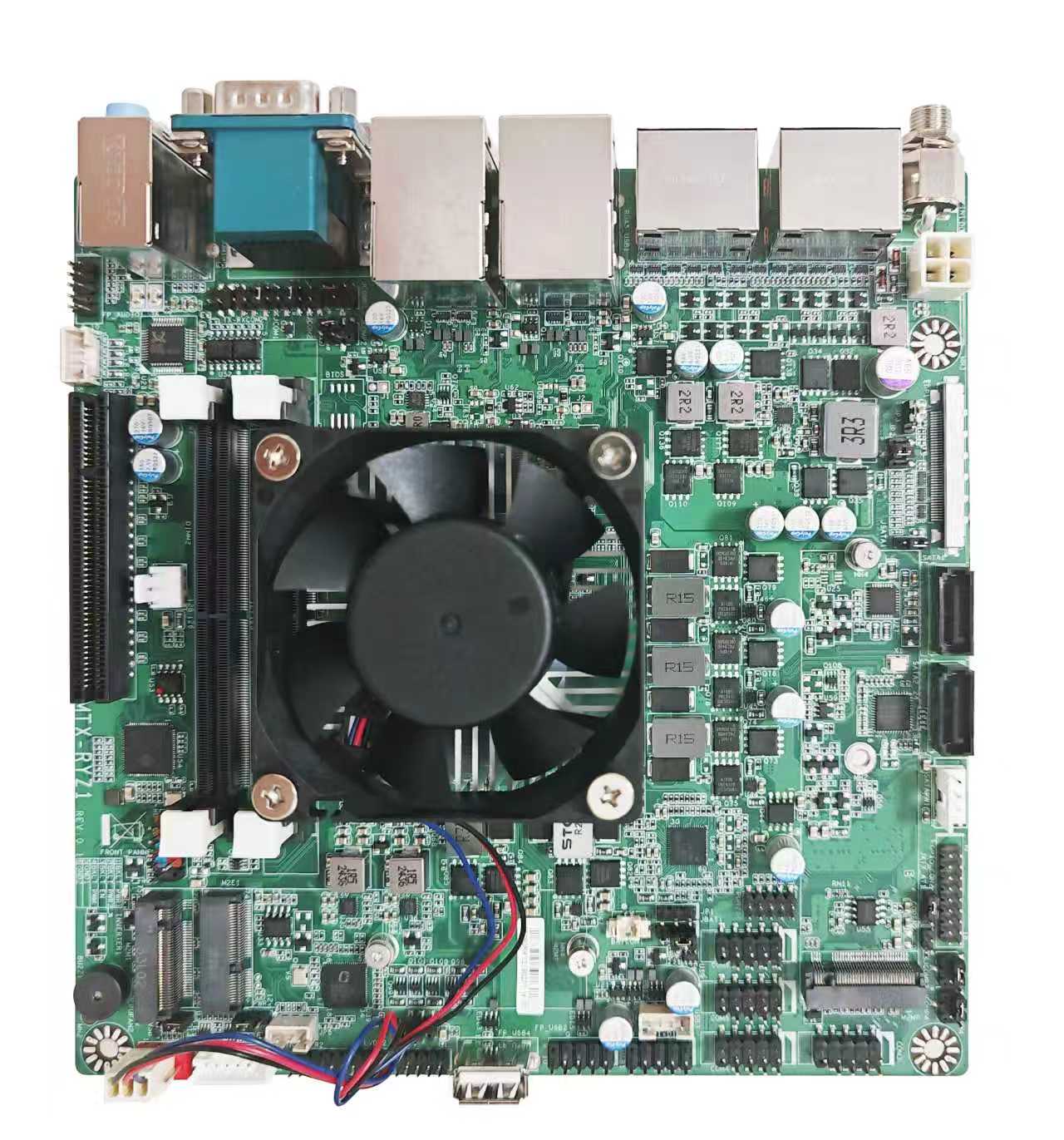

MTX-RYZ1-884500A1 is industrial motherboard produced by Jetway. This mITX motherboard is with AMDTM RYZENTM 7 Pro Embedded 8000-Series 8840U CPU. Usage: High perf. networking application, IOT

Mini-ITX
AMDTM RYZENTM 5 Pro Embedded 8000-Series 8840U CPU processor
DDR5 up to 96GB
Operating temp.: 0°C ~ 60°C


Datasheet
The goods are available.
Inquiry

Product parameters

Manufacturer JETWAY
Video output DisplayPort, LVDS, eDP
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12-28V, ATX 4pin
Operating temperature 0~60°C
Size (L x W x H) 170 x 170mm
Market Industrial
Form Factor mini-ITX
Power Input 12~28V DC in + 4pin 12V
Processor AMD RYZEN 7 Pro 8840U 3.3GHz/8C Core
PCIe/mPCIe/PCI 1x PCIe Gen.4 x8 slot, 2x M.2 (M-key), 1x M.2 (E-key)
LAN/USB/COM 4x USB3.2 (Gen 1), 6x USB2.0 2x 2.5GbE LAN, up to 6x RS232 (2x RS232/422/485
Interface 2x SATAIII (6.0Gb/s, SATA1 Support SATA DOM)
Size 170 x 170 mm
Operating temperature 0~60°C
Memory type 2x DDR5 5600MHz up to 96GB
DDR SO-DIMM

Processor:

  • AMD RYZEN CoreTM 8000 Series Processor
  • MTX-RYZ1-884000A1 (7 Pro 8840U 8C, 3.3GHz,28W)
  • AMI 256M Flash ROM BIOS

Model:

  • MTX-RYZ1-884000A1 (7 Pro 8840U 8C, 3.3GHz,28W)

Memory:

  • DDR5 ECC/non-ECC 5600 MHz DRAM, 2x SO-DIMM
  • max 96GB

Product features:

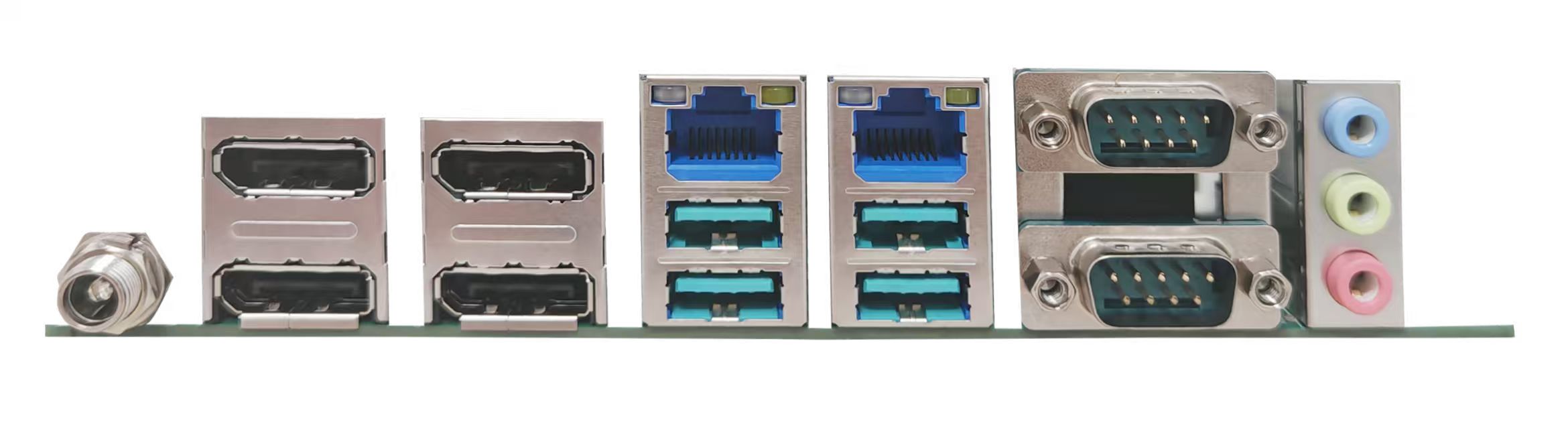

  • 4x DP, 1x eDP1.5, 1x LVDS
  • 4x USB3.2 (Gen 1), 6x USB2.0
  • 2x 2.5GbE LAN, up to 6x RS232 (2x RS232/422/485)
  • 1x PCIe Gen.4 x8 slot, 2x M.2 (M-key), 1x M.2 (E-key)
  • 2x SATAIII, SATA1 Support SATA DOM
  • 12~28V DC in + 4pin 12V
  • Support onboard TPM 2.0 (MTX-RYZ1-884002A1 only)
  • Windows 11, Linux

Usage:

  • IoT, High Performance Networking application, digital signage
