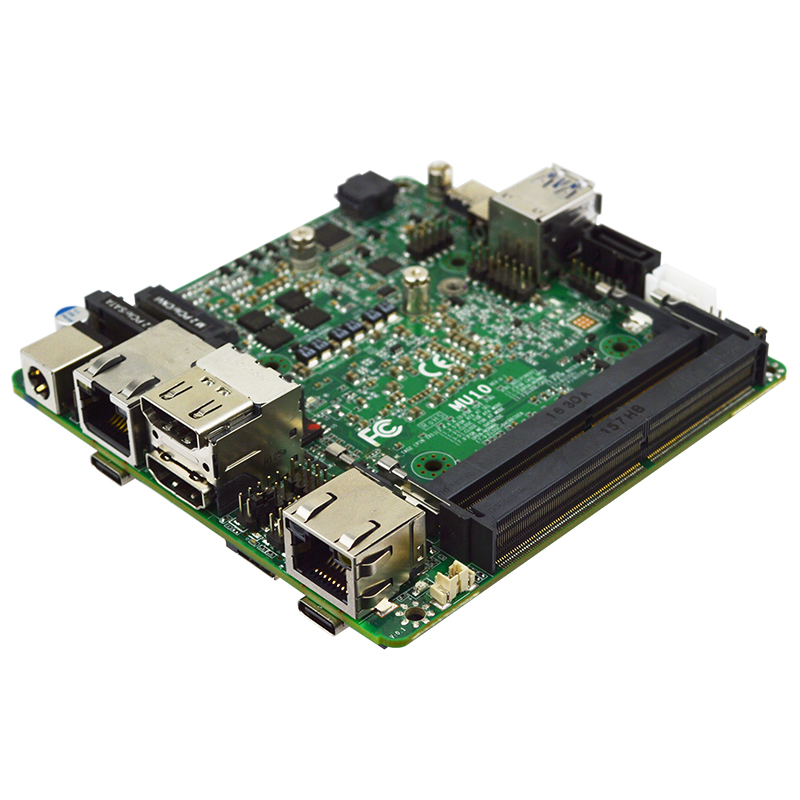

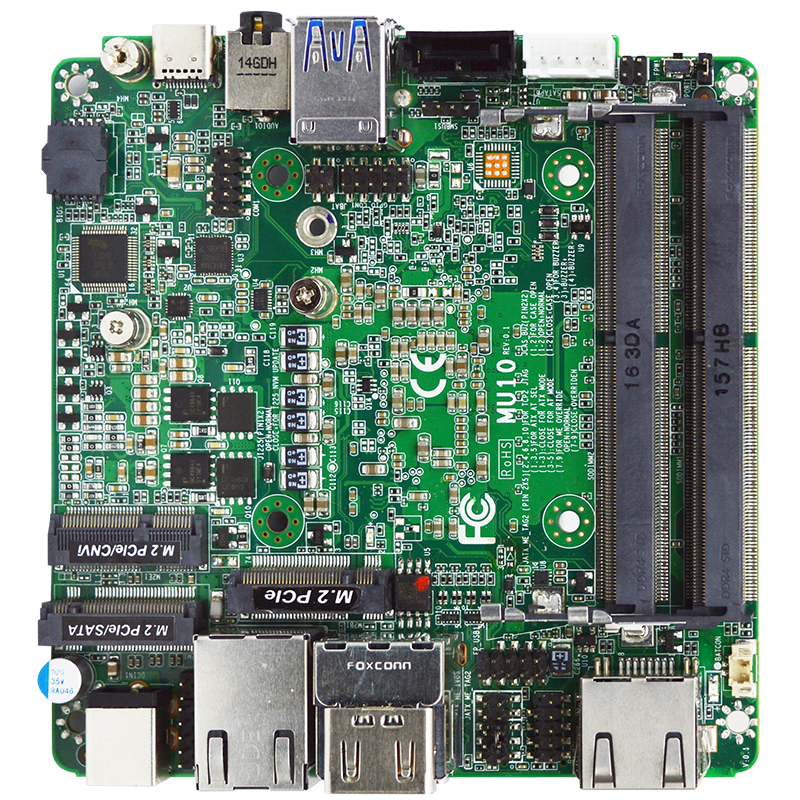

MU10 Series

Catalog number: MU10_Series

MU10 Series

NUC form factor, Intel® TigerLake
RAM DDR4 up to 64GB
Intel® HD Graphics

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output HDMI, DisplayPort
SATA 1x
Software support Linux, Windows
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12-24V
Operating temperature 0~60°C
Size (L x W x H) 101 x 101 mm
Market Industrial mainboard
Form Factor NUC
Power Input 12-24V DC-in
Processor Intel® Tiger Lake-U SoC Processor

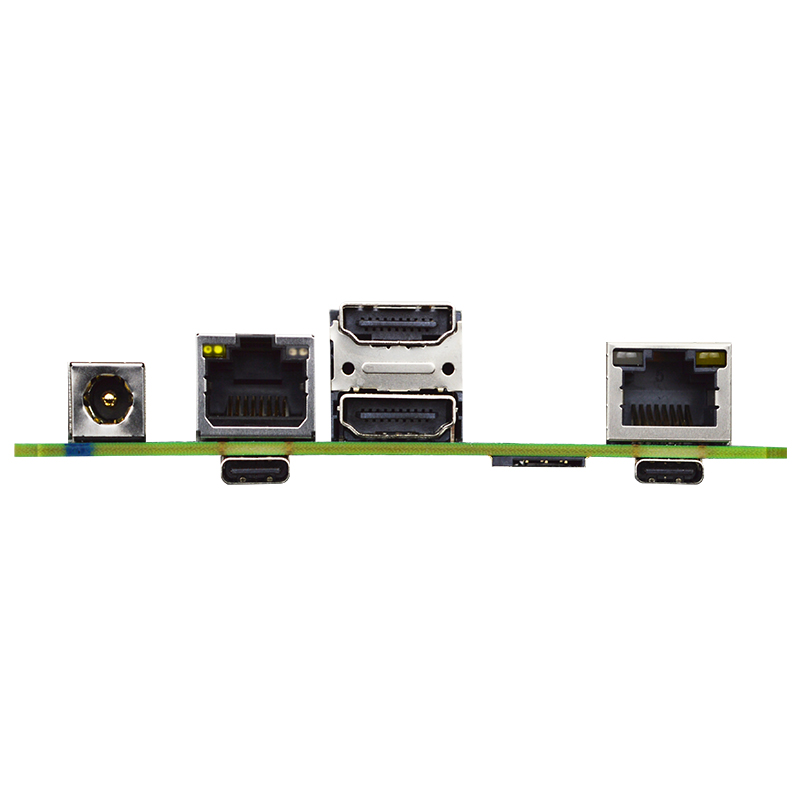

LAN/USB/COM 2x LAN RJ45 / 2x USB 3.2, 2x USB 2.0, 3x USB Type-C / 1x COM port
Video input 2x HDMI / 2x DisplayPort
Interface 1x SATA III / M.2 M-key 2242 2280
Size 101 x 101 mm
Operating temperature 0-60 °C
Memory type 2x DDR4 - 3200 MHz, up to 64GB
DDR SO-DIMM

Processor:

  • Intel® Tiger Lake-U SoC Processor (TDP 15W)
  • MU10-80 (i3-1115G4)
  • MU10-82 (i3-1115G4, TPM2.0)
  • MU10-90 (i5-1135G7)
  • MU10-92 (i5-1135G7, TPM2.0)

Graphics:

  • Intel® HD Graphics
  • 2x DisplayPort, 2x HDMI support max resolution 4k
  • support 4 displays

Memory:

  • DDR4 3200 MHz up to 64GB
  • 2x SO-DIMM slot

Product Features:

  • 2x RJ45, Intel i219-LM GbE and Intel i225-V2.5GbE

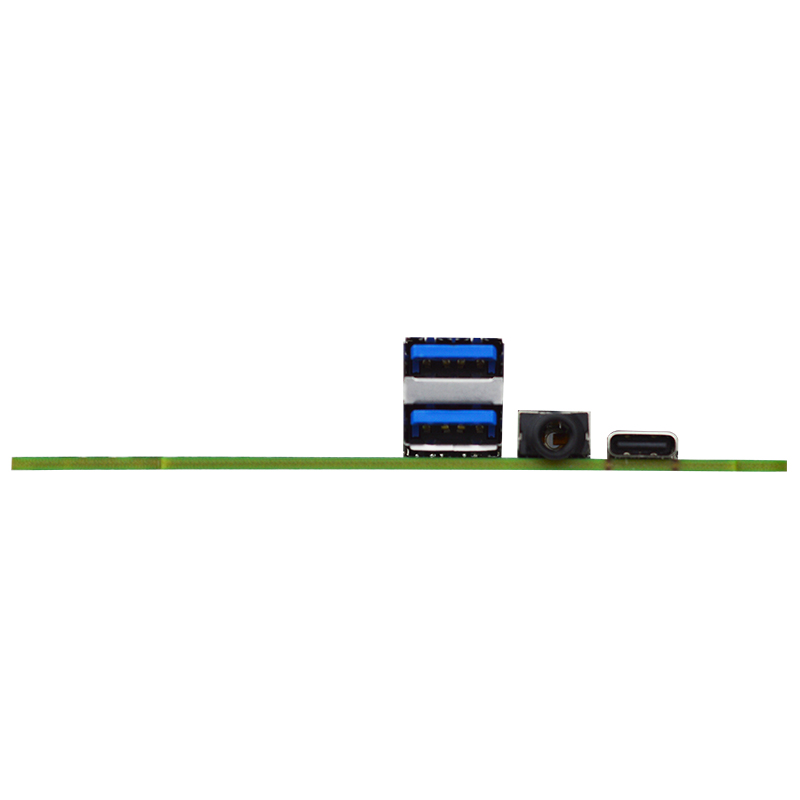

  • 2x USB 3.2, 2x USB 2.0, 3x USB Type-C
  • 1x M.2 M-key (2242/2280, PCIe4.0 x4/SATAIII interface) support NVME
  • 1x SATA III (6.0GB/s)
  • 1x COM port
  • 1x SIM card slot
  • 1x GPIO
  • 1x SMBUS
  • 1x HD audio: Realtek ALC888S-VD2
  • 12-24V DC-in

Usage:

  • Digital signage
  • Industrial PC
  • Edge computing
  • Factory automation, Industrial automation
  • AI, Retail solution
