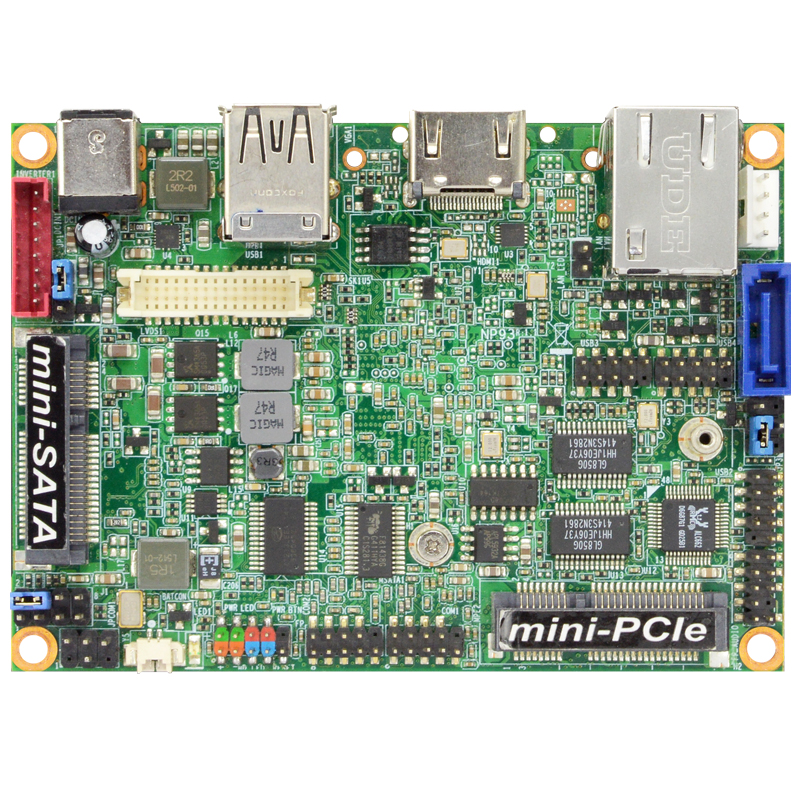

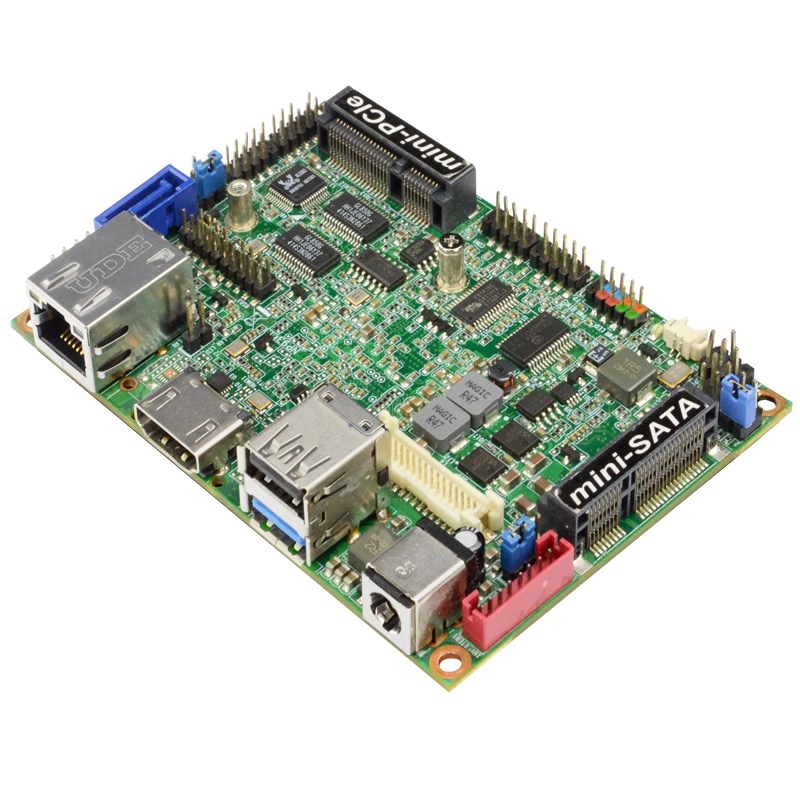

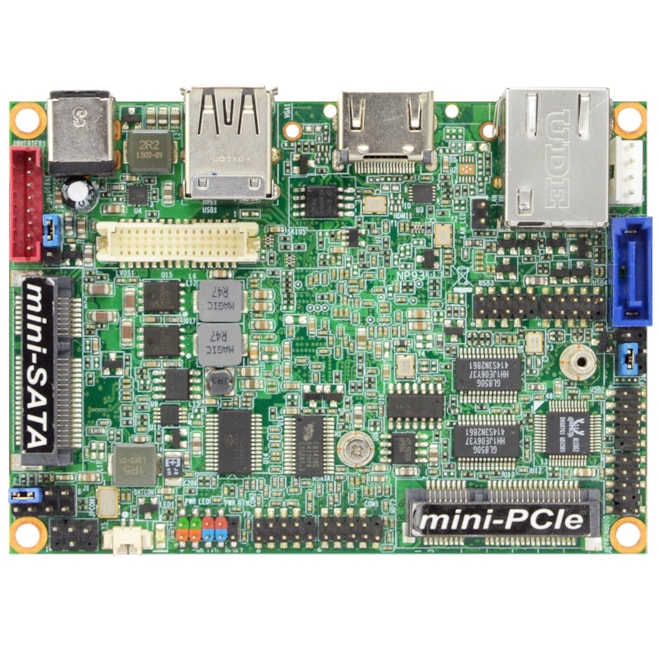

NP93 Series

Catalog number: NP93_S

NP93 Series

Intel Bay Trail-M SoC Processor
On-board 2GB DDR3L 1333MHz System memory
1x HDMI / VGA, 1x LVDS Dual display
Wide temp: -20~60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer JETWAY
Video output VGA, HDMI, LVDS
SATA 1x
Software support Windows
Audio Audio output
Memory type Mini PCIe, mSATA
Power Input DC 12V
Operating temperature -20°C~60°C
Size (L x W x H) 100 x 72mm
Market Digital Signage
Power Input 12V DC-in
Processor JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W) / JNP93-2807 (N2807) Dual Core 1.58GHz SoC (TDP 4.3W)
PCIe/mPCIe/PCI 1x Mini-PCIe

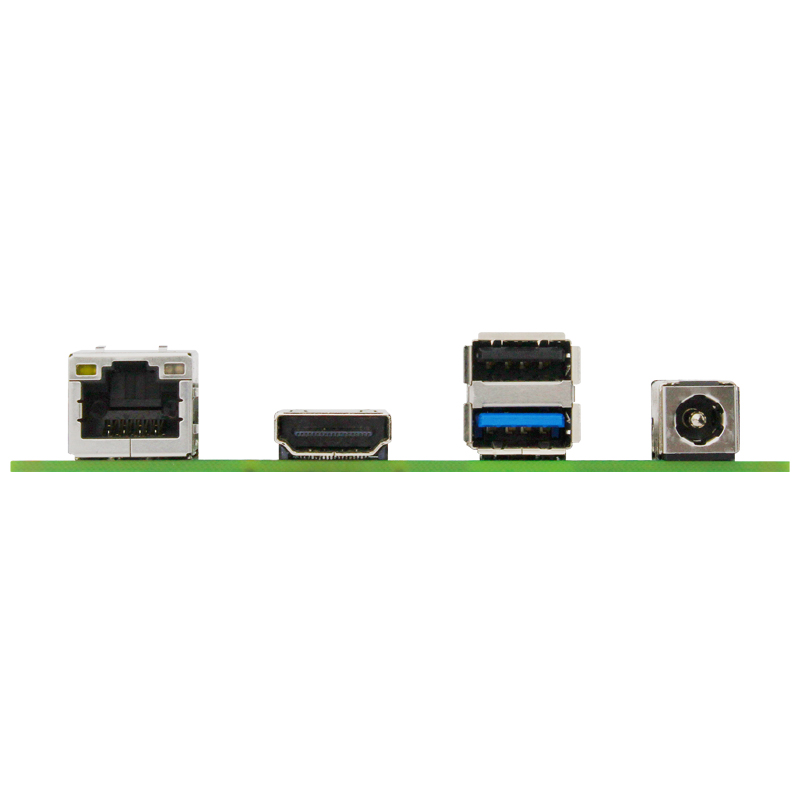

LAN/USB/COM 7x USB2.0, 1x USB3.0, 2x COM, 1x RJ45
Video input 1x VGA (Option with HDMI, Max res.: 1920x1200@60Hz) 1x HDMI (Option with VGA, Max res.: 1920x1200@60Hz) 1x 24-bits Dual channel LVDS (Max res.: 1920x1200@60Hz)
Interface 1x mSATA, 1x SATAII
Size 100 x 72 mm
Operating temperature -20 ~ +60°C
Memory type 2GB onboard DDR3L 1333MHz

Processor system:

  • JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W)
  • JNP93-2807 (N2807) Dual Core 1.58GHz SoC (TDP 4.3W)

Memory:

  • 2GB onboard DDR3L 1333MHz Single Channel

Product features:

  • 1x SATAII (3GB/s)
  • 1x mSATA (Full size)
  • 1x Mini-PCIe (half size)
  • 1x VGA (Option with HDMI, Max res.: 1920x1200@60Hz)
  • 1x HDMI (Option with VGA, Max res.: 1920x1200@60Hz)
  • 1x 24-bits Dual channel LVDS (Max res.: 1920x1200@60Hz)
  • Support dual displays
  • 7x USB2.0
  • 1x USB3.0
  • 2x COM

Usage:

  • Display signage, Machine learning
