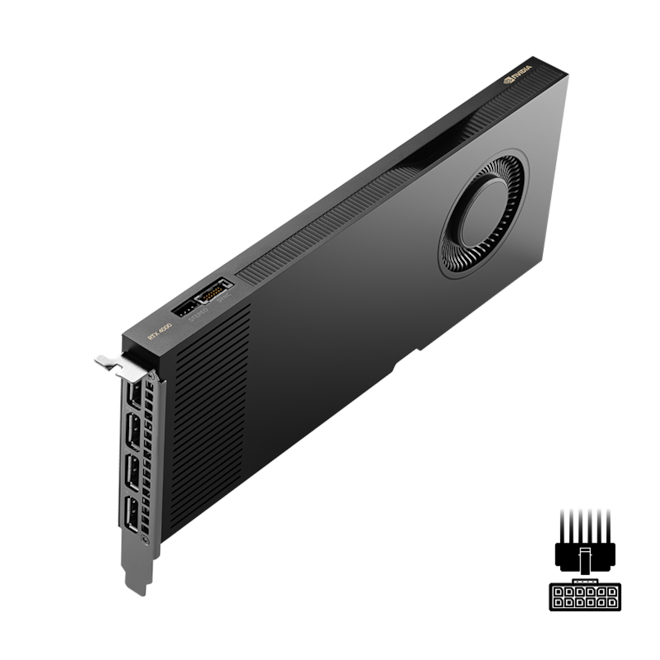

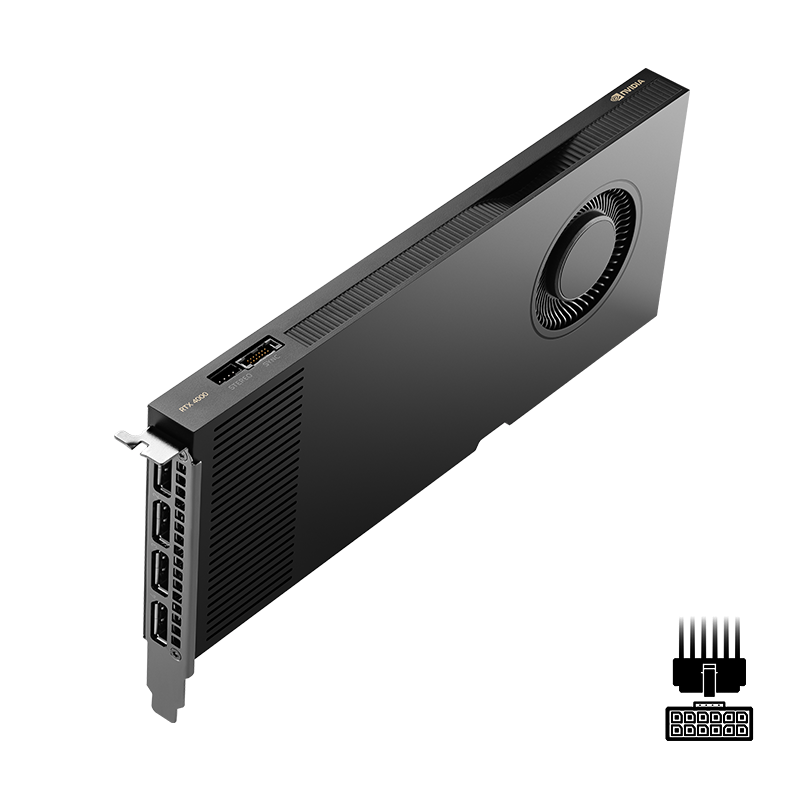

NVIDIA RTX 4000 ADA generation

Catalog number: VCNRTX4000ADA

Graphic card from NVIDIA (PNY) - RTX 4000 ADA generation.

Key features

Single slot, full height
4× DisplayPort 1.4a
NVIDIA RTX Experience™
NVIDIA CUDA Parallel Computing Platform
NVIDIA GPUDirect for Video
HDCP support
Frame Lock (compatible with Quadro Sync II)
NVIDIA Mosaic technology
RoHS compliant

The goods are available.

Product parameters

Manufacturer	PNY
Video output	DisplayPort
GPU Memory	20 GB
Power consumption	130 W
Market	Graphics card
Form Factor	Single slot, full height
Power Input	1x CEM5 16-pin CPU
PCIe/mPCIe/PCI	PCI Express 4.0 x16
Video input	4x DisplayPort 1.4a
Size	111,8 mm × 241,3 mm
Capacity	20 GB
Memory type	GDDR6
Power	130 W

Description:

GPU memory: 20 GB GDDR6 ECC
Architecture: NVIDIA Ada Lovelace
Manufacturing process: 4 nm NVIDIA Custom Process (TSMC)
Transistors: 35.8 billion
CUDA cores: 6,144
Tensor Cores: 192 (4th Generation)
RT Cores: 48 (3rd Generation)
Single-Precision performance: 26.7 TFLOPS
RT Core performance: 61.8 TFLOPS
Tensor performance: 327.6 TFLOPS*
Memory interface: 160-bit
Memory bandwidth: 360 GB/s
System interface: PCI Express 4.0 x16
NVENC / NVDEC: 2× / 2× (incl. AV1 Encode & Decode)
Power consumption: 130 W
Power connector: None (slot powered)
Thermal solution: Active blower
Form factor: Single slot, 4.4" × 9.5"
Product weight: 528 g
NVLink: Not supported

* Effective FP8 TFLOPS using the sparsity feature
