Passive cooler AMD SoC

Catalog number: F5000-C022

F5000-C022
For D3714-R
max 10W TDP

Datasheet
on request
Inquiry

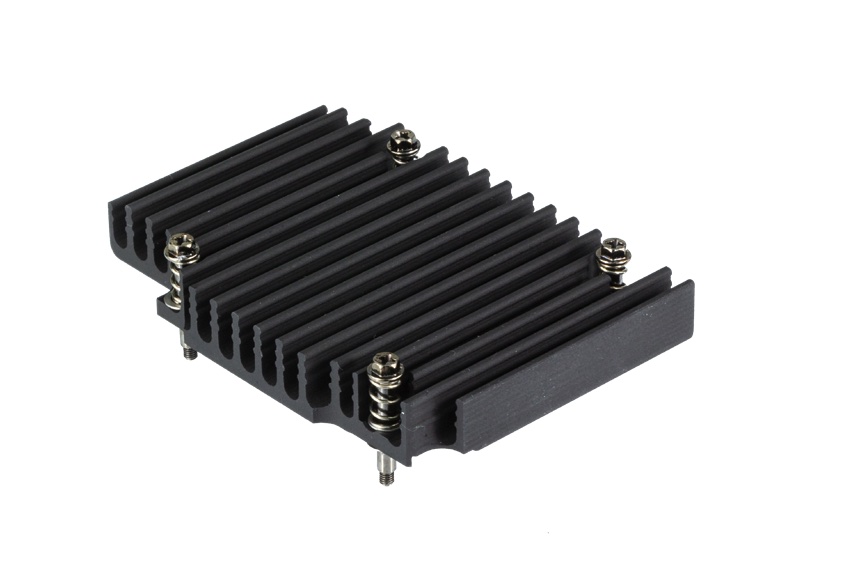

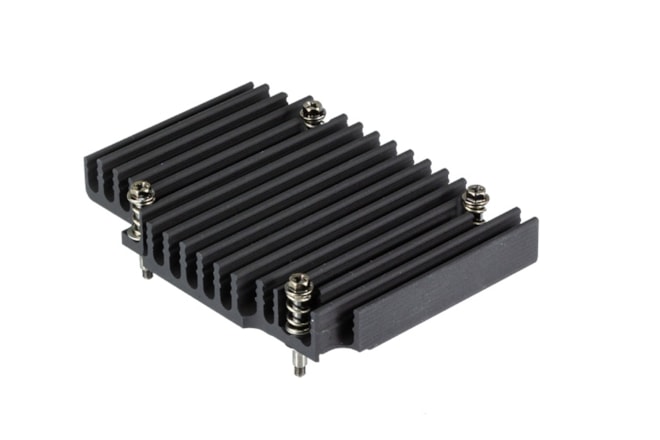

Fanless Heatsink Kit for Mini-STX Motherboard D3714-R

  • Designed for the AMD Ryzen™ Embedded R1000 processor series
  • Full aluminium
  • Max. 10 W TDP
  • Spring-loaded mounting screws for specified downforce
  • Weight: ~ 200g (cooler) + 21 g (backplate)

TECHNICAL INFORMATION

  • RECOMMENDED MOUNTING SCREW TORQUE: max. 0.8 Nm
  • Metal backplate, provides 4 mounting threads for heatsink
  • BACKPLATE MOUNTING HOLES: M3; hole spacing = 61.5 mm x 61.5 mm
  • SUPPORTED MAINBOARDS: D3714-R
