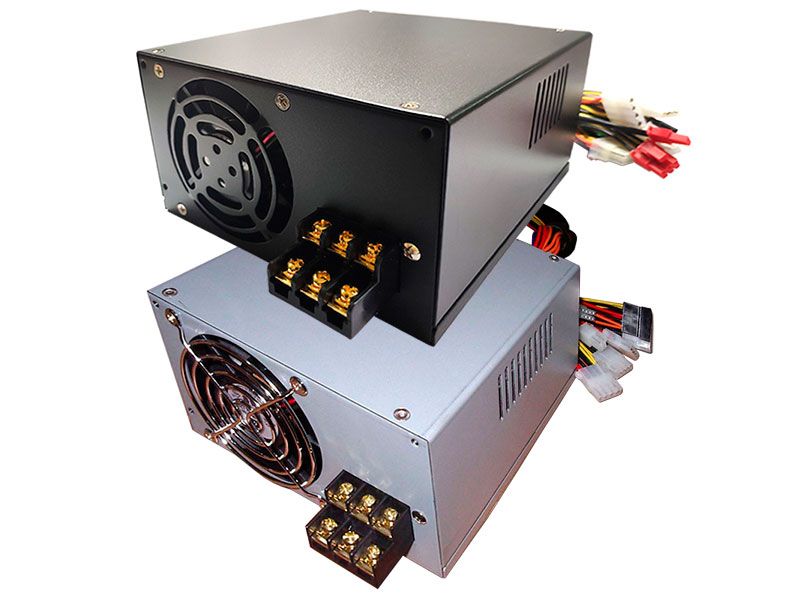

    STC-12500

    Catalog number: STC-12500

    Meet IEC60950-1, EN60950-1

    EMC Standart: EN55032:2015/AC:2016, CISPR32:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010 +A1:2015

    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer STC
    Operating temperature 0~50℃
    Size (L x W x H) 170 x 150 x 86 mm
    Power Input +-12V DC
    Operating temperature 0°C ~ +50°C
    MTBF >90 000 hours @max. Load, 12V DC & 25°C ambient
    Power 500W continuous
    • Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 pc
    • Fan Type: DC type, 2 x Ball Bearing, 4000 r.p.m., Optional Fan Control Card
    • Fan Noise Level: 60dBA @ Full Load (for STC-12200I)
    • Operating Temperature: 0°C ~ +50°C
    • Input connector type:100A/300V UL Approved Gold Plated Brass 1.2t/3+3 Pin Terminal
    • Efficiency 65% typical @12V DC Full Load
    • Standard Output Cable Length: 530 mm
