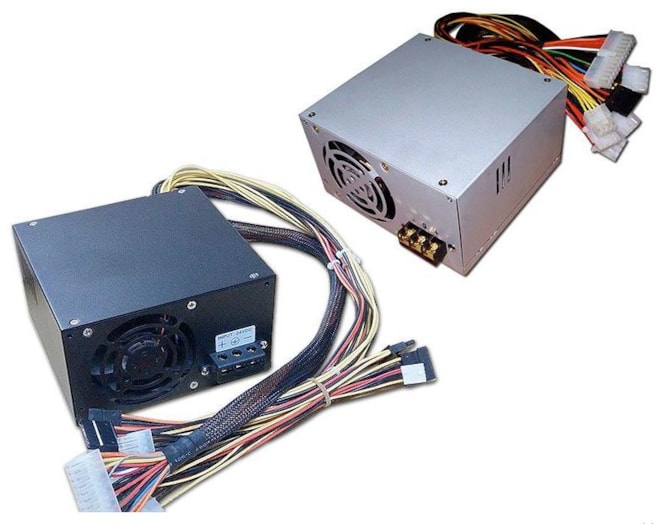

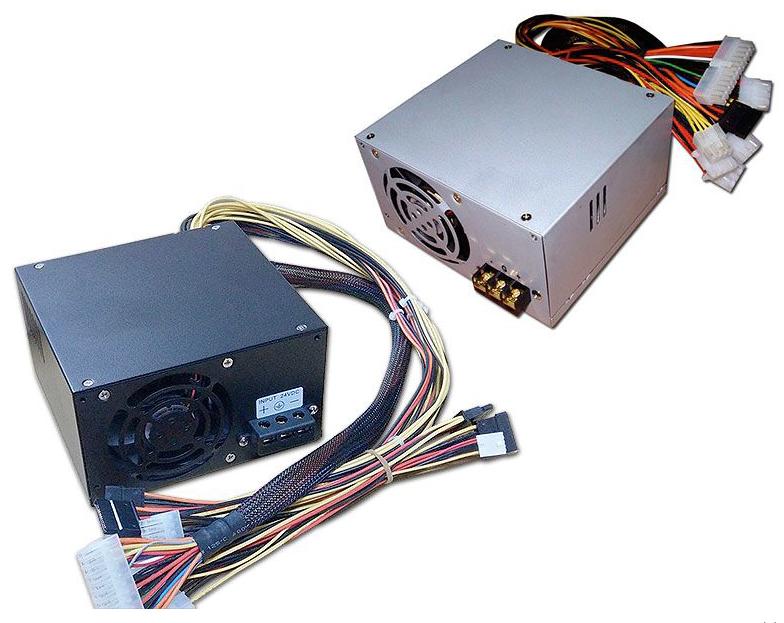

    STC-48500

    Catalog number: STC-48500

    Meet IEC60950-1, EN60950-1

    EMC Standart: EN55032:2015/AC:2016, CISPR32:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010 +A1:2015

    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer STC
    Operating temperature -20°C~60°C
    Size (L x W x H) 140 x 150 x 86mm
    Form Factor ATX
    Power Input +-48V DC
    Operating temperature -20°C ~ +60°C
    MTBF >100 000 hours @max. Load, 48V DC & 25°C ambient
    Power 500W continuous
    • Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 pcs
    • Fan Type: DC type, 2 x Ball Bearing, 4000 r.p.m., with Fan Control Card
    • Operating Temperature: -20°C ~ 60°C
    • Input connector type: 25A/300V UL Approved Gold Plated Brass 1.2t/3-Pin Terminal
    • Efficiency: 70% for 300W-450W & 73% for 500W-550W typical @48V DC Full Load
    • Standard Output Cable Length: 550 mm
