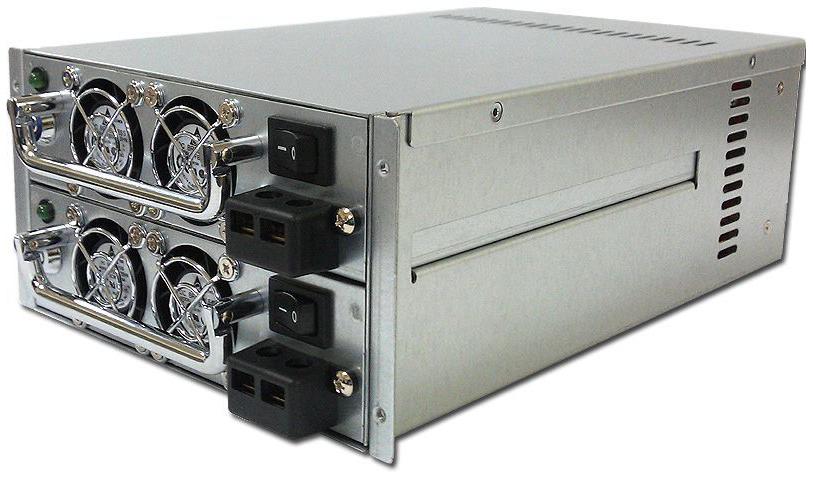

    STC-48600RD

    Catalog number: STC-48600RD

    Meet IEC60950-1, EN60950-1

    EN55032:2015/AC:2016, CISPR32:2015, EN6100-3-2:2014,
    EN6100-3-3:2013, EN55024:2010 +A1:2015

    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer STC
    Operating temperature 0~50℃
    Size (L x W x H) 225 x 150 x 86mm
    Power Input +-48V DC
    Operating temperature 0°C ~ +50°C
    MTBF >100 000 hours @max. Load, 48V DC & 25°C ambient
    Power 600W continuous

    Product description

    • Input: 48V DC/ 600W ATX Form Factor
    • Cooling: Forced Air-cooling, 40x40x28 mm Fan x 2 pc (With Two Ball Bearing)
    • Operating Temperature: 0°C ~ +50°C
    • Input connector type 30A/300V UL approved Gold Plated Brass 1.2t/Pin Terminal
    • Efficiency 82% typical @48V DC Full Load
    • Standard Output Cable Length: 500 mm
