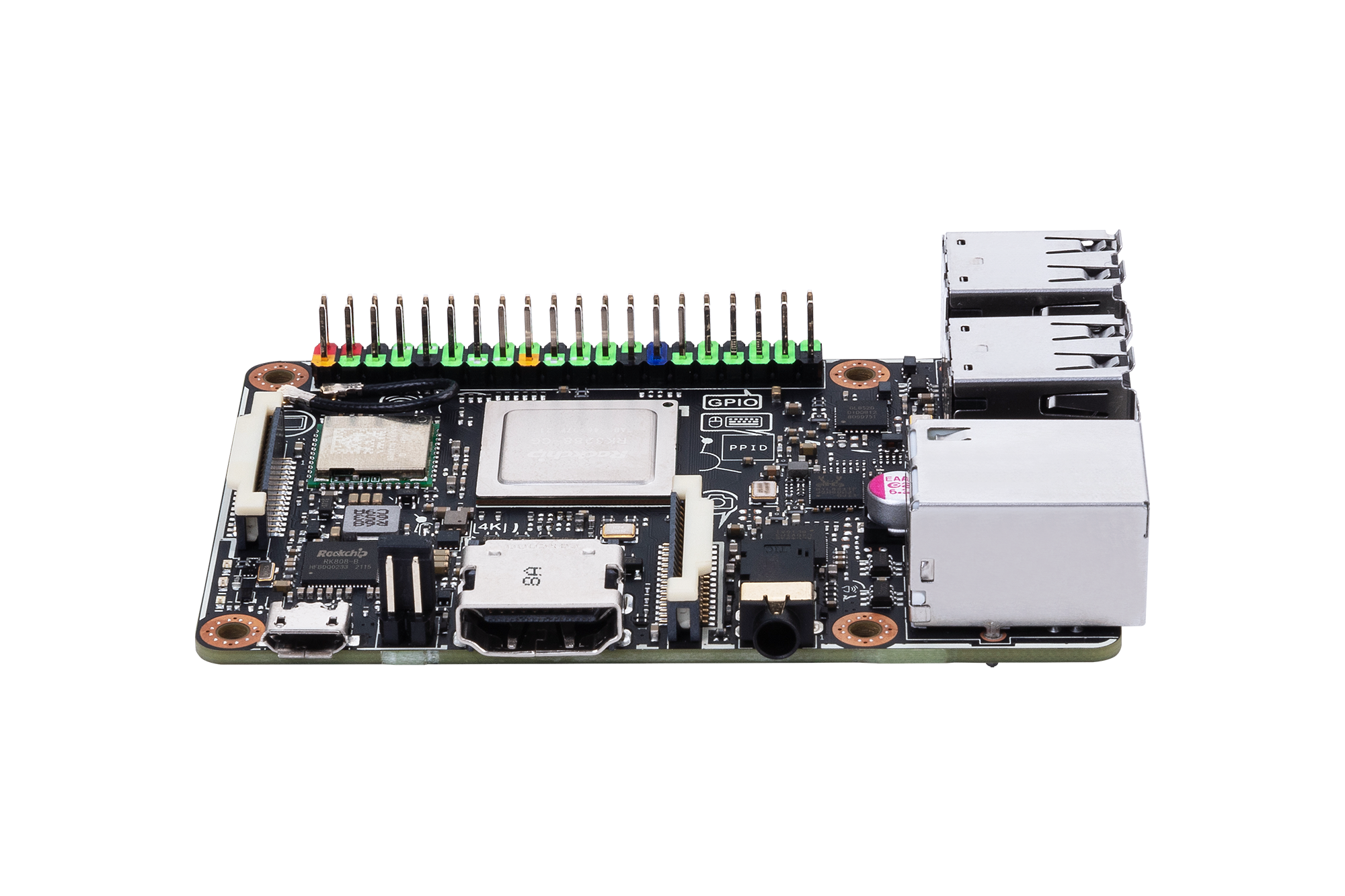

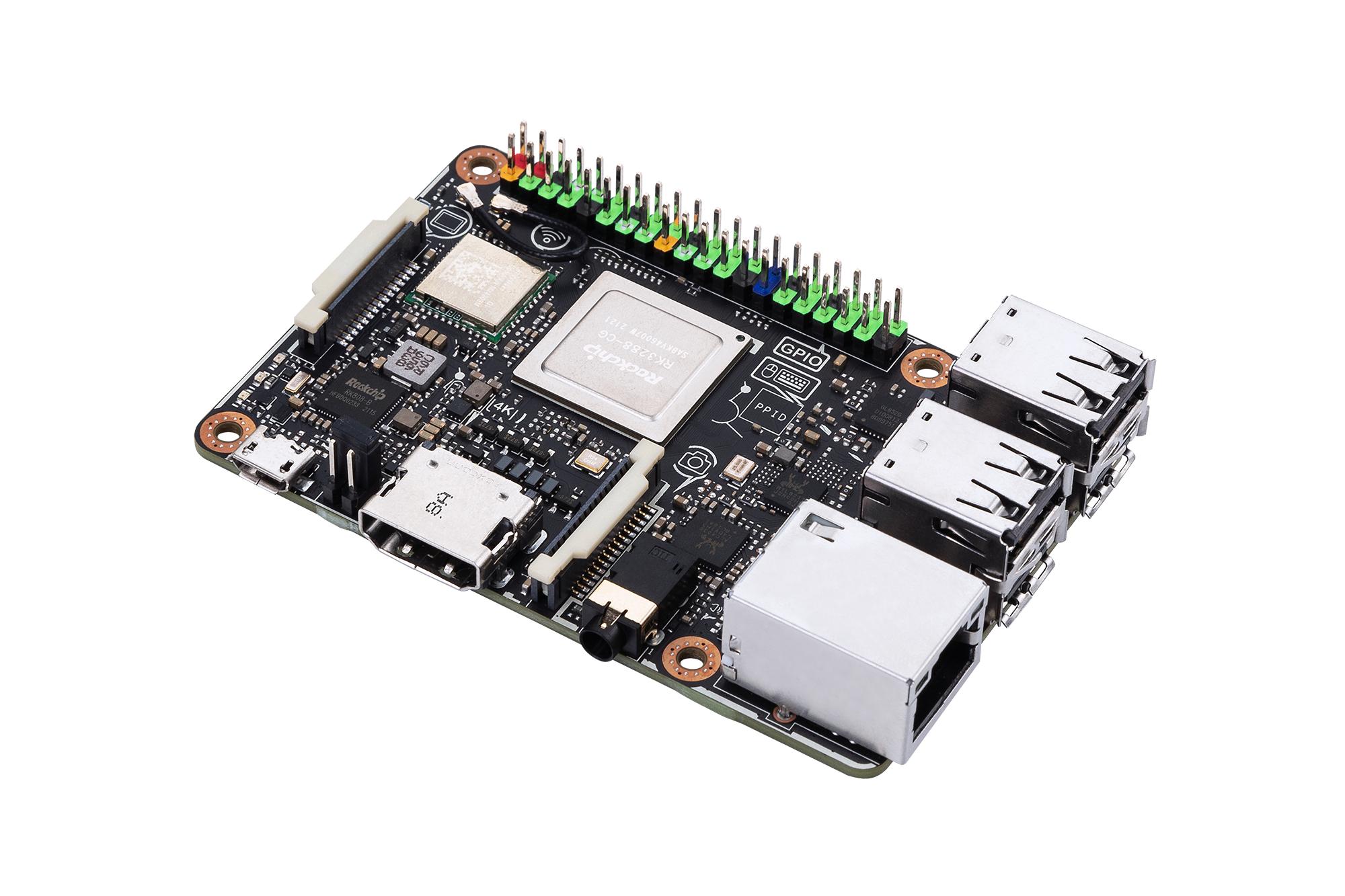

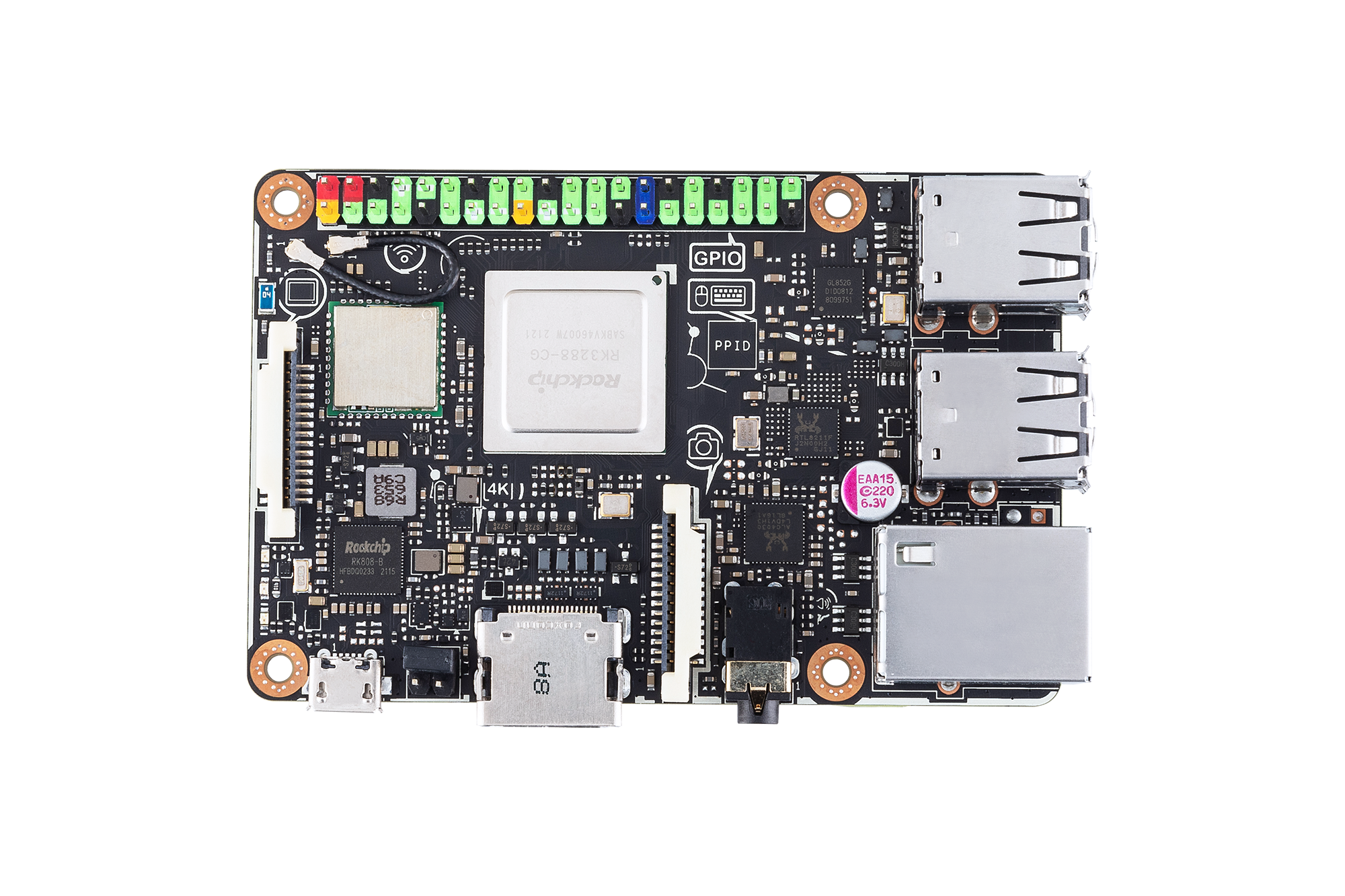

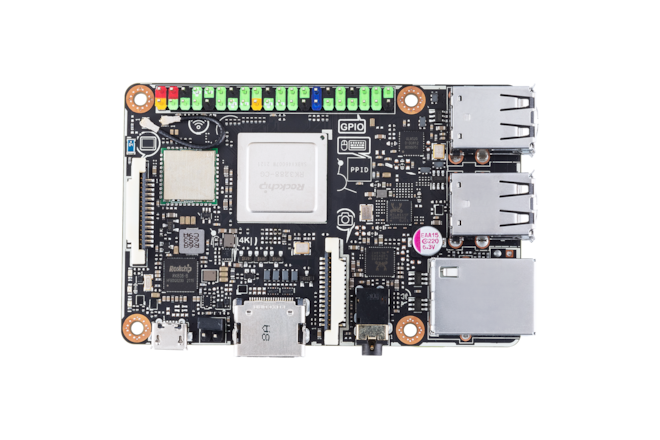

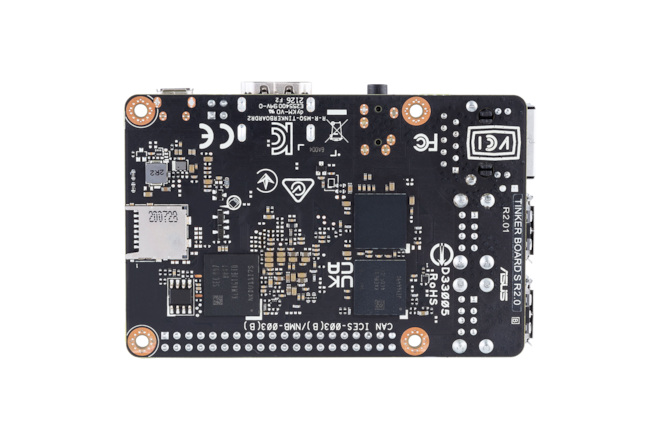

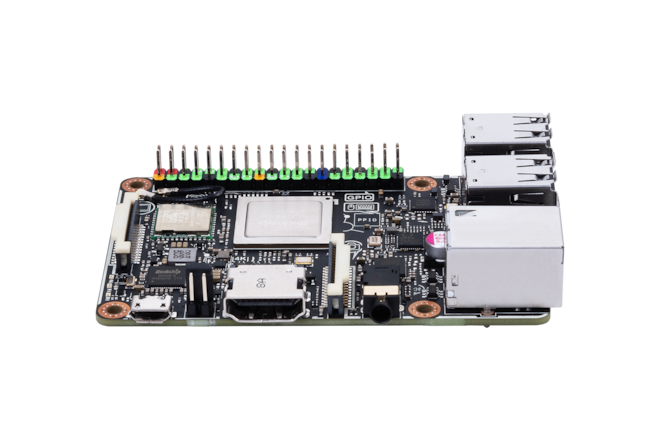

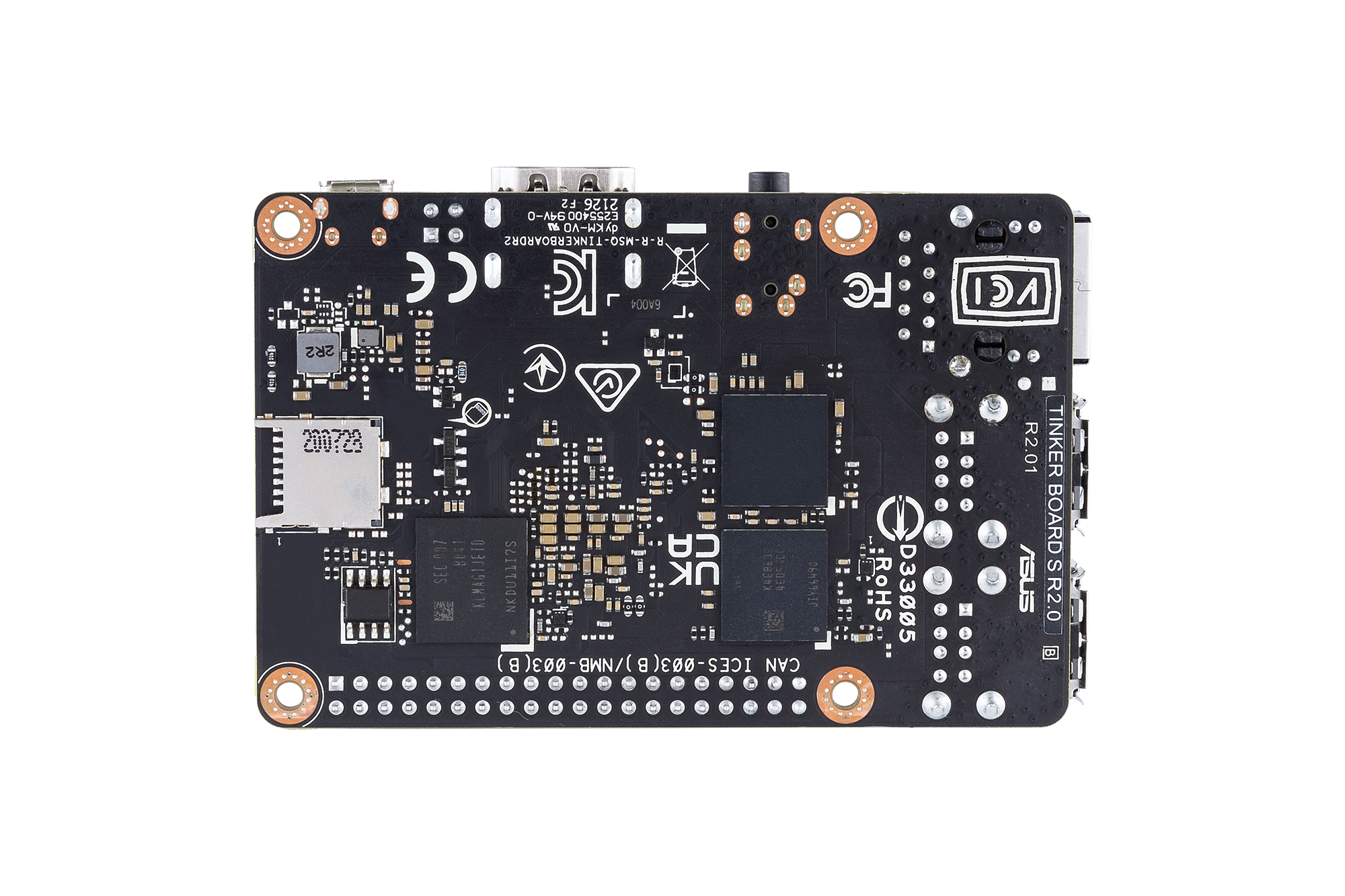

Tinker Board S R2.0

Catalog number: 90ME03H1-M0EAY0

Tinker Board S R2.0

Rockchip QC RK3288-CG.W
16GB, 4x USB, HDMI
WiFi, LAN, Bluetooth
Wide temp 0~60°C

on request
Inquiry

Product parameters

Manufacturer ASUS
Video output HDMI
Power Input DC 5V
Operating temperature 0~60°C
Size (L x W x H) 85 x 56mm
Market Digital Signage, IoT
Power Input DC 5V (Micro USB)
Processor Rockchip Quad-Core RK3288-CG.W
LAN/USB/COM 1x RJ45, 4x USB 2.0
Interface 1x Micro SD slot onboard
Size 85 x 56 mm
Operating temperature 0 ~ +60°C
Memory type LPDDR3

Chipset:

  • Integrated Rockchip

Processor:

  • Rockchip Quad-Core RK3288-CG.W processor, TDP 6.5W
  • Integrated Graphics Processor ARM® Mali™-T764 GPU

Memory:

  • 2GB Dual Channel LPDDR3
  • 16GB eMMC

  • Micro SD(TF) card slot

Product features:

  • WiFi 802.11 b/g/n, Bluetooth V4.2 + EDR
  • Realtek Gb LAN
  • Audio RTL ALC4030U/ALC4040 CODEC, 1x 3.5mm Jack
  • 2x display support
  • 4x USB 2.0, 1x HDMI, 1x 40-pin GPIO header, 1x 15pin MIPI DSI/CSI
  • OS support - Linux Debian 10 / Android 11

Usage:

  • Video Entertainment, audio, media playback, gaming
