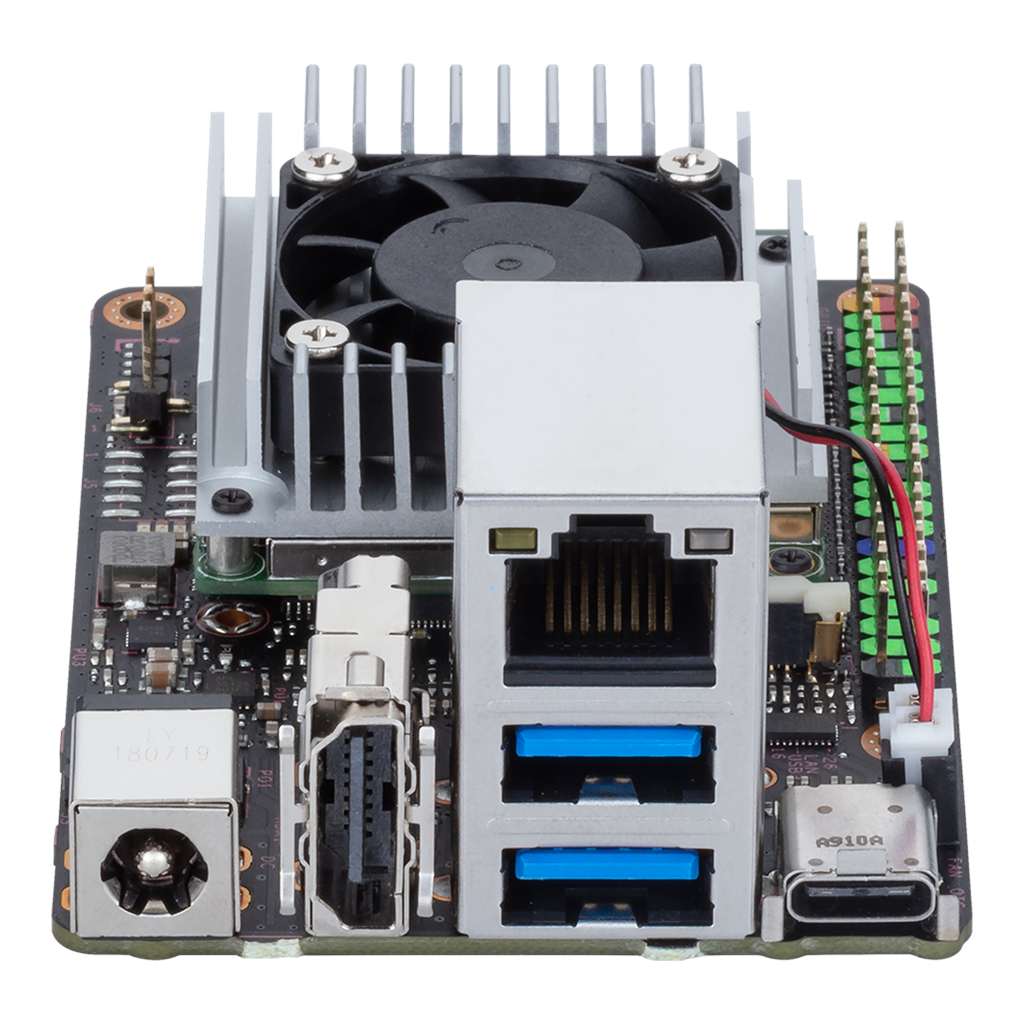

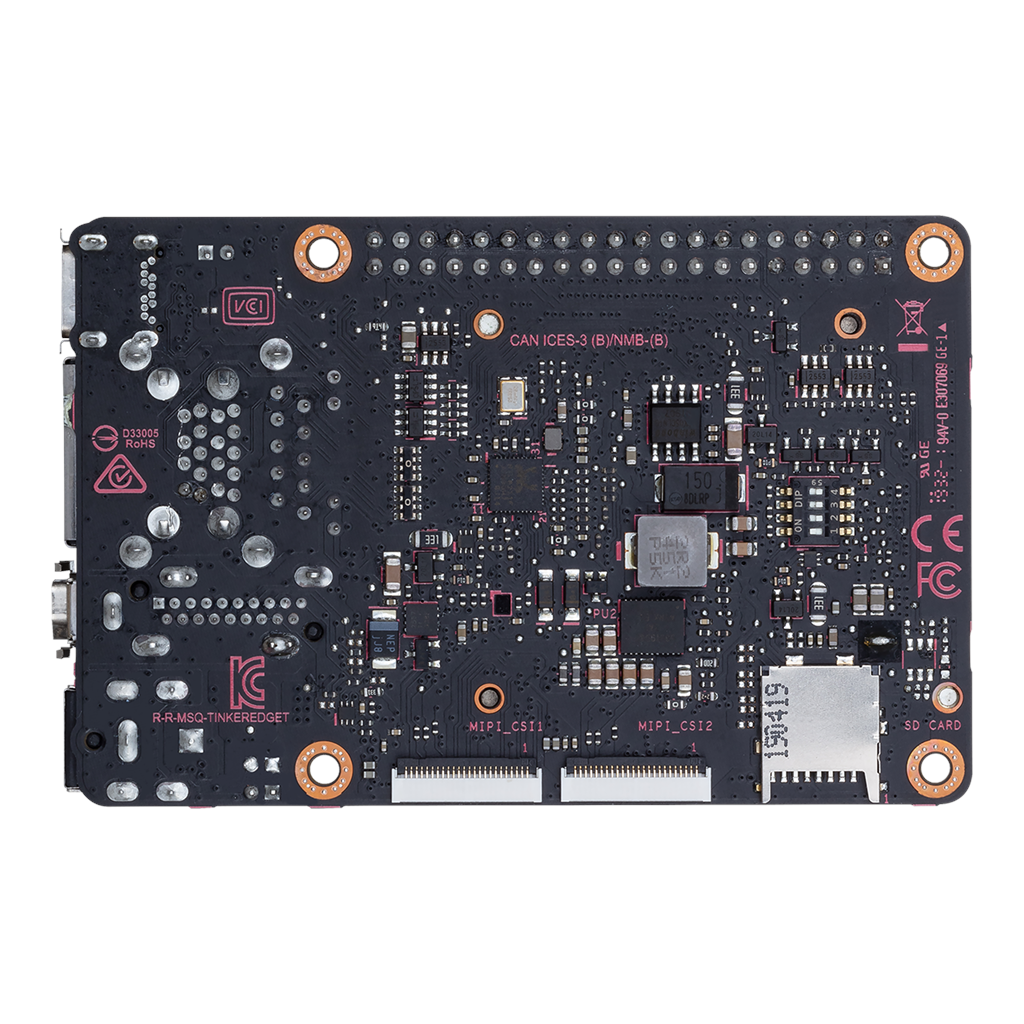

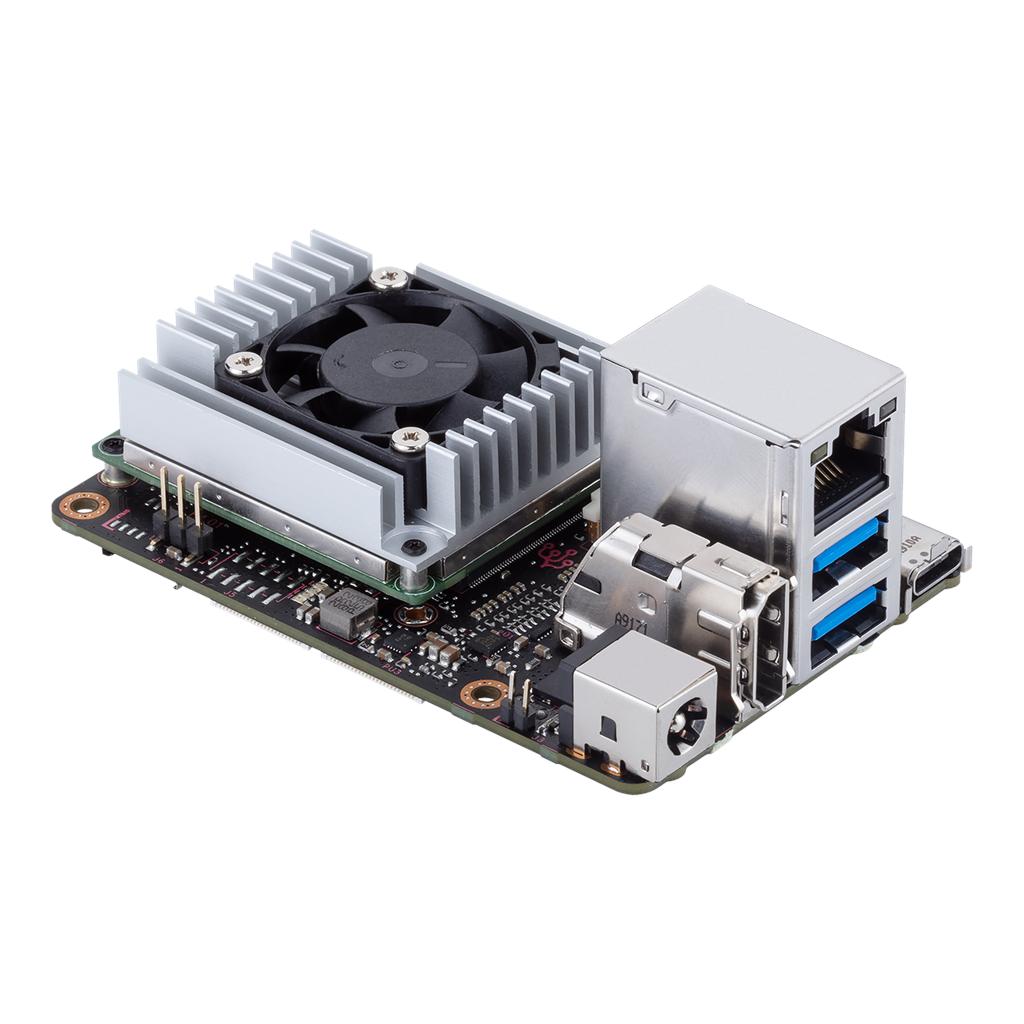

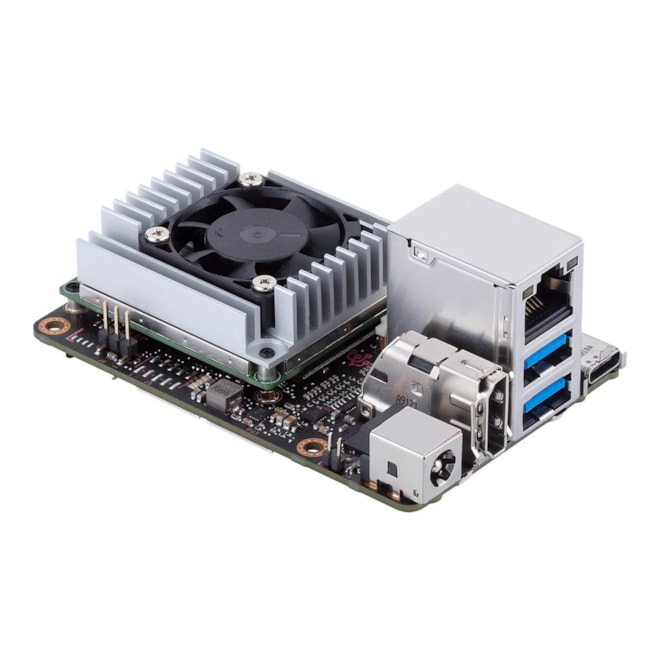

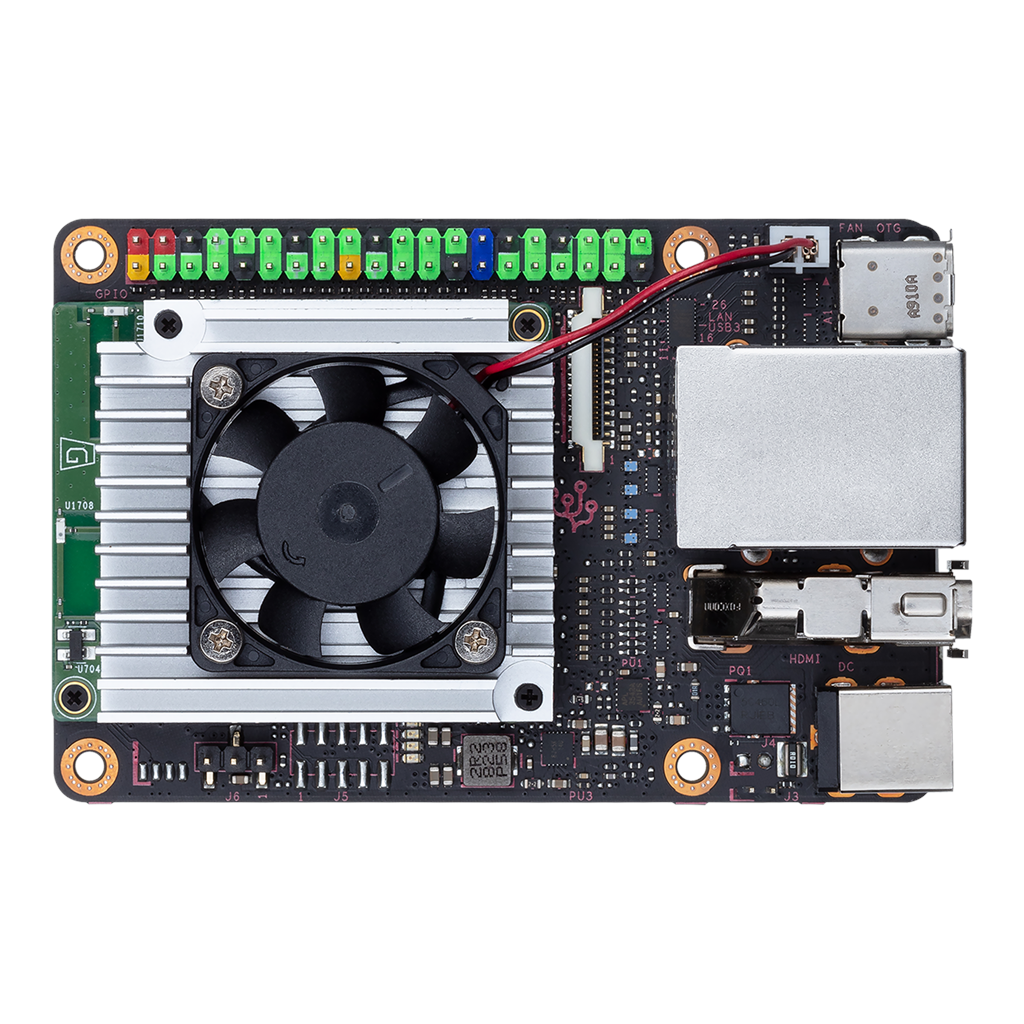

Tinker Edge T

Catalog number: 90ME0140-M0EAY0

Tinker Edge T

NXP QC i.MX 8M
8GB, 3x USB, HDMI
WiFi, LAN, Bluetooth
Temp 0~50°C

on request
Inquiry

Product parameters

Manufacturer ASUS
Video output HDMI
Software support Linux
Power Input DC 12-19V
Operating temperature 0~50℃
Size (L x W x H) 85 x 56mm
Market Digital Signage, IoT
Power Input DC-in 12-19V
Processor NXP i.MX 8M
LAN/USB/COM 1x RJ45, 3x USB 3.2 (1x Type-C)
Interface 1x Micro SD slot onboard
Size 85 x 56 mm
Operating temperature 0 ~ +50°C
Memory type LPDDR4

Processor:

  • NXP QuadCore i.MX 8M SoC, TDP 6W
  • Google Edge TPU ML accelerator coprocessor
  • Integrated Graphics Processor Vivante GC7000 Lite

Memory:

  • 1GB Dual Channel LPDDR4
  • 8GB eMMC

  • Micro SD(TF) card slot

Product features:

  • 802.11 a/b/g/n/ac wireless & Bluetooth 4.2
  • Realtek RTL8211F-CG GbE LAN
  • 2x display support
  • 2x USB 3.2 Gen1, 1x USB 3.2 Gen1 Type-C OTG, 1x HDMI, 1x 40-pin GPIO header, 1x 22-pin MIPI DSI, 2x 24-pin MIPI CSI-2
  • OS support - Linux Debian 9
  • 1x 12~19V DC Power Input Jack (5.5/2.5 mm)

Usage

  • Video Entertainment, audio, media playback, gaming
